English – 9

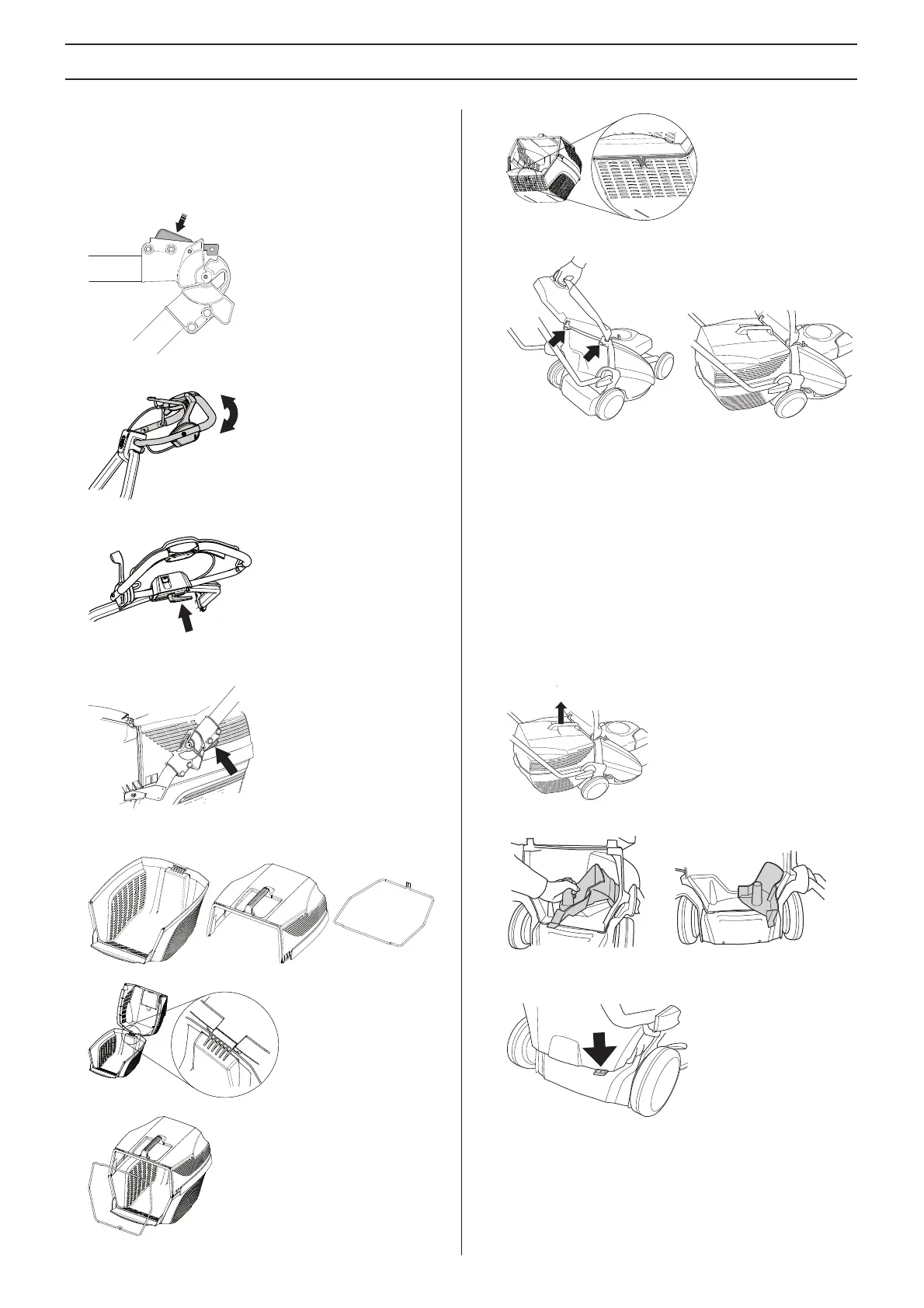

ASSEMBLY
Fitting the handlebar
Take care not to damage the cables and wires when you fold
up the handlebar.
• Hold the lock button on the locking device in and fold up
the handle.
• Adjust the height of the top part of the handlebar.
• Screw on the handle with the knob.
• To collapse the handle, hold the lock button in and fold
down the handle.
Assembly of the catcher (not LB48e)
• Lift the hind shield and suspend the grass container.
Side ejection
• LB48e can be used with side ejection by fitting the side
ejector on the cutting cover.
• Lift up the side cover and place the side ejector on the
shaft.
Mulching function
LB48e is a lawn mower with mulching function.
Machines equipped with a catcher can be used with mulching
function in the following way.
• Lift up the back shield and remove the container.
• Insert the mulching plug into the collector channel.
• Close the shield and ensure that it is locked with the
mulching plug.
