Husqvarna PZ 60 - Baffle Attachment

P/N 115 247027 R1
08/15/09
INSTALLATION INSTRUCTIONS

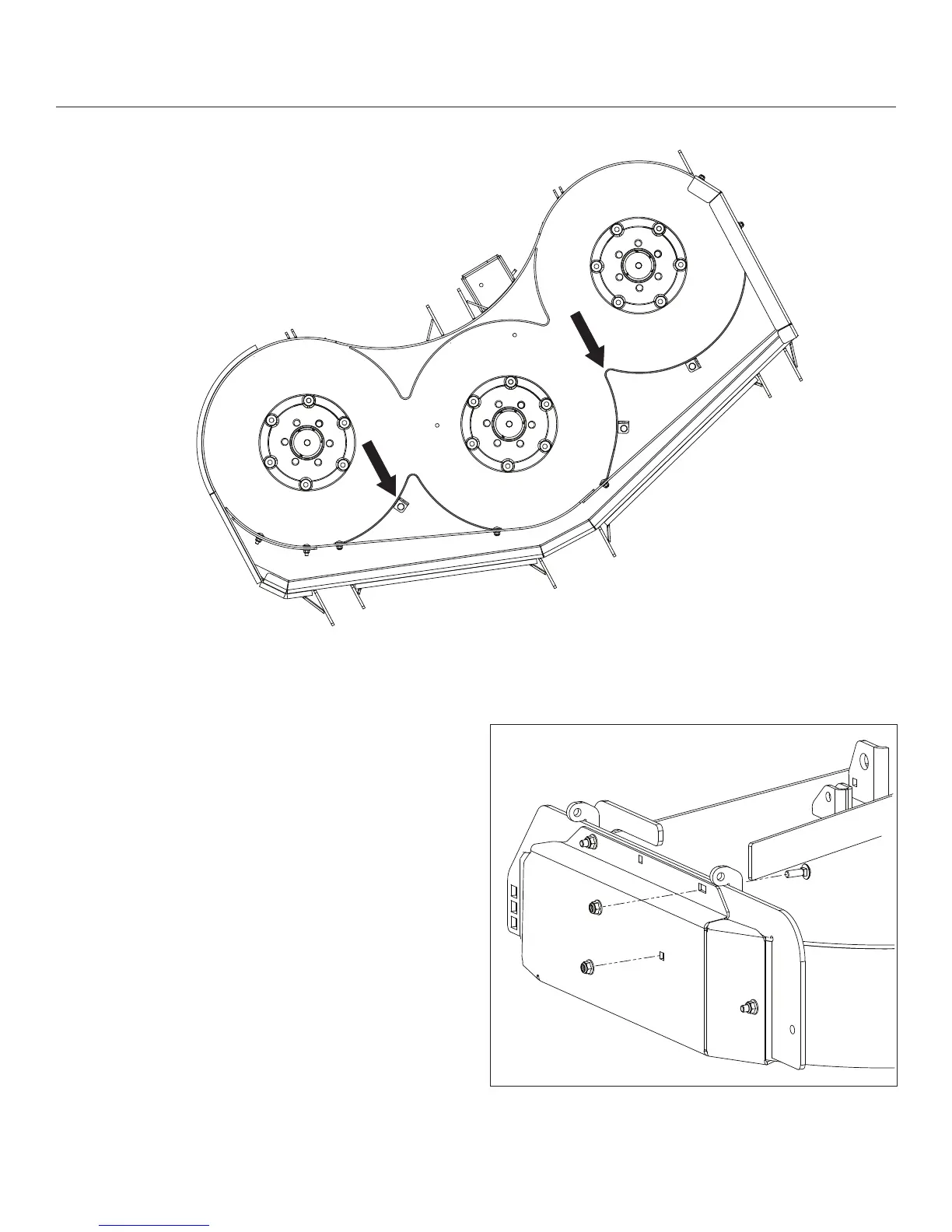

Set the left hand bafe in place, with weld bolt up 5.
through the deck. Secure bafe to deck with nuts
and bolts as shown. Attach right hand bafe with
the same procedure.
Fasten the mulch cap to the deck and bafe. 6.
