English – 35
2
1
6017-225
6017-226
6017-227
8009-438
MAINTENANCE RIDER 11 BIO/13 BIO

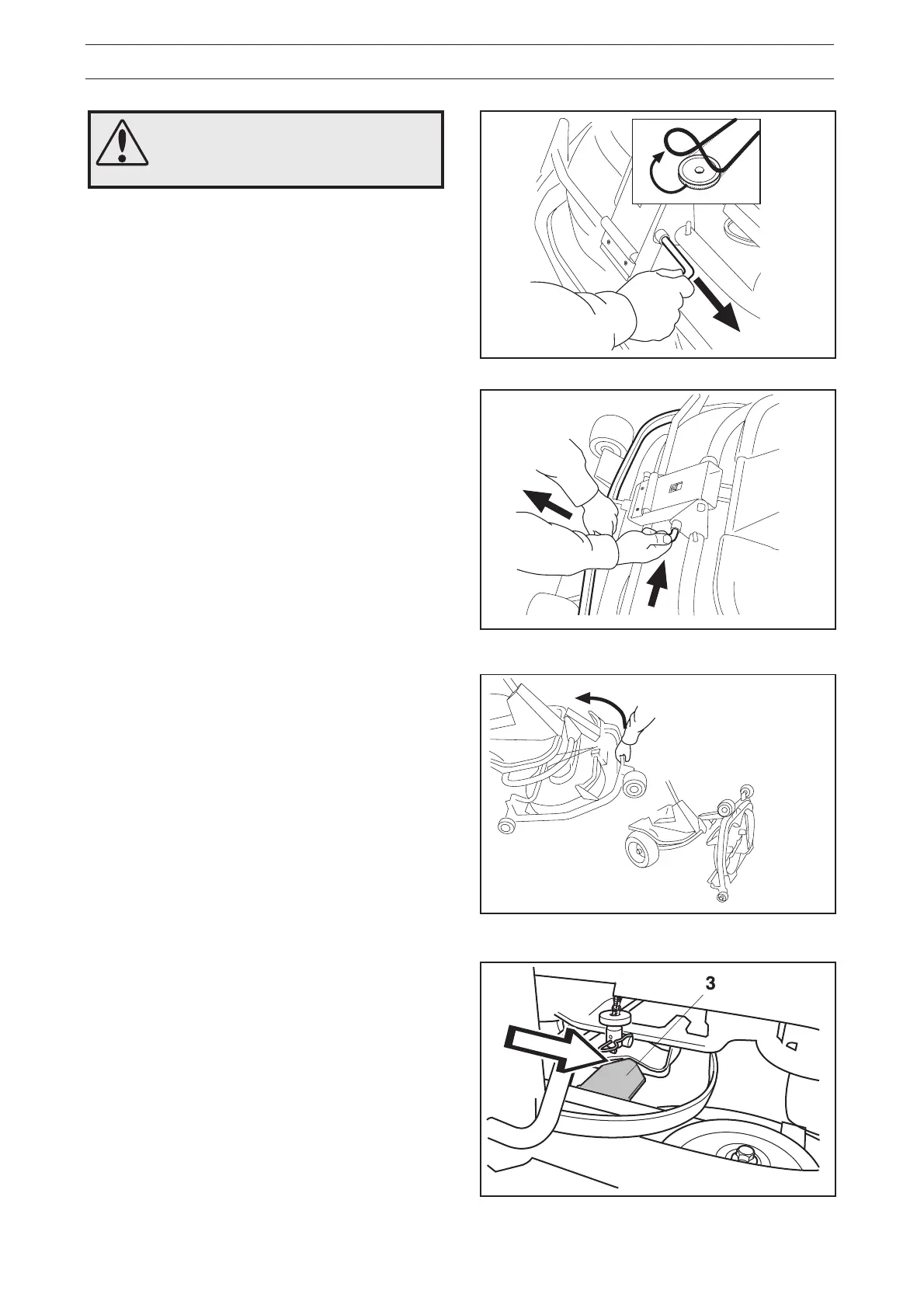

8. Lift off the drive belt (1).
Then pull out the pin (2).
9. Pull the frame forwards and refit the pin.
10. Grasp the front edge of the cutting unit, pull out
and raise into the service position.
If the cylindrical bolt, which is now holding the
cutting unit is removed, the cutting unit can be
lifted off.
Restoring from service position
To leave the service position, reverse the
procedures set out in ”Placing in the service
position”. Make sure that the cutting unit’s “lug” (3)
enters the loop correctly on the underside of the
machine, see diagram.
WARNING!
Take care not to get your hand
trapped.
