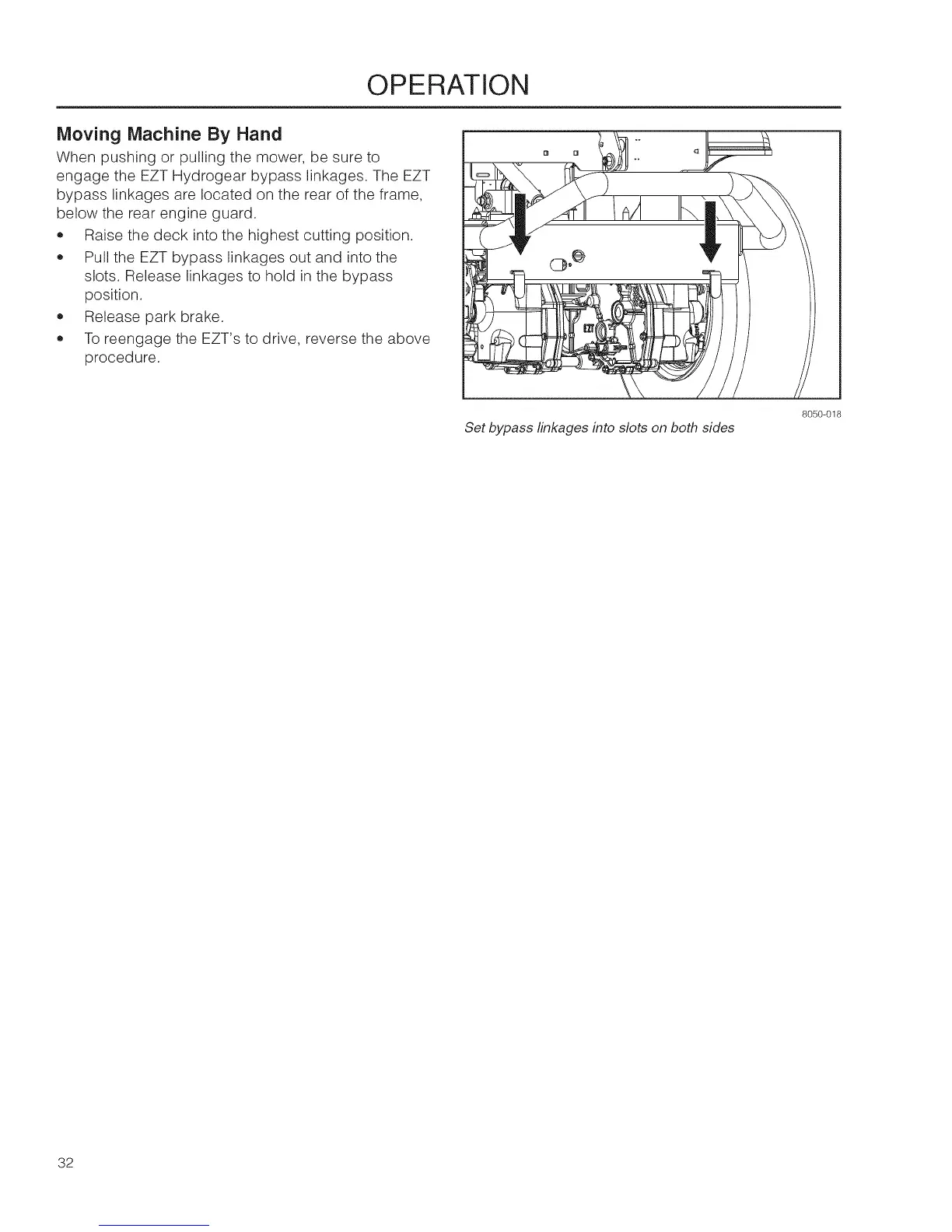

OPERATION
Moving Machine Ely Hand
When pushing or pulling the mower, be sure to
engage the EZT Hydrogear bypass linkages. The EZT
bypass linkages are located on the rear of the frame,
below the rear engine guard,
• Raise the deck into the highest cutting position.
• Pull the EZT bypass linkages out and into the
slots, Release linkages to hold in the bypass
position,
• Release park brake.
• To reengage the EZT's to drive, reverse the above
procedure,
Set bypass linkages into slots on both sides
8050-018
32
