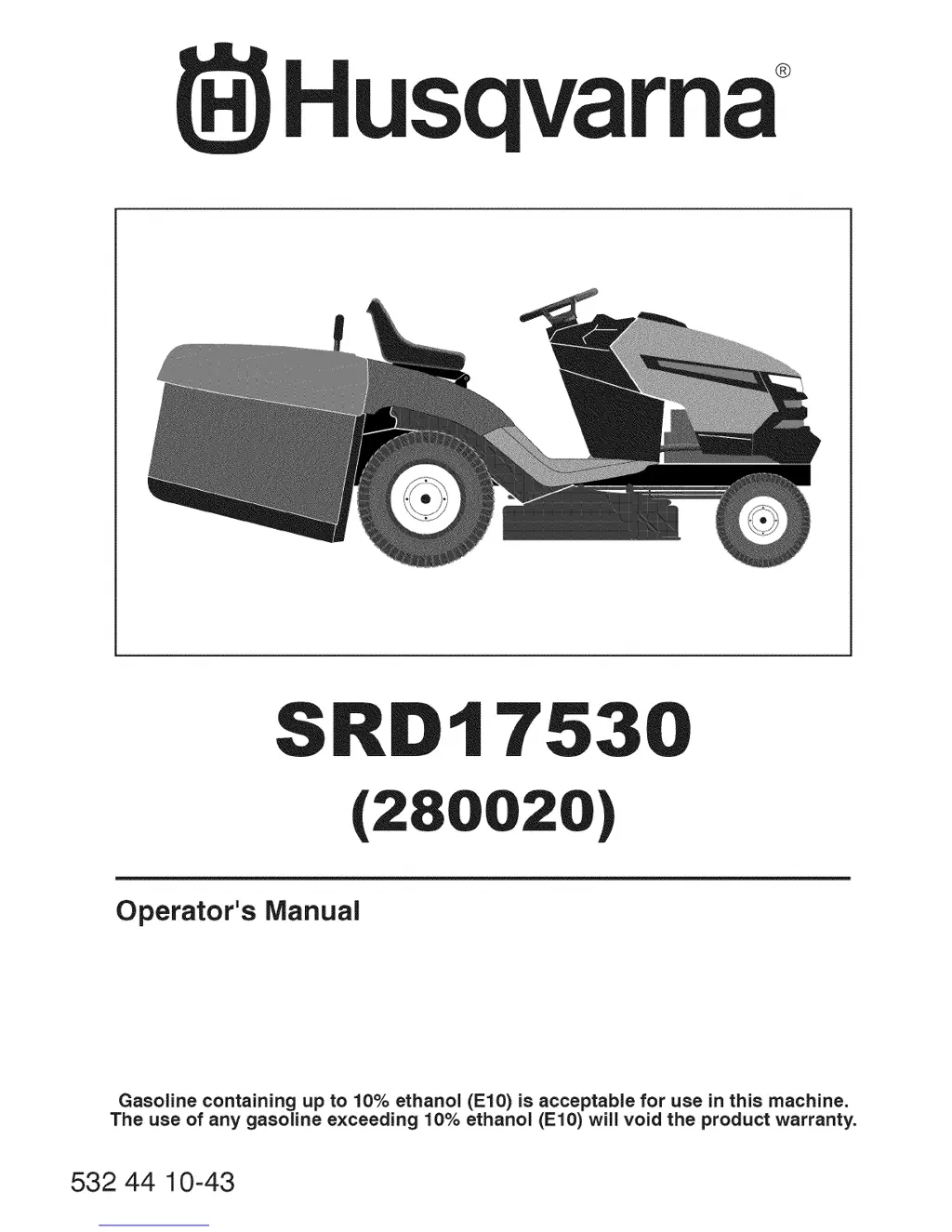

Husqvarna SRD17530 - User Manual

Questions and Answers

S
Shelley GuzmanAug 20, 2025
Why Husqvarna SRD17530 Lawn Mower will not start?
- S
  Susan OrtegaAug 20, 2025
  Your Husqvarna Lawn Mower might not start due to several reasons. It could be out of fuel, so fill the fuel tank. The engine may not be choked properly, refer to the “TO START ENGINE” section in the Operation section. If the engine is flooded, wait a few minutes before trying again. Other potential causes include a bad spark plug (replace it), a dirty air filter (clean or replace it), a dirty fuel filter (replace it), water in the fuel (empty the tank, carburetor, refill with fresh gasoline, and replace the fuel filter), loose or damaged wiring (check all wiring), a carburetor out of adjustment (refer to the “To Adjust Carburetor” section in Service Adjustments), or engine valves out of adjustment (contact an authorized service center/department).
A
Anthony ThomasAug 25, 2025
What to do if Husqvarna SRD17530 Lawn Mower engine will not turn over?
- R
  Rebecca HuynhAug 25, 2025
  If the engine of your Husqvarna Lawn Mower won't turn over, make sure the clutch/brake pedal is depressed. Also, ensure the attachment clutch is disengaged. Other possible reasons include a weak or dead battery (recharge or replace it), a blown fuse (replace it), corroded battery terminals (clean them), loose or damaged wiring (check all wiring), a faulty ignition switch (check or replace it), a faulty solenoid or starter (check or replace them), or faulty operator presence switch(es).
L
Lori HoustonAug 26, 2025
Why does Husqvarna SRD17530 engine "back-fires” when turning engine “OFF”?
- D
  David HansenAug 26, 2025
  If your Husqvarna Lawn Mower engine backfires when turning it off, it's likely because the engine throttle control was not set between half and full speed (fast) position before stopping the engine. To prevent this, move the throttle control between half and full speed (fast) position before stopping the engine.
N
Noah LewisAug 28, 2025
What to do if Husqvarna Lawn Mower has poor cut - uneven?
- M
  Michelle WilcoxAug 28, 2025
  An uneven cut with your Husqvarna Lawn Mower can result from a worn, bent, or loose blade (replace the blade and tighten the blade bolt), a mower deck that is not level (level the mower deck), buildup of grass, leaves, and trash under the mower (clean the underside of the mower housing), a bent blade mandrel (replace the blade mandrel), or clogged mower deck vent holes from buildup of grass, leaves, and trash around mandrels (clean around mandrels to open vent holes).
J
Jennifer RiceAug 30, 2025
Why Husqvarna Lawn Mower battery will not charge?
- S
  Stephen WilsonAug 30, 2025
  If your Husqvarna Lawn Mower battery isn't charging, it could be due to bad battery cells (replace the battery), poor cable connections (check and clean all connections), a faulty regulator (replace the regulator), or a faulty alternator (replace the alternator).
R
richard95Sep 1, 2025
What to do if Husqvarna Lawn Mower is hard to start?
- T
  Taylor MathisSep 1, 2025
  If your Husqvarna Lawn Mower is hard to start, check these potential causes: a dirty air filter (clean or replace it), a bad spark plug (replace it), a weak or dead battery (recharge or replace it), a dirty fuel filter (replace it), stale or dirty fuel (empty the tank and refill with fresh, clean gasoline), loose or damaged wiring (check all wiring), a carburetor out of adjustment, or engine valves out of adjustment.
D
Daniel MclaughlinSep 3, 2025
What to do if Husqvarna Lawn Mower engine clicks but will not start?
- L
  larry98Sep 3, 2025
  If your Husqvarna Lawn Mower engine clicks but doesn't start, it could be due to a weak or dead battery (recharge or replace it), corroded battery terminals (clean them), loose or damaged wiring (check all wiring), or a faulty solenoid or starter (check or replace them).
H
hayersSep 5, 2025
How to fix excessive vibration in Husqvarna Lawn Mower?
- M
  Melissa SwansonSep 5, 2025
  Excessive vibration in your Husqvarna Lawn Mower can be caused by a worn, bent, or loose blade (replace the blade and tighten the blade bolt), a bent blade mandrel (replace the blade mandrel), or loose or damaged parts (tighten loose parts and replace damaged parts).
D
david62Sep 7, 2025
What to do if Husqvarna SRD17530 blades will not rotate?
- J
  jesse80Sep 7, 2025
  If the blades on your Husqvarna Lawn Mower won't rotate, there might be an obstruction in the clutch mechanism (remove the obstruction), a worn or damaged mower drive belt (replace the mower drive belt), a frozen idler pulley (replace the idler pulley), or a frozen blade mandrel (replace the blade mandrel).
G
gbradleySep 12, 2025
Why Husqvarna SRD17530 engine dies when tractor is shifted into reverse?
- S
  Sarah GambleSep 12, 2025
  If the engine of your Husqvarna Lawn Mower dies when shifted into reverse, it's likely because the Reverse Operation System (ROS) is not "ON" while the mower or other attachment is engaged. Turn the ignition key to the ROS "ON" position.

Summary

Safety Rules

General Operation

Instructions for safe and proper operation of the tractor.

Slope Operation

Precautions and procedures for safe operation on slopes.

Children

Safety measures to prevent child-related accidents.

Towing

Safe Gasoline Handling

Procedures for safely handling gasoline and preventing hazards.

Assembly

Operation

How to Use Your Tractor

Set Parking Brake

Correct procedure for engaging and disengaging the parking brake.

Stopping

Instructions on how to safely stop the tractor and its attachments.

Adjust Mower Cutting Height

Setting the desired cutting height for the mower deck.

Operate on Hills

Safety guidelines and techniques for operating the tractor on sloped terrain.

Before Starting the Engine

Reverse Operation System (ROS)

Understanding and using the Reverse Operation System safely.

Start Engine

Step-by-step guide for starting the tractor's engine.

Mowing Tips

Maintenance

Maintenance Schedule

Recommended maintenance tasks and intervals for the tractor.

Before Each Use

Operator Presence & ROS Systems

Engine Lubrication

Change Engine Oil

Step-by-step instructions for changing the engine oil.

Service and Adjustments

Level Mower

Replace Mower Blade Drive Belt

Start Engine with Weak Battery

Storage

Engine Fuel System

Troubleshooting

Will Not Start

Common causes and corrections for an engine that won't start.

Poor Cut - Uneven

Mower Blades Will Not Rotate

Solutions for when the mower blades fail to spin.

Loss of Drive

Suggested Guide for Sighting Slopes for Safe Operation

Husqvarna SRD17530 Specifications

General

Engine	Briggs & Stratton
Engine Displacement	125 cc
Engine Type	4-Cycle
Deck Material	Steel
Mulching Capability	Yes
Cutting Width	17 inches
Wheel Size	7 in (front) / 7 in (rear)
Warranty	2 years
