Husqvarna TE 570 Supermoto User Manual

N° 8000A1661 (03-03)
M.9

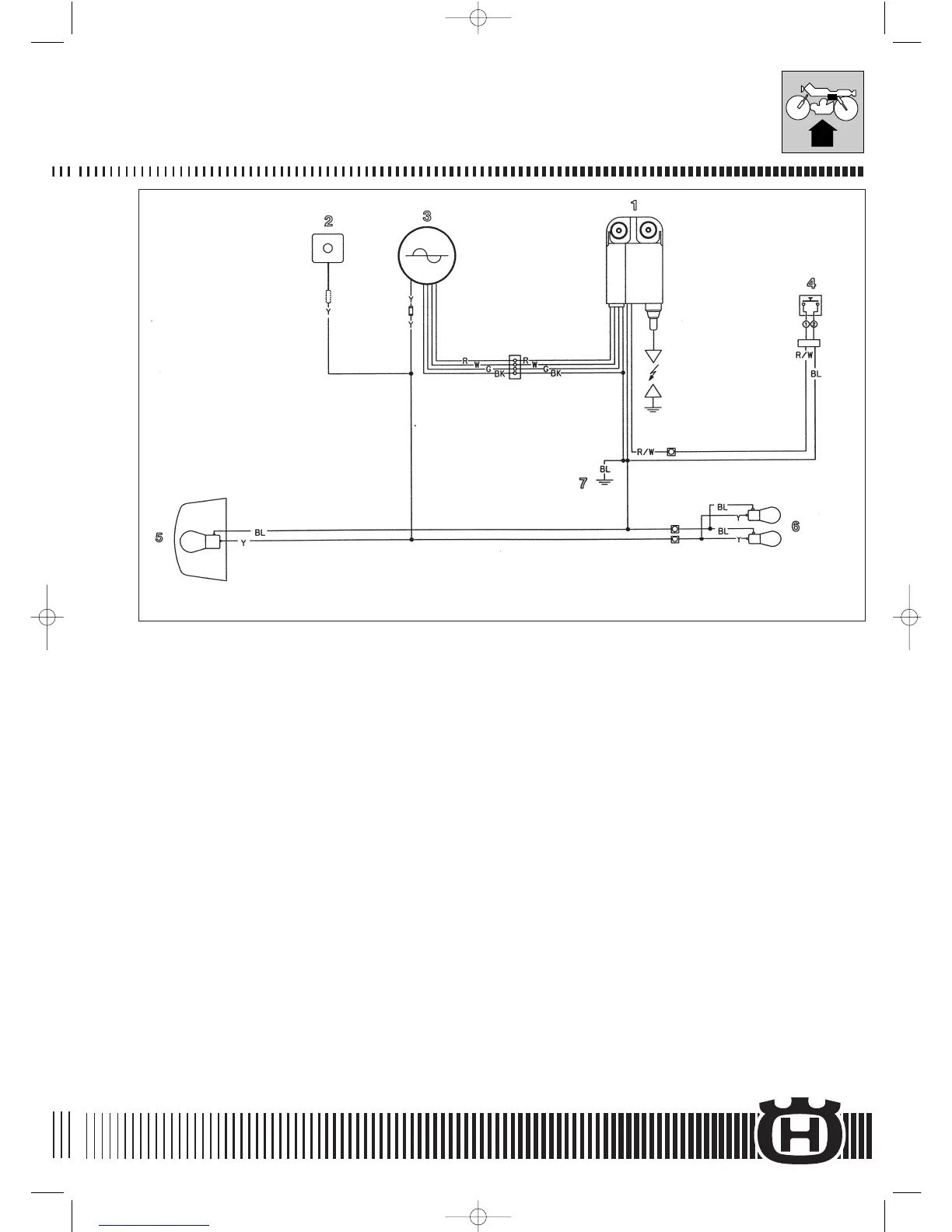

IMPIANTO ELETTRICO
ELECTRIC SYSTEM
INSTALLATION ELECTRIQUE
ELEKTRISCHE ANLAGE
INSTALACION ELECTRICA
+-
1 - Spark coil/Electronic module
2 - Voltage regulator
3 - Alternator
4 - Engine stop button
5 - Head lamp (12V-20/20W)
6 - Tail light (12V-3W)
7 - Ground
8 - Spark plug
BK - Black
BL - Blue
G - Green
Y - Yellow
R - Red
R/W- Red/White
W - White
TE - “KIT ENDURO” USA
8
IMP. M 11-06-2003 9:48 Pagina M.9
