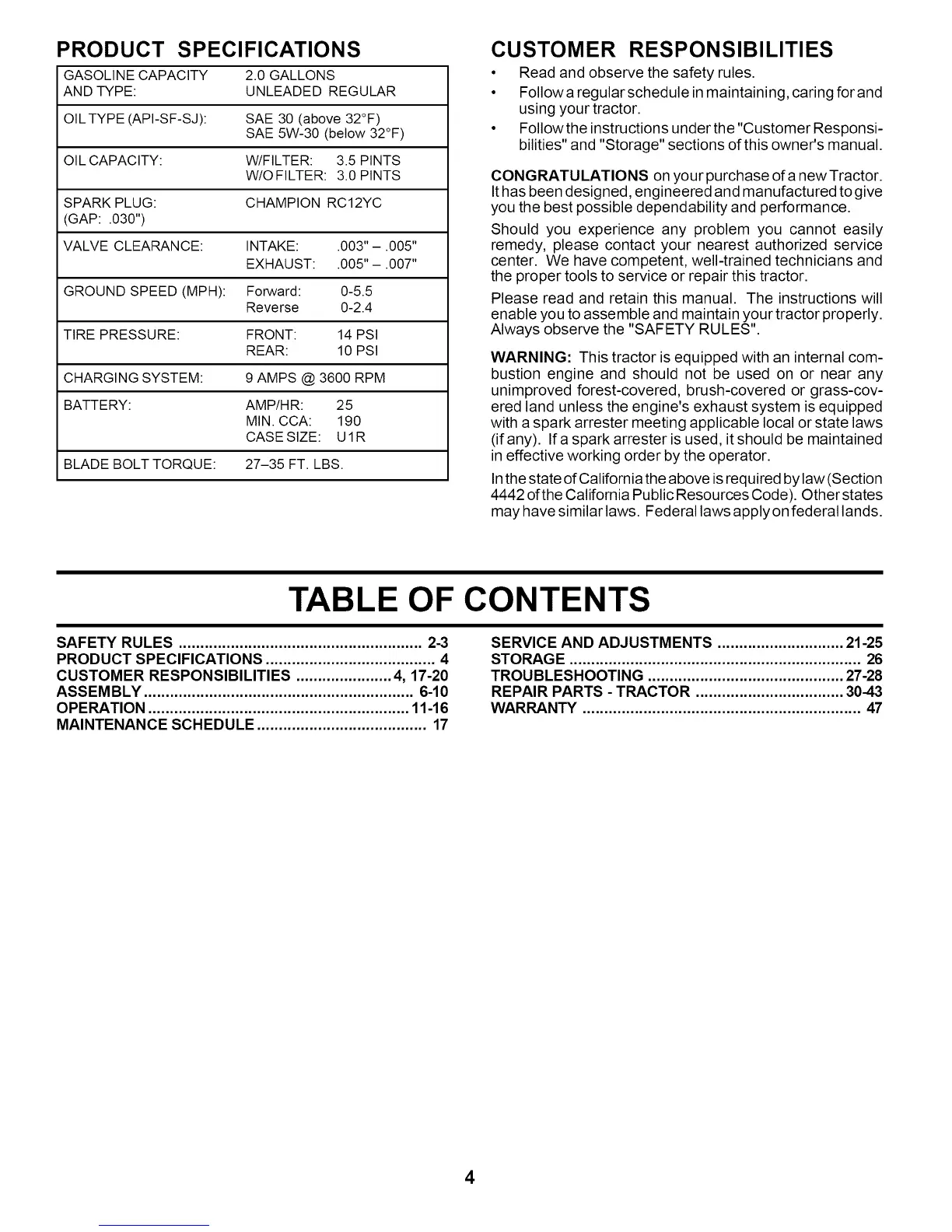

PRODUCT SPECIFICATIONS
GASOLINE CAPACITY 2.0 GALLONS
AND TYPE: UNLEADED REGULAR
OILTYPE (API-SF-SJ): SAE 30 (above 32°F)
SAE 5W-30 (below 32°F)
OILCAPACITY: W/FILTER: 3.5 PINTS
W/OFILTER: 3.0 PINTS
SPARK PLUG: CHAMPION RC12YC
(GAP: .030")
VALVE CLEARANCE: INTAKE: .003"-.005"
EXHAUST: .005" - .007"
GROUND SPEED (MPH): Forward: 0-5.5
Reverse 0-2.4
TIRE PRESSURE: FRONT: 14 PSI
REAR: 10 PSI
CHARGINGSYSTEM: 9 AMPS @ 3600 RPM
BATTERY: AMP/HR: 25
MIN. CCA: 190
CASESIZE: U1R
BLADEBOLT TORQUE: 27-35 FT. LBS.
CUSTOMER RESPONSIBILITIES
• Read and observe the safety rules.
• Follow a regular schedule in maintaining, caring for and
using your tractor.
• Follow the instructions under the "Customer Responsi-
bilities" and "Storage" sections of this owner's manual.
CONGRATULATIONS on your purchase of a new Tractor.
Ithas been designed, engineered and manufactured to give
you the best possible dependability and performance.
Should you experience any problem you cannot easily
remedy, please contact your nearest authorized service
center. We have competent, well-trained technicians and
the proper tools to service or repair this tractor.
Please read and retain this manual. The instructions will
enable you to assemble and maintain your tractor properly.
Always observe the "SAFETY RULES".
WARNING: This tractor is equipped with an internal com-
bustion engine and should not be used on or near any
unimproved forest-covered, brush-covered or grass-cov-
ered land unless the engine's exhaust system is equipped
with a spark arrester meeting applicable local or state laws
(if any). If a spark arrester is used, it should be maintained
in effective working order by the operator.
Inthe state of California the above is required by law (Section
4442 ofthe California Public Resources Code). Otherstates
may have similar laws. Federal laws apply on federal lands.
TABLE OF CONTENTS
SAFETY RULES ........................................................ 2-3
PRODUCT SPECIFICATIONS ....................................... 4
CUSTOMER RESPONSIBILITIES ...................... 4, 17-20
ASSEMBLY .............................................................. 6-10
OPERATION ............................................................ 11-16
MAINTENANCE SCHEDULE ....................................... 17
SERVICE AND ADJUSTMENTS ............................. 21-25
STORAGE ................................................................... 26
TROUBLESHOOTING ............................................. 27-28
REPAIR PARTS - TRACTOR .................................. 30-43
WARRANTY ................................................................ 47
4
