Husqvarna YTH2042 - Wheels and Tires; Repair Parts

26
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex

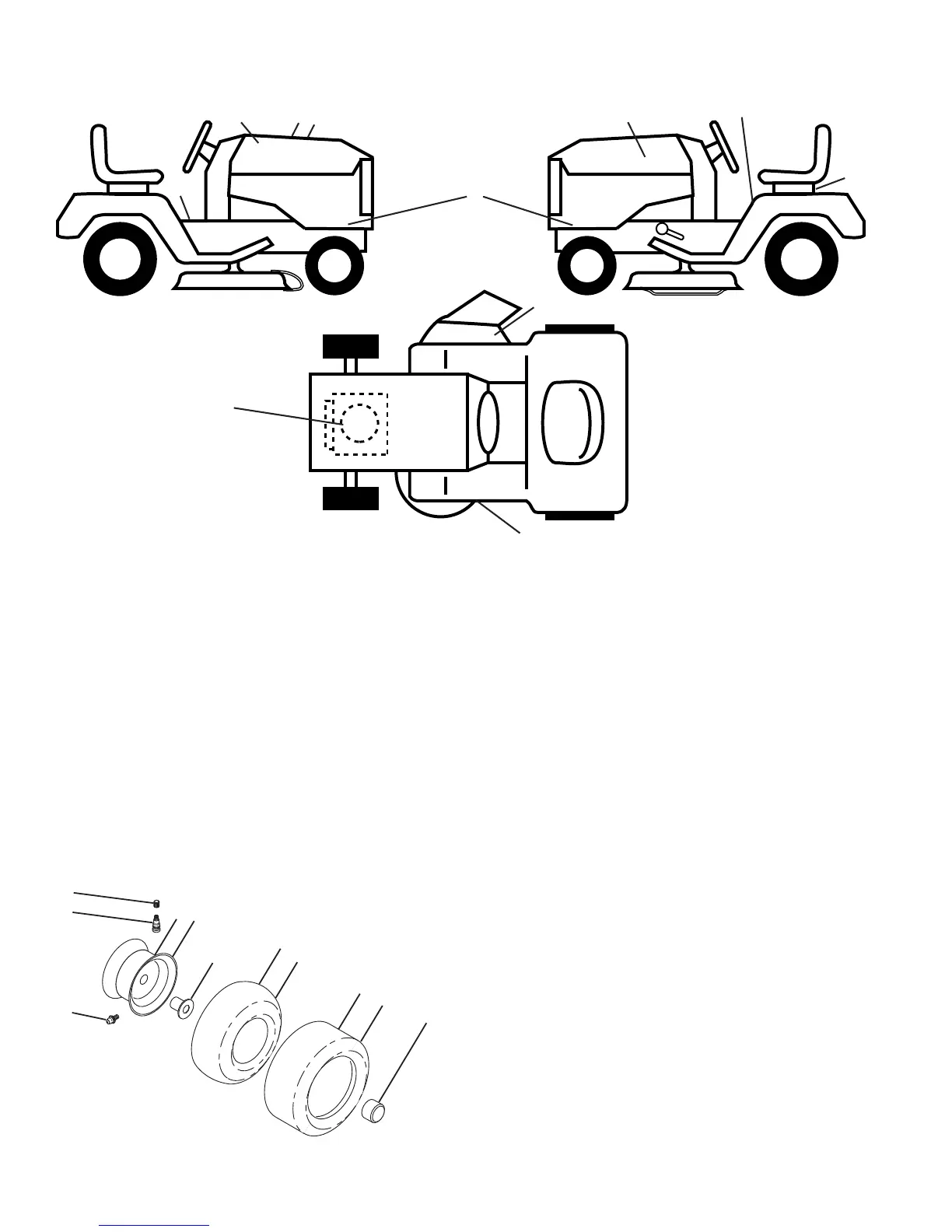

WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Asm 6" Front
4 532 05 99-04 Tube Front (Service Item Only)
5 532 10 62-22 Tire Front 15 x 6.0-6
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle Blk 1 50 x 1 00
9 532 42 05-31 Tire Rear 18 x 9.5-8 "Turf Saver LT"
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 13 83-37 Rim Asm 8" Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
1 532 41 16-58 Decal, Fender Warn./Instructions
2 532 42 91-96 Decal, Hood Logo
4 532 41 06-42 Decal, Hood Panel
5 532 42 38-29 Decal, Customer Respons.
6 532 43 65-57 Decal, Replacement
8 532 42 95-51 Decal, Engine
9 532 14 50-05 Decal, Battery Dnge/Poi
11 532 17 05-63 Decal, Warning
12 532 16 03-96 Decal, Mower V-Belt Schematic
- - 532 16 69-60 Decal, Bypass
- - 532 41 08-05 Pad, Footrest, LH
- - 532 41 10-56 Pad, Footrest, RH
- - 532 43 65-48 Manual, Owner's (English)
- - 532 43 65-49 Manual, Owner's (French)
11
1
12
2 5
6
8
2
9
9
4
TRACTOR - - MODEL NUMBER YTH2042 (289610)
DECALS
