REPAIR PARTS
TRACTOR - MODEL NO. YTH2148 (YTH2148A), PRODUCT NO. 954 57 19-60

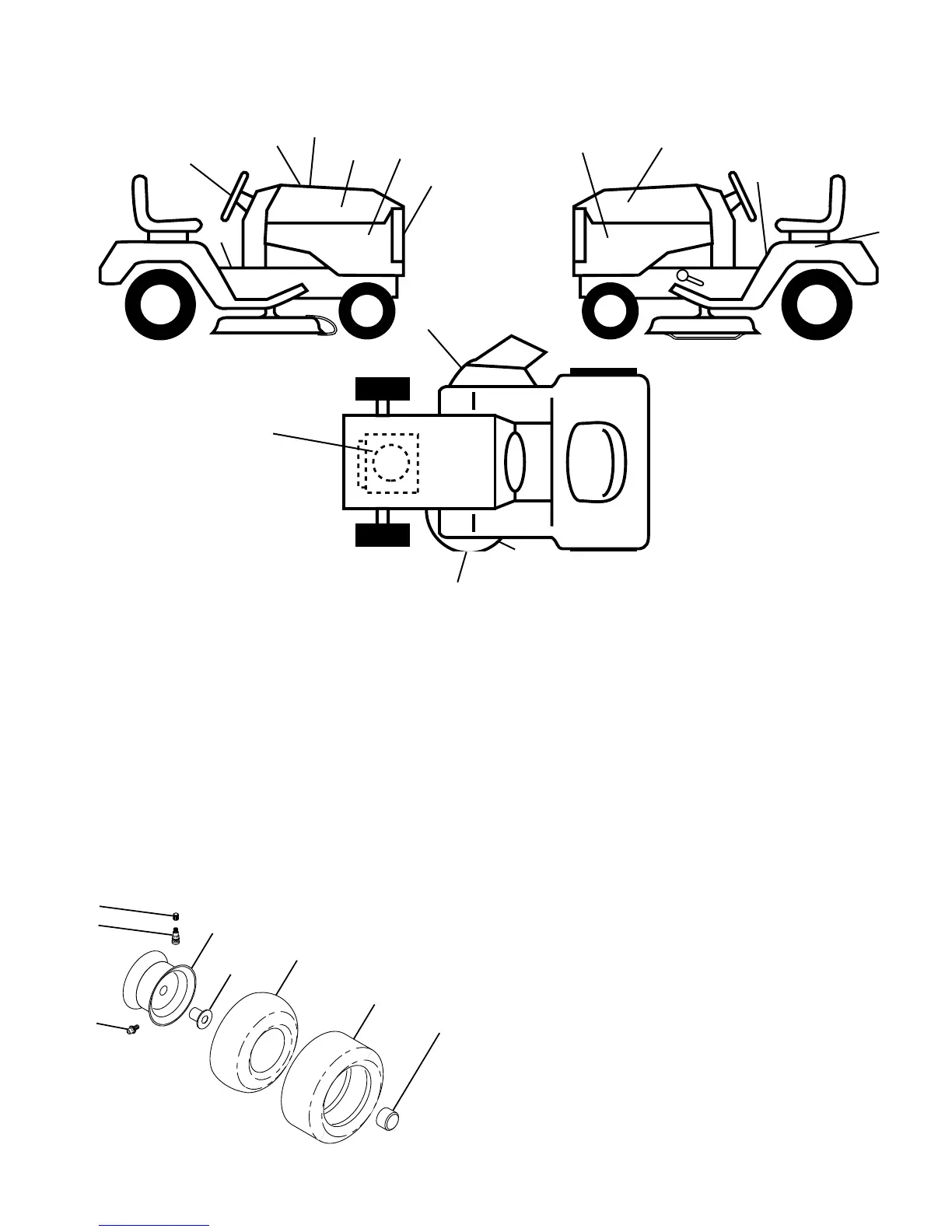

DECALS
10
4
9
6
11
14
6
2
1
5,8
4,10
3,9
11
7
wheel_1
WHEELS & TIRES
12
5
2
2
3
1
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 10 62-22 Tire F Ts 15 x 6 0 - 6 Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 13 83-36 Rim Asm 6"front Silver Service
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bear ing Flange (Front Wheel Only)
8 532 13 83-37 Rim Asm 8"rear Silver Service
9 532 12 20-82 Tire R Ts 20 x 10-8 C Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 17 50-39 Cap Axle Blk 1 50 x 1 00
- - 532 14 43-34 Sealant, Tire ( 10 oz. Tube)
1 532 17 84-82 Decal Deck Hvy Duty
2 532 18 94-48 Decal Panel Side
3 532 18 89-18 Decal Hood RH
4 532 18 89-19 Decal Hood LH
5 532 18 97-58 Decal HP Engine
6 532 18 09-41 Decal Hood Cust. Resp.
7 532 15 70-32 Decal Operator
8 532 18 92-43 Decal Dash
9 532 18 96-67 Decal Replacement
10 532 15 71-40 Decal Fender Danger
KEY PART
NO. NO. DESCRIPTION
11 532 17 52-91 Decal V-Belt Sch.
12 532 18 89-25 Decal Wheel Steering
13 532 17 05-63 Decal Warning
14 532 14 50-05 Decal Bat Dan/Psn
- - 532 16 69-60 Decal By-Pass
- - 532 18 82-52 Pad Footrest LH STLT
- - 532 18 82-53 Pad Footrest RH STLT
- - 532 13 83-11 Decal Handle Lft Height Adjust
- - 532 18 99-04 Manual Owner's (English)
NOTE: All component dimensions given in U.S. inches
