Husqvarna YTH2148XP - Page 41

41
1
3
3
9
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 10 62-22 Tire F Ts 15 x 6.0 - 6 Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 13 83-36 Rim Asm 6" front Silver Service
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 13 83-37 Rim Asm 8" rear Silver Service
9 532 12 20-82 Tire R Ts 20 x 10-8 C Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 17 50-39 Cap Axle Blk 1 50 x 1 00
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
20
8
14
1 532 14 54-98 Decal Oper Inst Hyd E/F
2 532 18 89-25 Decal Strg Wheel Logo
3 532 18 89-21 Decal Hood
6 532 17 83-02 Decal Cruise
7 532 14 08-37 Decal Brake Parking
8 532 18 21-66 Decal Cut Finger CE
9 532 19 04-10 Decal Fender Husq
10 532 15 97-37 Decal Brake/Clutch Symbol
11 532 19 11-60 Decal Hood Sides
12 532 17 85-02 Decal Clutch/Brake
KEY PART
NO. NO. DESCRIPTION
10
6
2
1
5,8
4,10
3,9
1
1
7

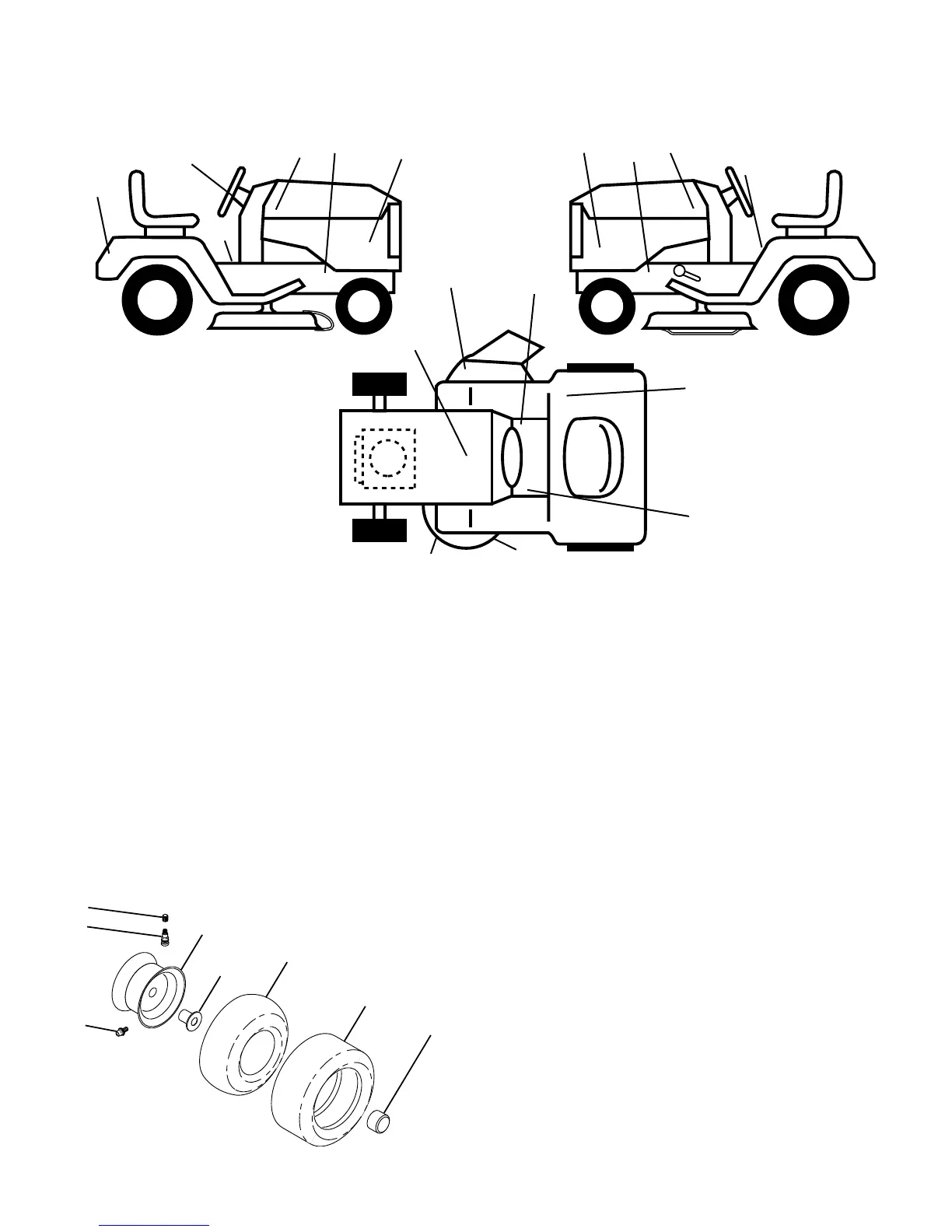

WHEELS & TIRES
13 532 15 97-36 Decal Chassis Hot Muffl er
14 532 17 52-91 Decal V-Belt Schematic
15 532 16 88-69 Decal Tick Mark
20 532 14 50-05 Decal Bat Dan/Psn
- - 532 16 69-60 Decal By Pass Lt Hydro
- - 532 18 14-95 Pad Footrest LH
- - 532 18 14-96 Pad Footrest RH
- - 532 16 25-98 Decal Draw Bar Load Limit
- - 532 19 57-68 Manual Owner's (English)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
12
6
11
11
13
13
7
15
REPAIR PARTS
TRACTOR - MODEL NUMBER YTH2148XP (HAU21H48B), PRODUCT NO. 954 17 02-27
DECALS
