39
REPAIR PARTS
TRACTOR - MODEL NO. YTH2242 (YTH2242A), PRODUCT NO. 954 57 03-83

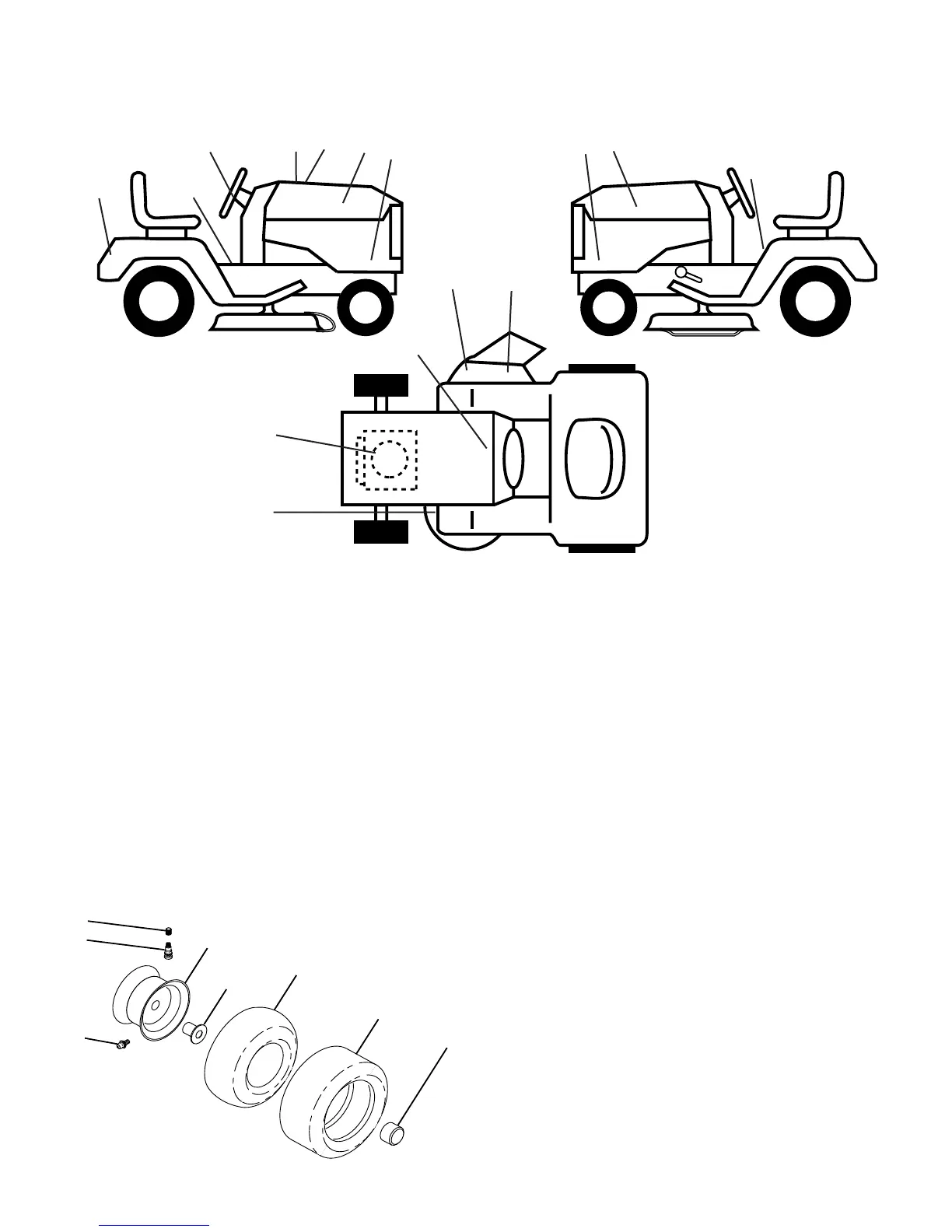

DECALS
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 10 62-22 Tire F Ts 15 X 6 0 - 6 Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 13 83-36 Rim Asm 6"front Silver Service
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 13 83-37 Rim Asm 8"rear Silver Service
9 532 10 62-68 Tire R Ts 18 x 9.5-8 C Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 17 50-39 Cap Axle Blk 1 50 x 1 00
- - 532 14 43-34 Sealant, Tire ( 10 oz. Tube)
1 532 18 09-41 Decal Hood Cust. Resp.
2 532 14 50-05 Decal Battery
3 532 18 58-25 Decal Hood RH
4 532 18 58-26 Decal Hood LH
6 532 15 70-32 Decal Fender Oper
7 532 17 05-64 Decal Wheel Steering
8 532 17 05-63 Decal Warning Keep Hand Away
9 532 17 68-22 Decal Fender Husq
10 532 15 71-40 Decal Fender Danger E/F
11 532 18 58-27 Decal Engine
12 532 18 58-38 Decal Hood Replacement
KEY PART
NO. NO. DESCRIPTION
6
2
1
5,8
4,10
3,9
11
7
WHEELS & TIRES
13 532 18 58-15 Decal Hoodsides
14 532 16 03-96 Decal V-Belt Schematic
15 532 17 91-28 Decal Deck "B" 42"
- - 532 10 62-02 Refl ector Tail Light
- - 532 17 12-84 Pad Footrest LH
- - 532 17 12-85 Pad Footrest RH
- - 532 13 83-11 Decal Handle Lft Height Adjust
- - 532 16 92-10 Decal By Pass Lt Hydro
- - 532 18 54-46 Manual Owner's (English)
- - 532 18 54-47 Manual Owner's (French)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
10
4
3
9
8
14
7
11
12
13
6
13
1
15
2
