Husqvarna YTH2242 - Page 40

40
1 532 17 08-63 Control Throt Flg
2 817 72 04-08 Screw Hex Thd Cut 1/4-20x5/8 T
3 - - - - - - - - Engine Kohler CV674
(Order Parts from Engine Manu-
facturer)
4 532 14 97-23 Muffl er Asm Twin Lo-Tone
5 532 14 66-99 Exhaust Tube Lh
6 532 14 67-00 Exhaust Tube Rh
8 532 17 18-77 Bolt 5/16-18unc x 3/4 W/Sems
10 532 14 66-29 Shield Browning
13 532 18 60-54 Gasket Muffl er
14 532 14 84-56 Tube Drain Oil Easy
16 811 05 06-00 Washer Lock Ext Tooth 3/8
17 817 06 06-24 Screw 3/8-16 x 1-1/2
23 532 16 98-37 Shield Browning
25 532 14 59-96 Choke Control
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
REPAIR PARTS

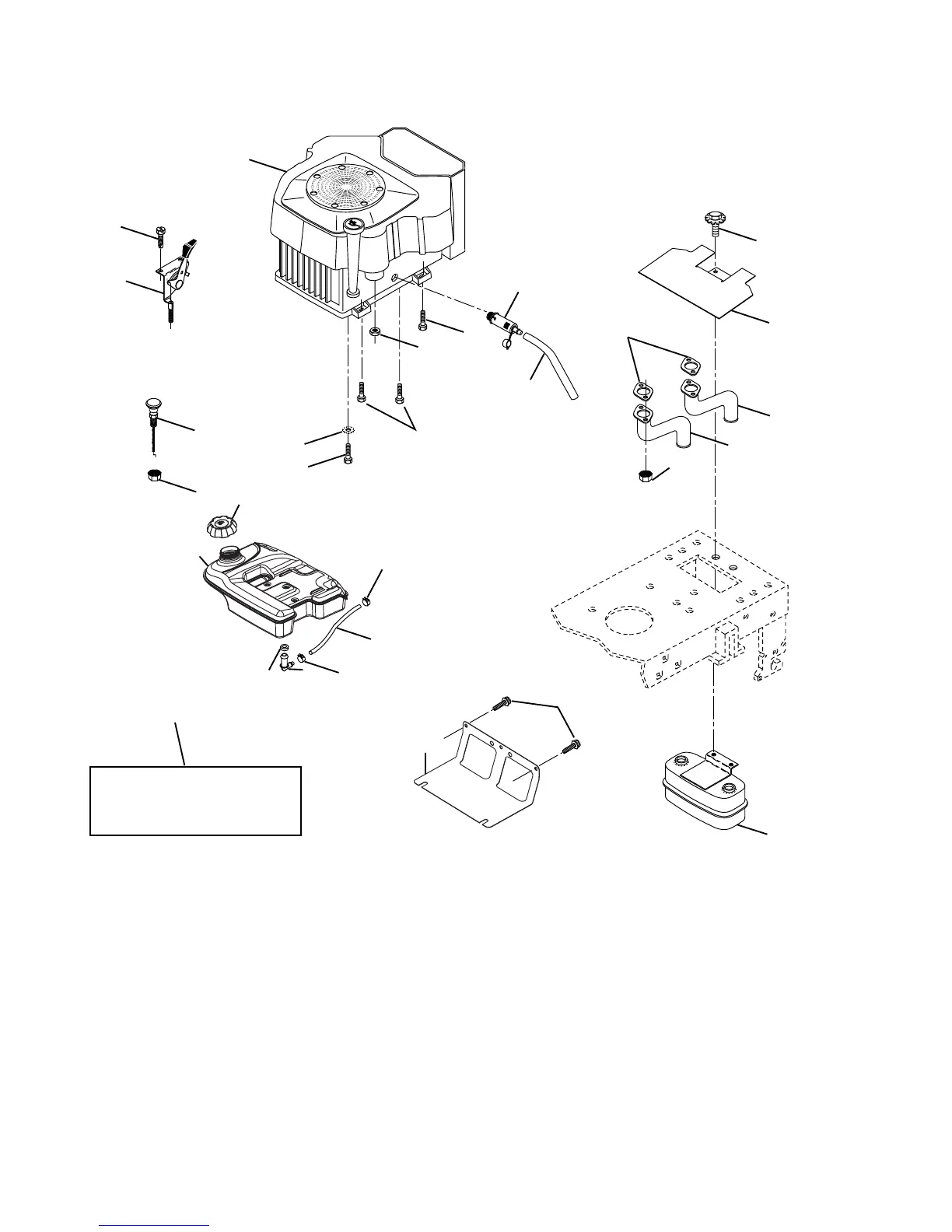

TRACTOR - MODEL NO. YTH2242 (YTH2242A), PRODUCT NO. 954 57 03-83
ENGINE
2
1
OPTIONAL EQUIPMENT
Spark Arrester
29
8
10
6
5
101
13
4
26
25
101
3
17
16
17
17
23
45
14
38
32
31
33
37
33
41
112
26 873 92 06-00 Nut, Keps 3/8-24 Unf
29 532 13 71-80 Kit Spark Arrestor (Flat Scrn)
31 532 17 90-22 Tank Fuel
32 532 18 18-03 Cap Asm Fuel
33 532 12 34-87 Clamp Hose Blk
37 532 14 21-58 Line Fuel
38 532 18 16-54 Plug Drain Oil
41 532 13 92-77 Stem Tank Fuel
45 817 00 06-12 Screw Hexwsh Thdr 3/8-16 x 3/4
101 532 16 33-05 Nut Flange M8-1.25
112 532 12 49-52 Bushing
