Husqvarna YTH2242T - Mower Lift Diagram

35
TRACTOR - - MODEL NUMBER YTH2242T (279180)

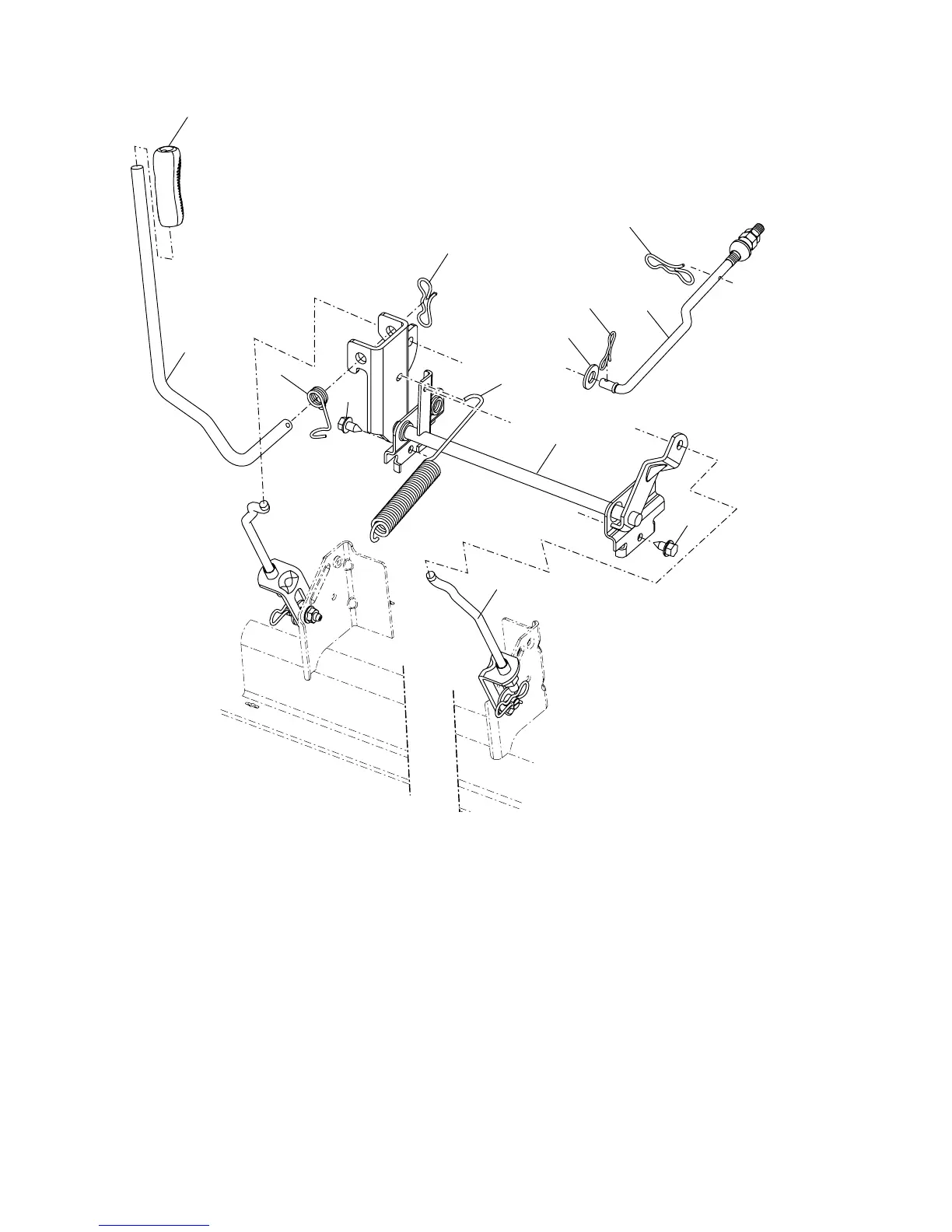

MOWER LIFT
7
3
87
10
88
2
89
90
87
98
97
97
91
lift-tex_4
2 532 19 52-23 Shaft Asm., Lift
3 532 19 52-31 Lever Asm., Lift Rh
7 532 19 64-92 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 19 53-03 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
91 532 19 51-81 Link Lift Susp Mower Rear
97 817 06 06-12 Screw 3/8-16 x .75 Smgml Tap/R.Z
98 532 19 52-70 Link Lift Susp. Front Mower
KEY PART
NO. NO. DESCRIPTION
