Husqvarna YTH2242TDRF - MOWER LIFT ASSEMBLY; Mower Lift Diagram and Parts

43
TRACTOR - MODEL NO. YTH2242TDRF (96041023700), PRODUCT NO. 960 41 02-37

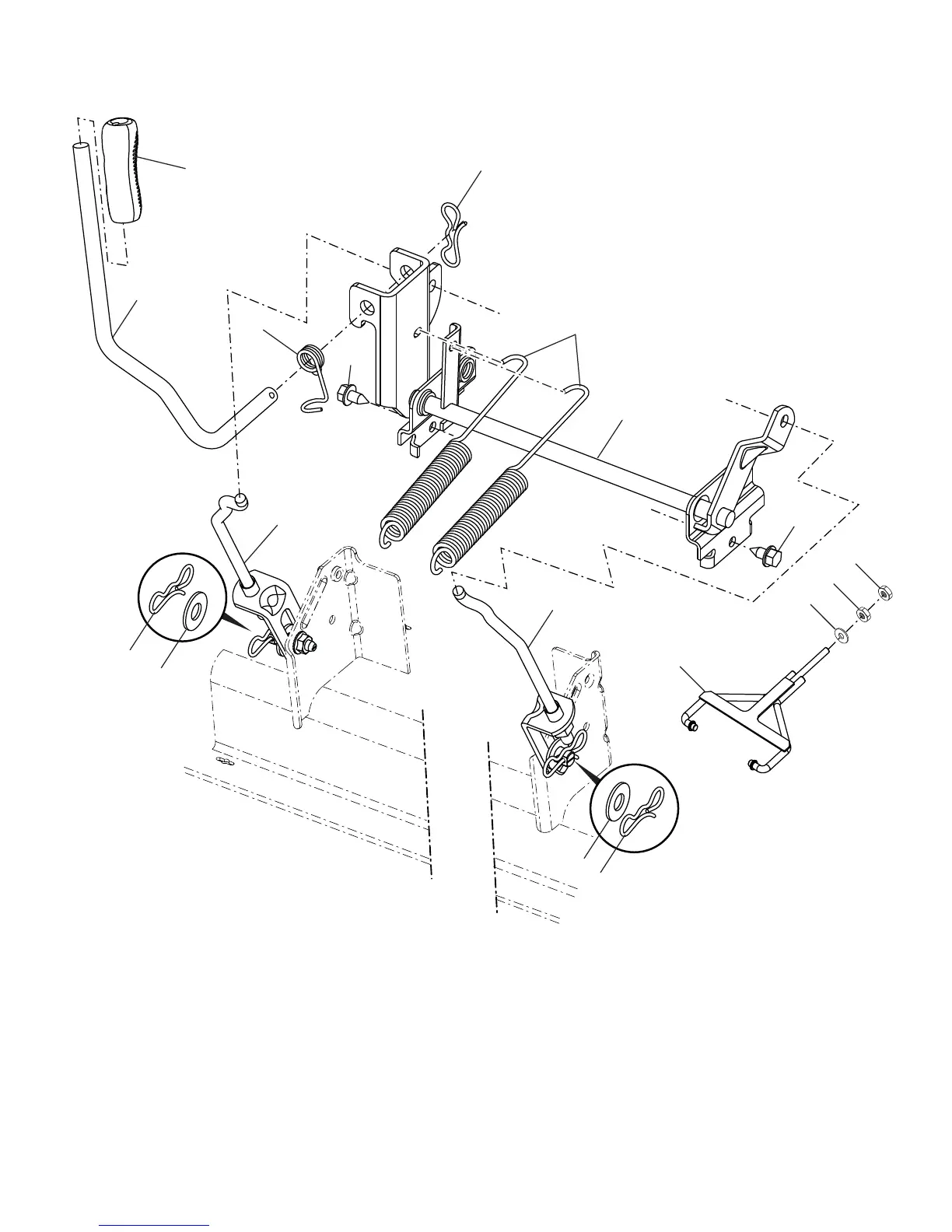

MOWER LIFT
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
2 532 42 20-27 Shaft Asm., Lift
3 532 19 52-30 Lever Asm., Lift RH
7 532 41 15-55 Grip, Lever
10 532 19 63-14 Spring Torsion
41 532 17 59-94 Nut, Lift Link
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41 07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
91 532 40 34-07 Link Lift Susp Mower Rear
96 532 19 52-63 Bushing, Spherical
97 817 00 06-12 Screw 3/8-16 x .75
98 574 82 25-01 Link Lift Susp. Front Mower
114 873 36 07-00 Nut Jam 7/16-20













