Husqvarna YTH2246TDR Illustrated Parts List

16
7
3
87
10
88
2
89
90
98
97
97
lift-tex_17_r3 *Key 91 may be substituted for Key 101
91
101*
87
100
89
89
87
2 532 42 20-27 Shaft Asm., Lift
3 532 19 52-30 Lever Lift Handle
7 580 96 23-01 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41 07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
91 532 19 51-81 Link Lift Susp Mower Rear
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
97 817 00 06-12 Screw 3/8-16 x 3/4
98 532 19 52-70 Link Asm. Susp. Front Mower
100 873 93 06-00 Nut Centerlock 3/8-16 unc
101 532 40 70-03 Link Lift Asm Fxd
KEY PART
NO. NO. DESCRIPTION
TRACTOR - - MODEL NO. YTH2246TDR (96041027201/02), PRODUCT NO. 960 41 02-72

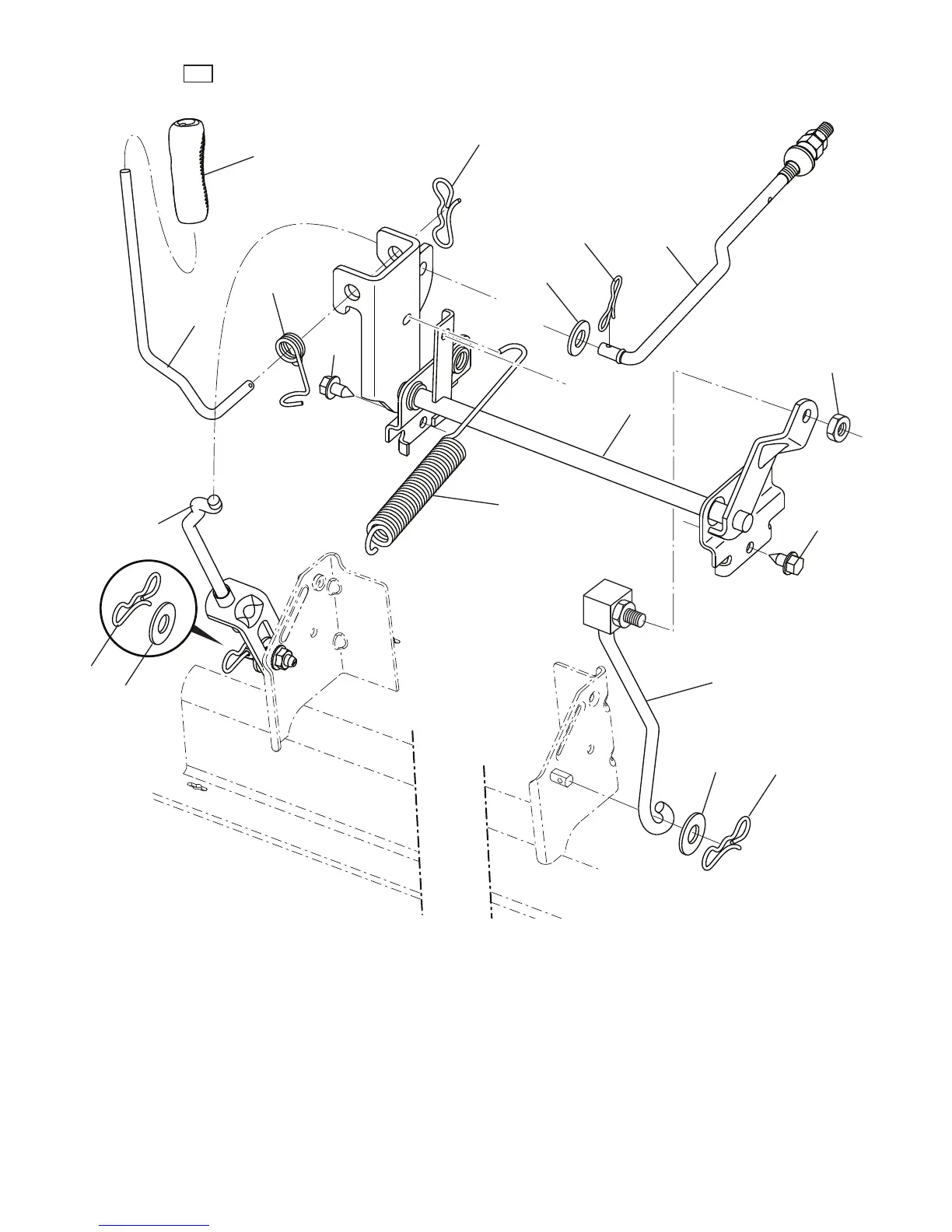

MOWER LIFT
45
45
