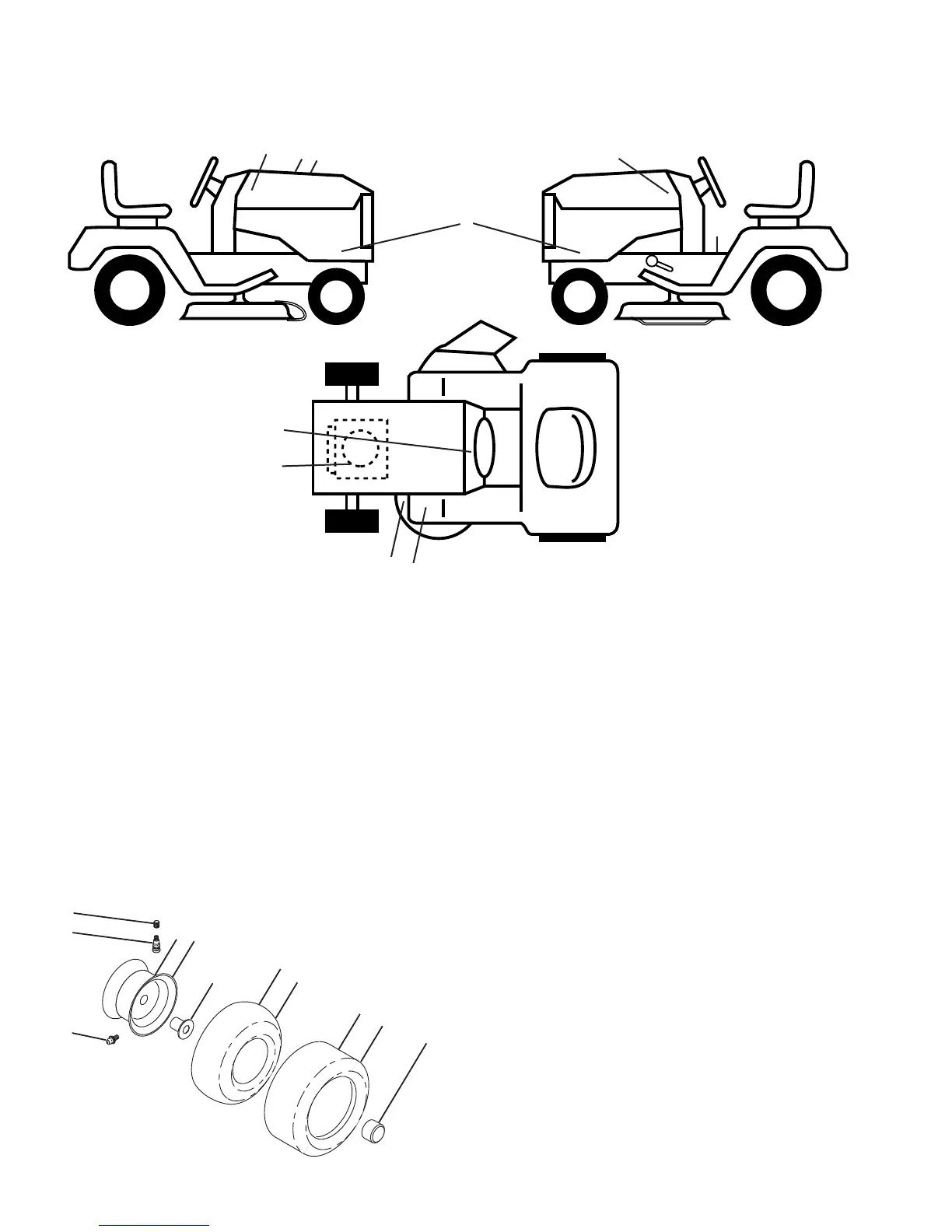

TRACTOR - - MODEL NUMBER YTH22V46XLS (96043011200), PRODUCT NO. 960 43 01-12
DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 13 83-36 Rim Front Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 10 62-22 Tire TM Front 15 x 6.00-6
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle Blk 1 50 x 1 00
9 532 13 84-68 Tire TM Rear 30 x 10.00-8
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 13 83-37 Rim Asm 8" rear Service
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
1 532 41 16-57 Decal, Operators
2 532 42 91-96 Decal, Badge
3 532 43 95-85 Decal, Panel SD
4 532 43 29-14 Decal, Eng. HP
5 532 42 38-29 Decal, Customer Respons.
6 532 43 84-73 Decal, Replacement
7 532 41 86-00 Decal, Pedal Husq. Crown
9 532 14 50-05 Decal, Battery Dnge/Poi
12 532 16 03-96 Decal, Mower V-Belt Schematic
- - 532 16 69-60 Decal, Bypass
- - 532 43 96-81 Pad, Footrest, LH
- - 532 43 96-82 Pad, Footrest, RH
- - 532 43 87-04 Manual, Owner's (English)
- - 532 43 87-05 Manual, Owner's (Spanish)
12
7
2
5
6
3
2
1
9
4
