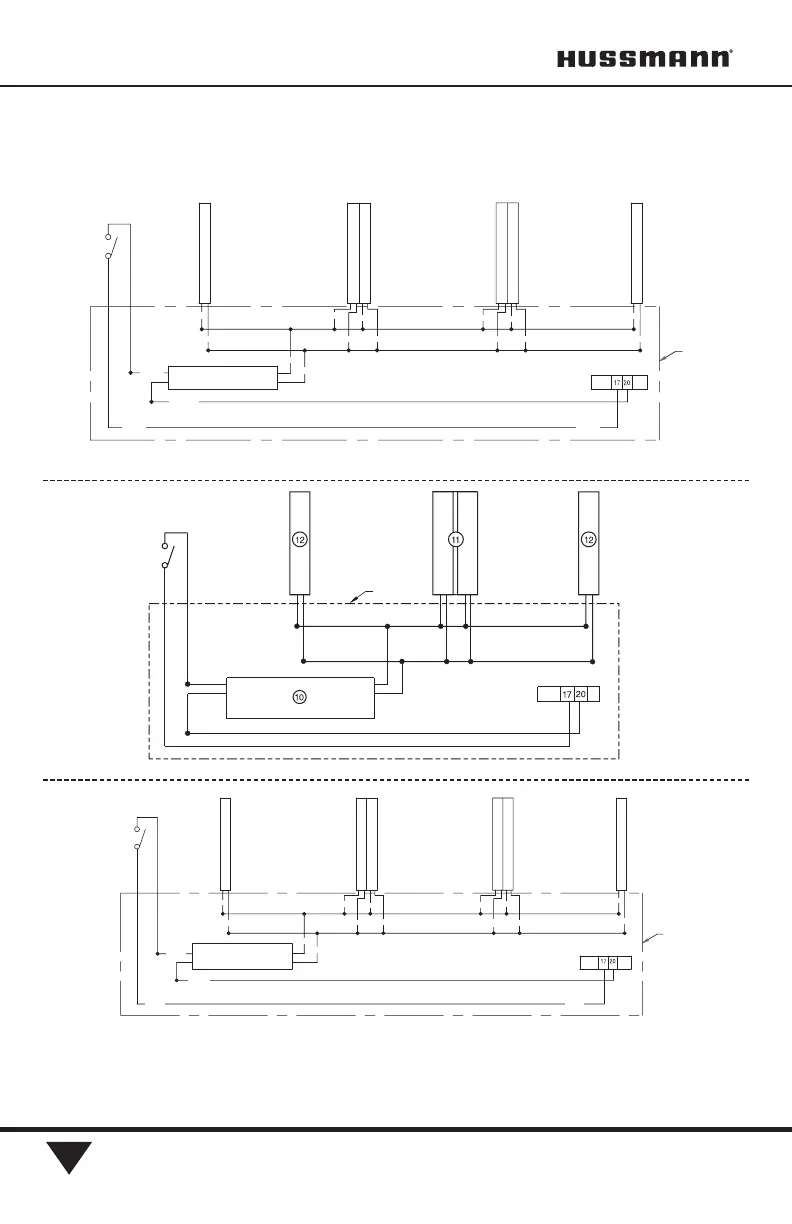

2 DOOR END COMPARTMENT LED LIGHT WIRING DIAGRAM
LIGHT
SWITCH
WIREWAY
LED LED
TERMINAL BLOCK
POWER SUPPLY 24VDC
100W
3 DOOR LED LIGHT WIRING DIAGRAM
OUTPUT
INPUT
LED LED LED LED
BLUE
RED
RED RED
RED RED
RED
RED
BLACKBLACK BLACKBLACK
WHITE
WHITE
BLACK
BLACK BLACK
BLACK
BLACKBLACK BLACK BLACK
Wiring diagrams are shown below for RLNIE
merchandisers with 60 in. EcoShine II LEDs.
LIGHT
SWITCH
WIREWAY
BLACK
BLACK
BLACK BLACK
OUTPUT
INPUT
BLACK
WHITE
LED LED LEDLED LED LED
TERMINAL BLOCK
3 DOOR LH SIDE COMPARTMENT LED LIGHT WIRING DIAGRAM
POWER SUPPLY 24VDC
100W
RED
RED
RED
BLUE
RED
BLACK BLACK
BLACK
BLACK
WHITE
RED
RED
RED
