Hussmann RL - Gasket Application for RL;RM;RMF & RLN;RMN; Apply Donut Gasket to Left End; Apply Foam Tape Gasket to Right End

4
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
Reach-in Joining Instructions
P/N 0387177_K
4
If not already installed make
sure NutRetainers and
Alignment Pins are in place in
the right end frame as shown
in Figure 4A or 4B.

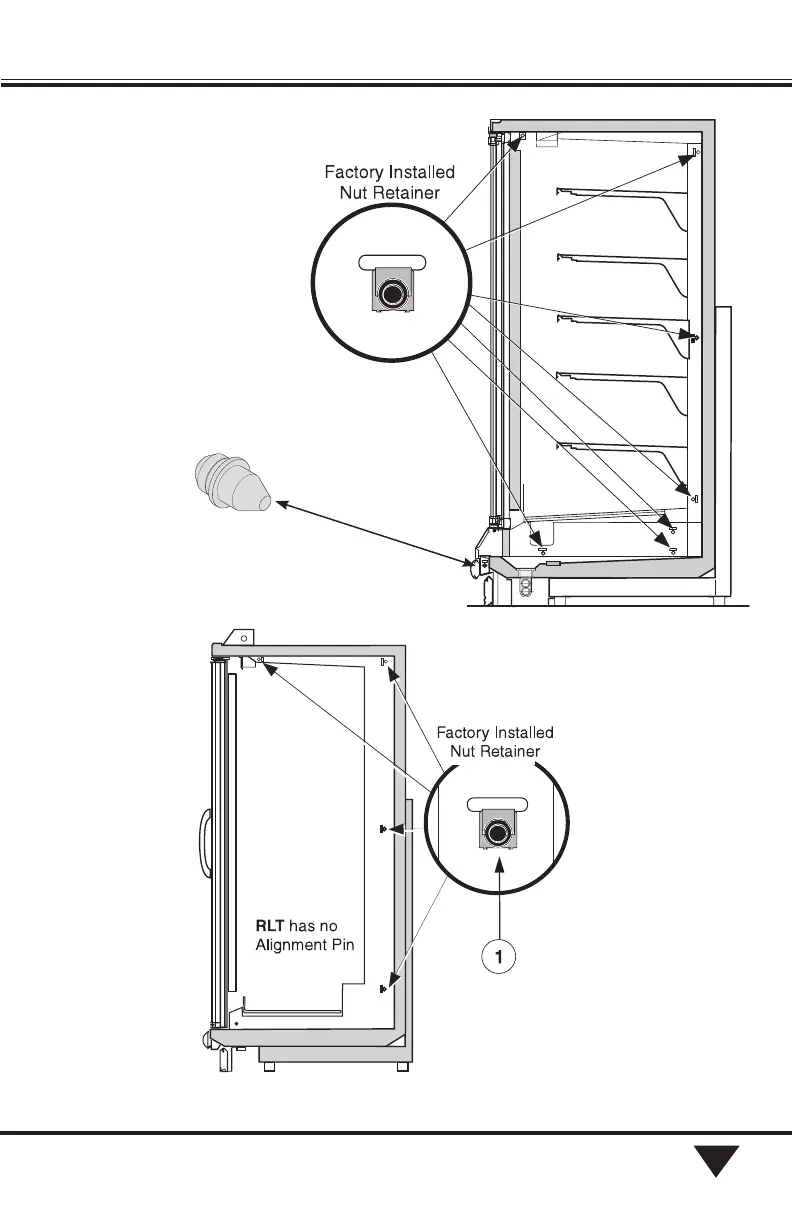

Figure 4A. Verify Nut Retainer Installation
RLT
RL / RM / RMF
and
RLN / RMN
Alignment Pin
