PARTS LIST

Item Quantity Description

RL / RM / RMF RLNI

RLN / RMN RLNIE RLT

1. 5 10 4 Nut Retainer

/16-18 (Left End Only)

2. 1* 2* 1* Donut Gasket (per end, Ships with Merchandiser)

3. 1** 2** – Gasket

/2 x 1 x 180 in. (4572 mm) (Right End Only)

4. 1** 2** – Gasket

/4 x

/2 in. x 600 in. (15240 mm) (Right End Only)

5. 1 1 1 Gasket Pattern Shoe RH

6. 1 Gasket Pattern Shoe LH

7. 1 1 – End Assembly

8. 6 12 – Cap Screw

/16-18 x 1

/4 in. (32 mm)

9. – – 4 Cap Screw

/16-18 x 2

/2 in. (64 mm)

10. 6 12 5 Plug, Bolt Spacer

11. 6 12 5 Button, Plug

/8 in. diameter

12. – 1 – Trim, Center End

13. 3 11 7 Screw, SM #8 x

/2 in. (13 mm) Phil AB

14. 6 12 5 Hex Nut

/16-18

15. – – 1 Cap Screw

/16-18 x 5

/2 in. (140 mm)

16. 1 2 – End ‘J’ Molding

17. 5 10 – Shoulder Screw #8 x

/2 in. (13 mm) (Innovator Doors)

18. – – 1 Bumper End Cover

19. – – 9 Screw, Hex Head SM #8 x

/2 in. (13 mm)

20. 1 2 1 End Splashguard

21. 1 1 – Starter Bumper (Left End Only)

22. – – 1 End Valance

23. – – 2 End Valance Bracket

Optional End Protector

21. 1 1 1 Protector, End

22. 10 20 10 Screw, Truss Head SM #8 x

/2 in. (13 mm)

Optional End Bumper

23. 1 1 1 Bumper Retainer

24. 3 5 3 Truss Head Screws

#10 x

/2 in. (13 mm)

25. 2 2 2 Bumper End Cap

26. 2 2 2 Pan Head Screw

#8 x 1

/4 in. (32 mm)

27. 1 1 1 End Bumper

* Donut gaskets are included with merchandiser.

** Left End gaskets are included with merchandiser.

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

Frozen Food, Ice Cream, Delicatessen, Dairy & Floral

Rectangular Solid or

Contour Glass End for

Reach-In Merchandisers

Installation Instruction

RECTANGULA R END CONTO UR END

P/N 0387152_H

May 2015

MANUAL- KIT REACH-IN END

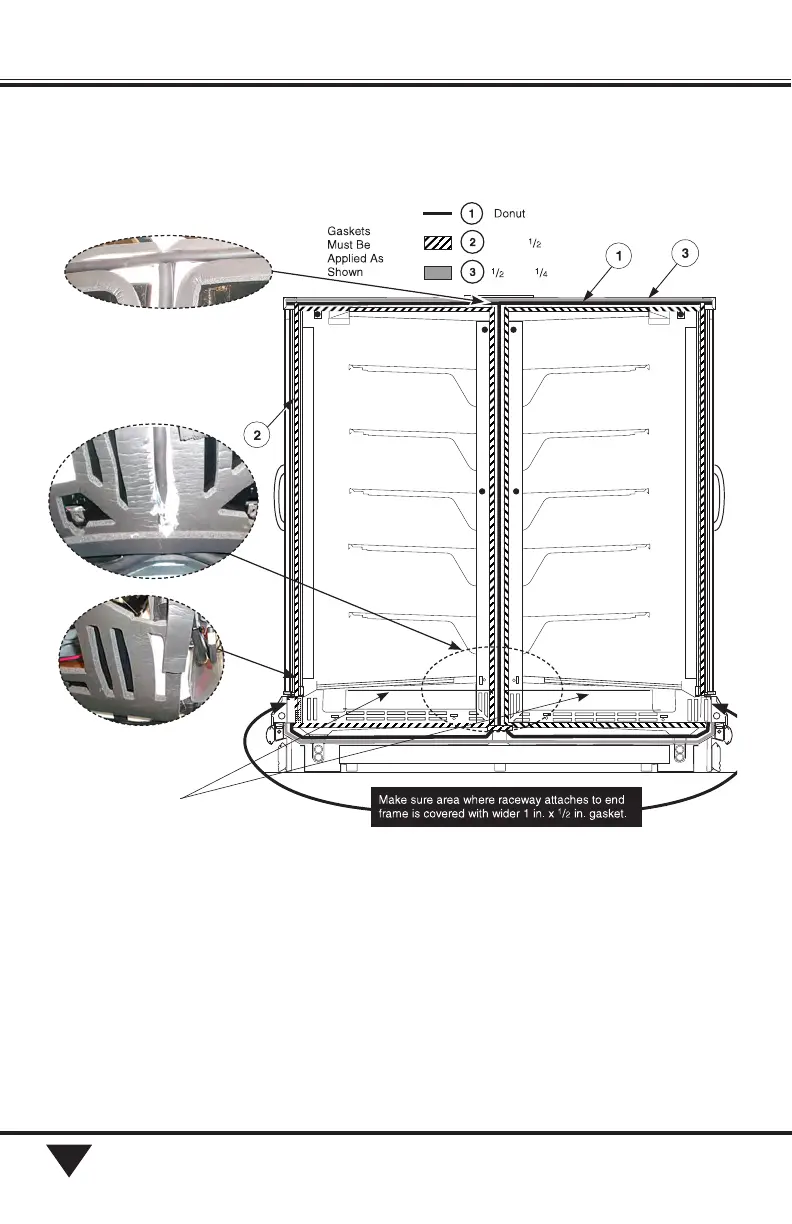

Hussmann RL - Apply Gaskets to Right End
