109627_0910 4-15

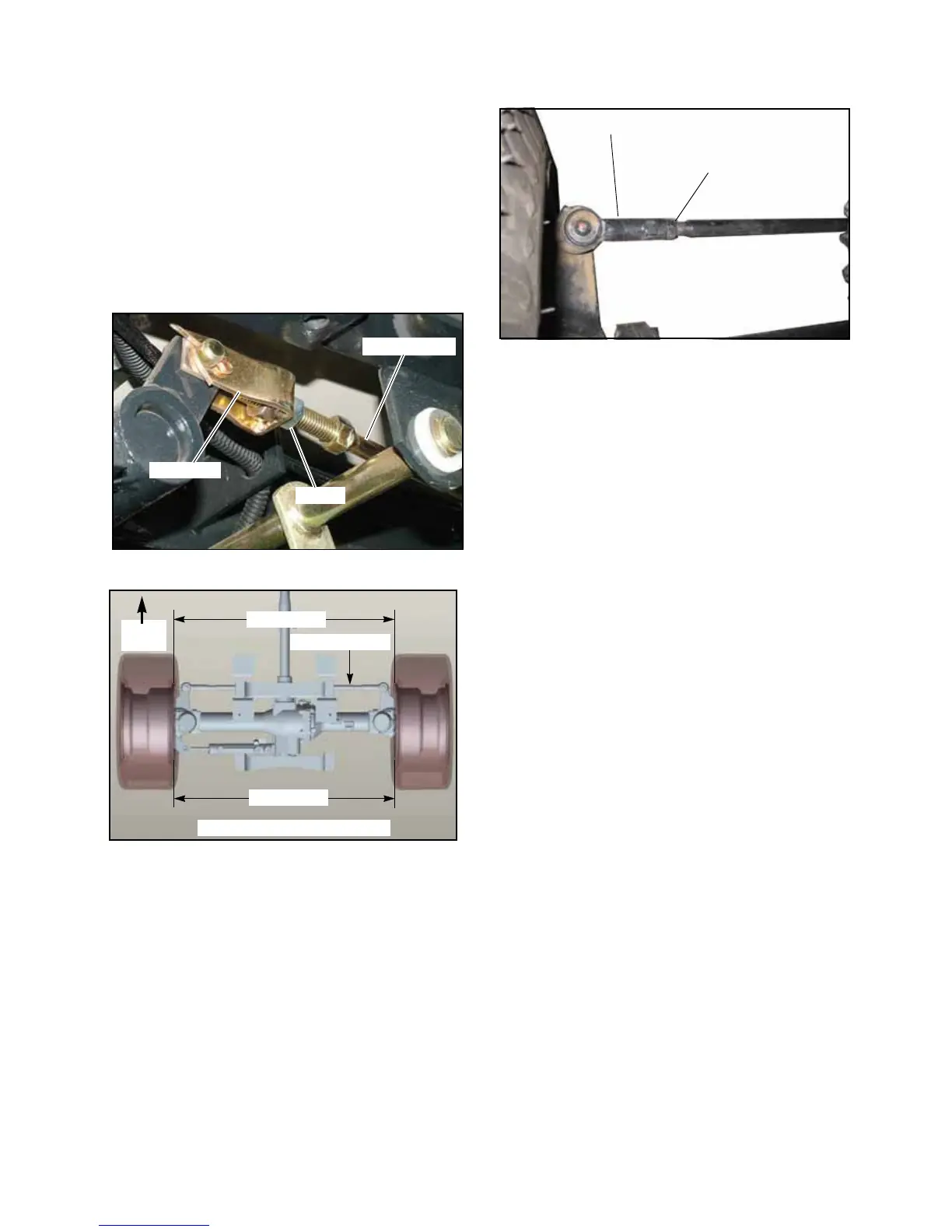

4. The 'F' dimension should be between 0.075" and 0.175"
(1.9 mm - 4.4 mm) less than 'R' dimension.
5. If the toe-in must be re-adjusted to meet the dimensional
requirements, loosen the jam nuts on either end of the tie
rod. Figure 4-38
6. Once the jam nuts are both loose and backed off, rotate
the tie rod in the appropriate direction and adjust
accordingly to meet the dimensional requirements of step
#4.
7. Tighten the jam nuts on either end of the tie rod. Make
sure the ball joints on each end move freely once jam
nuts are tightened.
Figure 4-36
Figure 4-37
Front clevis
Jam nut
To Next Page
