HUSTLER 42 - Tractor Maintenance Locator Chart

601396_0109 5-7
Fig. 5-8
1
4
2
3
5
6
7
8
9
9
10
13
10
8

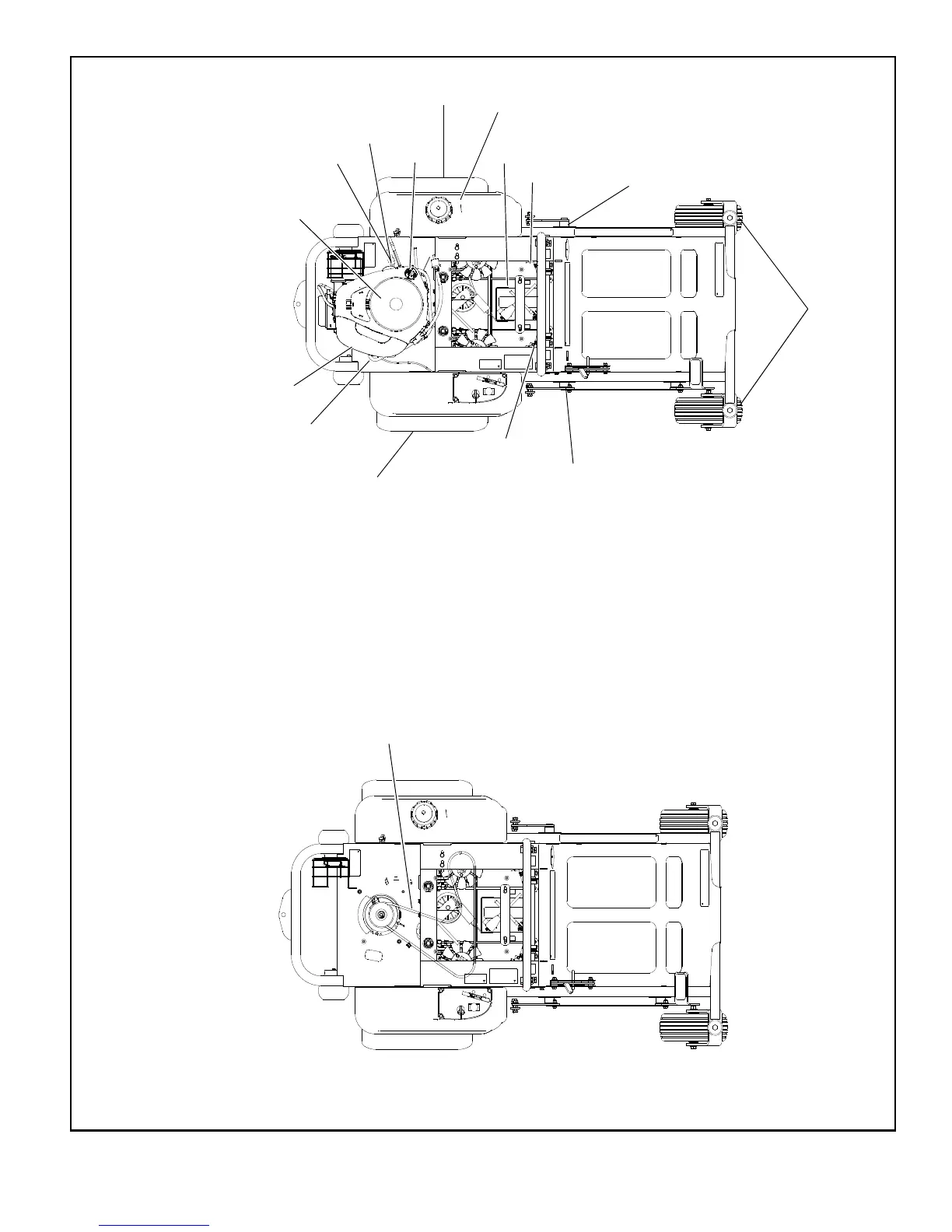

Hustler Sport 42/48 Tractor
Maintenance Locator Chart
Viewed from top of unit
12
11
1. Engine Oil Fill & Dipstick
2. Fuel Filter
3. Engine Air Cleaner
4. Engine Oil Drain Plug
5. Battery
6. Fuel Tank
7. Engine Oil Filter
8. Deck Lift Pivot Zerks (2)
9. Park Brake Switch (2)
10. Drive Tire
11. Pump Belt
12. Engine Air Intake Screen
13. Front Gauge Wheel Tires
