9-28 110907 01/09
(two stacked 2”x4” blocks can be used to create a 3.0” support).
5. Remove the deck stop pin and lower the deck until it rests on the support blocks.
6. Loosed the (3) bolts attaching the (3) deck links to the deck.
7. Push the lift pedal forward, place the deck stop pin in the indicator hole marked 3.25”,
and release the pedal.
8. Use a bungee cord th pull the pedal rearward so that the crank lever is held firmly
against the stop pin and play in the pivot joint is removed (FIG. 44).
9. Tighten the (3) deck links to deck with flanged nuts clamping on either side of slot with
48 ft-lbs of torque.
Remove bungee cord and ensure that deck can be raised and locked into transport position.

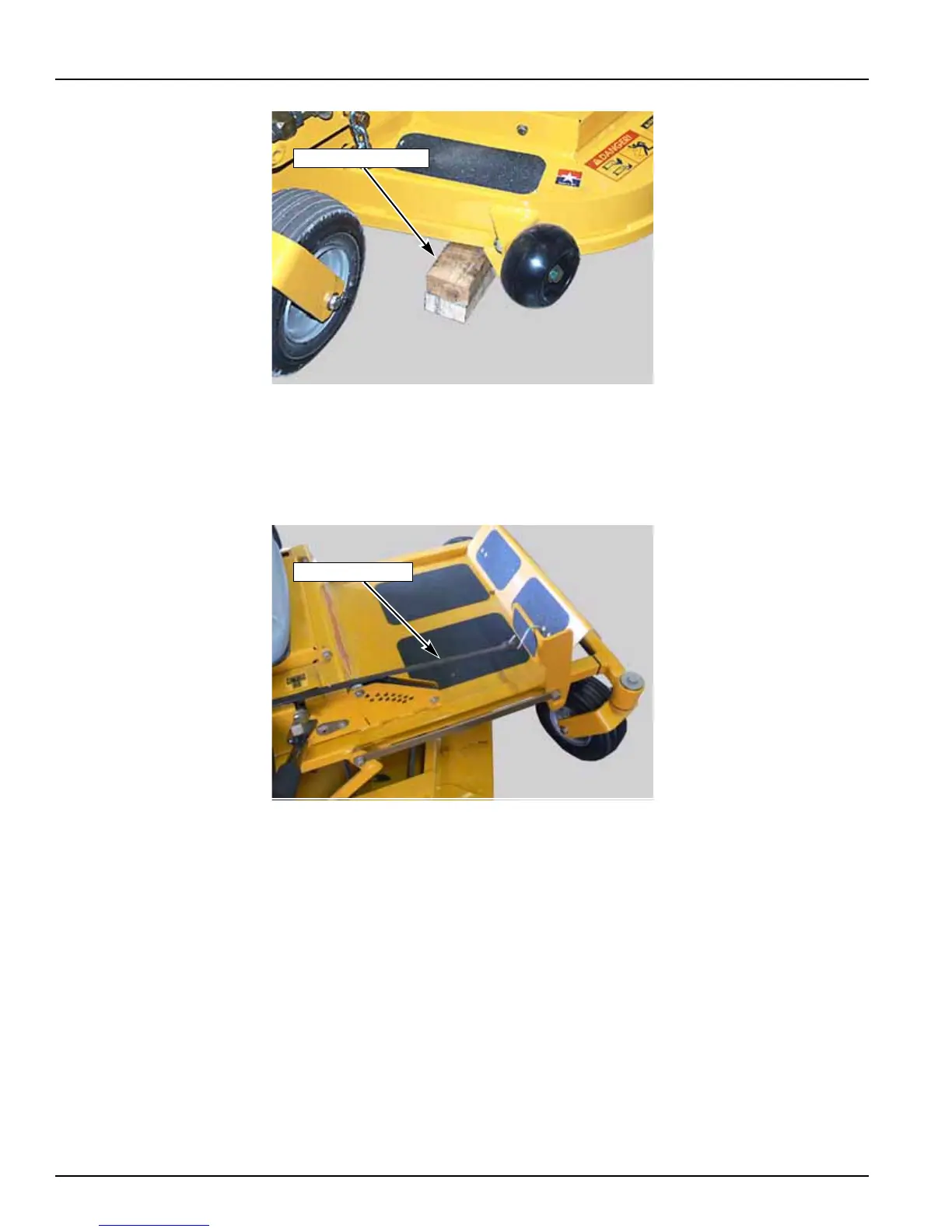

FIG. 43
FIG. 44
