Steering Control Lever Adjustment
The steering control levers can be adjusted for operator
comfort.
A. To pivot the upper control levers forward or rearward,
loosen the cap screws that attach the upper control
lever to the lower lever. Then, pivot the upper control
lever. Tighten the cap screws. Figure 4-10
B. To lower and raise the control levers, remove the cap
screws. Slide the upper control lever up or down and
align the holes in it with the holes in the lower lever.
Re-install the cap screws and tighten.
The steering control levers should be adjusted so that they
align with each other when in the neutral position.

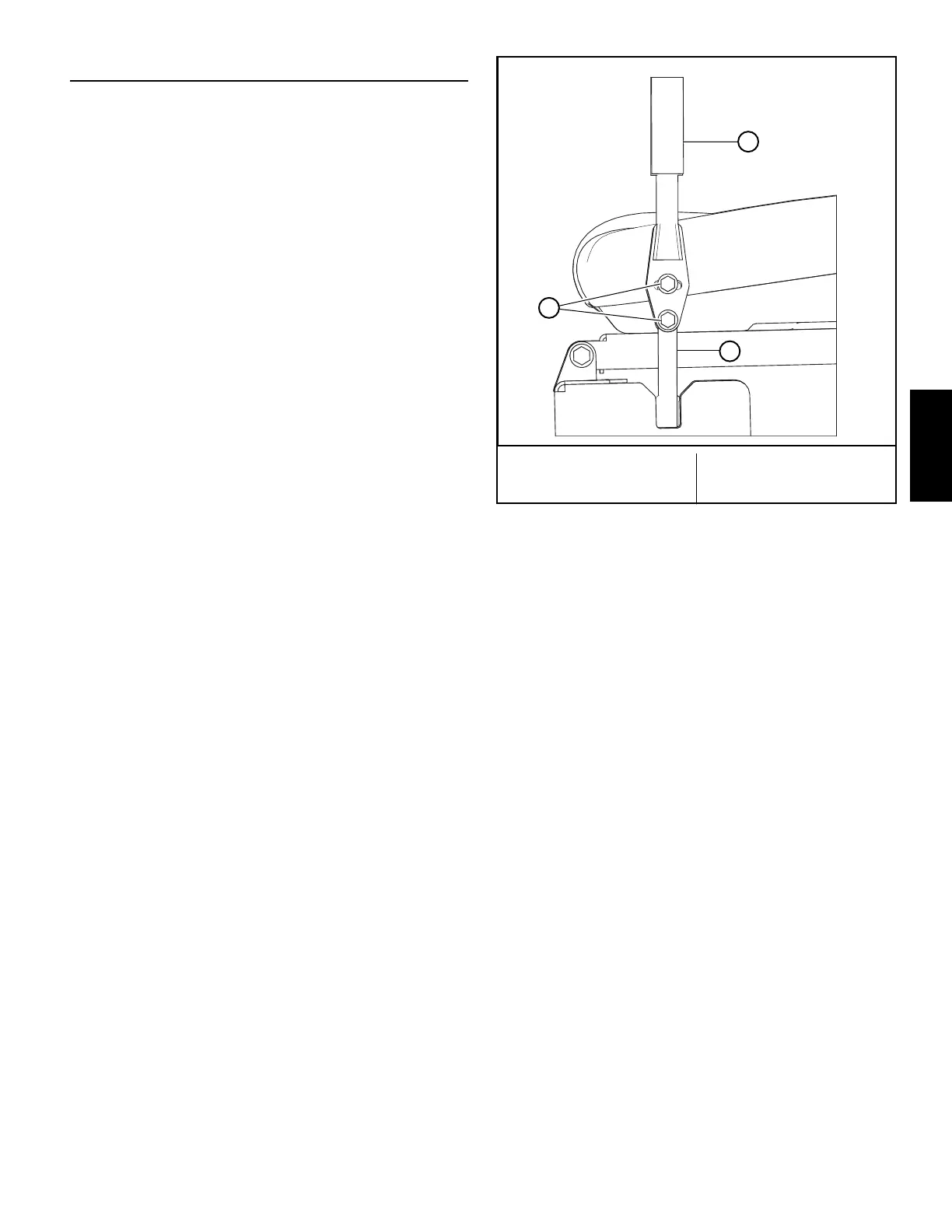

A. Upper control lever
B. Cap screws
C. Lower control lever
Figure 4-10
A
B
C
