HUSTLER TrimStar General Service Manual

REV B 5-2 114674_0512

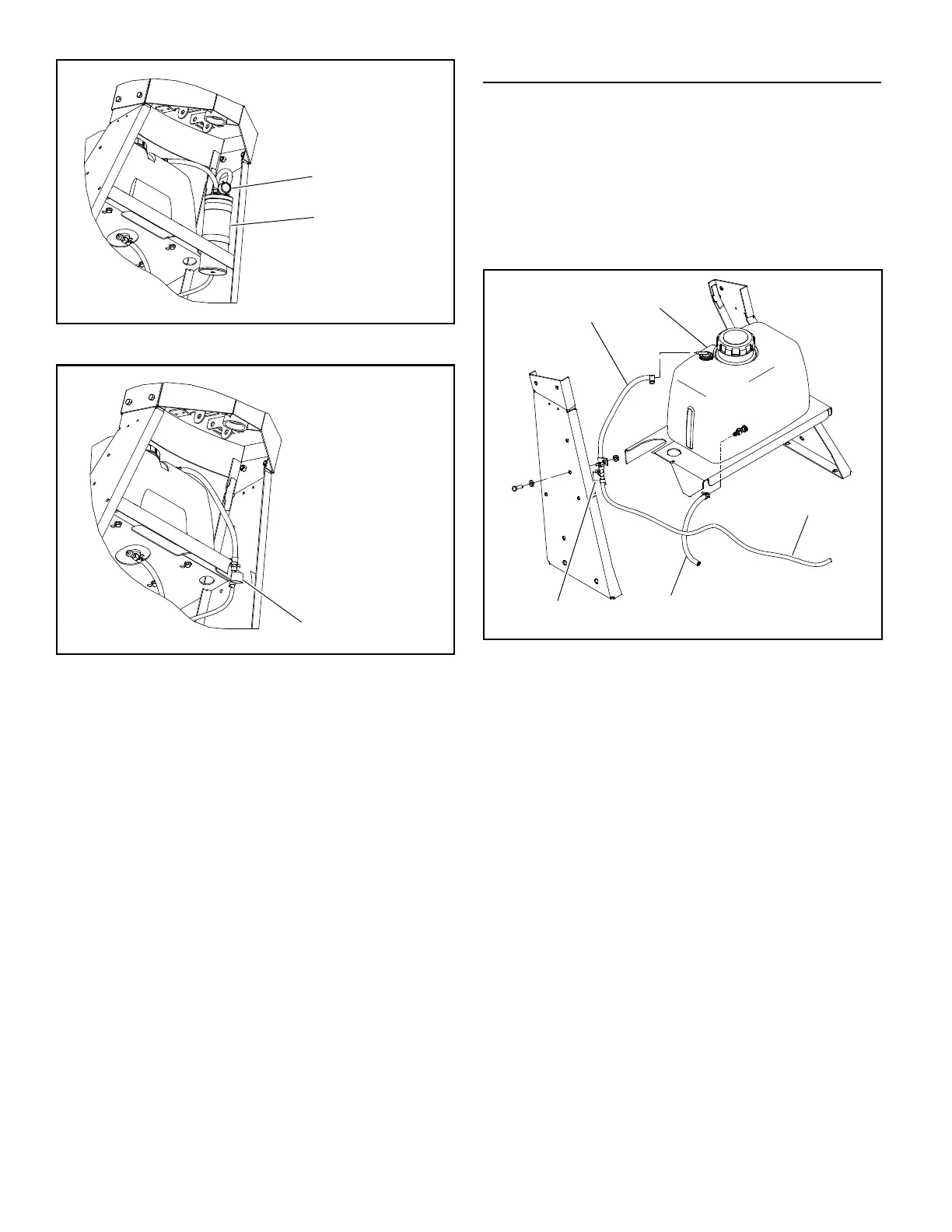

Figure 5-4
Fuel & evaporative system line routings
There are two rubber hoses that are connected to the fuel tank.
One is the fuel hose that is part of the fuel system. The other is
the vapor line that is part of the fuel evaporative system.
The fuel hose is connected to the port on the side wall of the
fuel tank. It connects the fuel tank to the fuel shutoff valve. Fig-
ure 5-5
The vapor line is connected to the port in the top of the fuel
tank. It connects the fuel tank to the engine’s vapor port. Figure
5-5
Figure 5-3
Figure 5-4
Carbon
canister
Fuel evaporation
system filter
Fuel evaporation
system filter
Figure 5-5
Fuel
tank
Fuel line
Vapor line
Vapor line
Fuel evaporation
system filter
