HUSTLER TrimStar General Service Manual

REV B 8-2 114674_0512

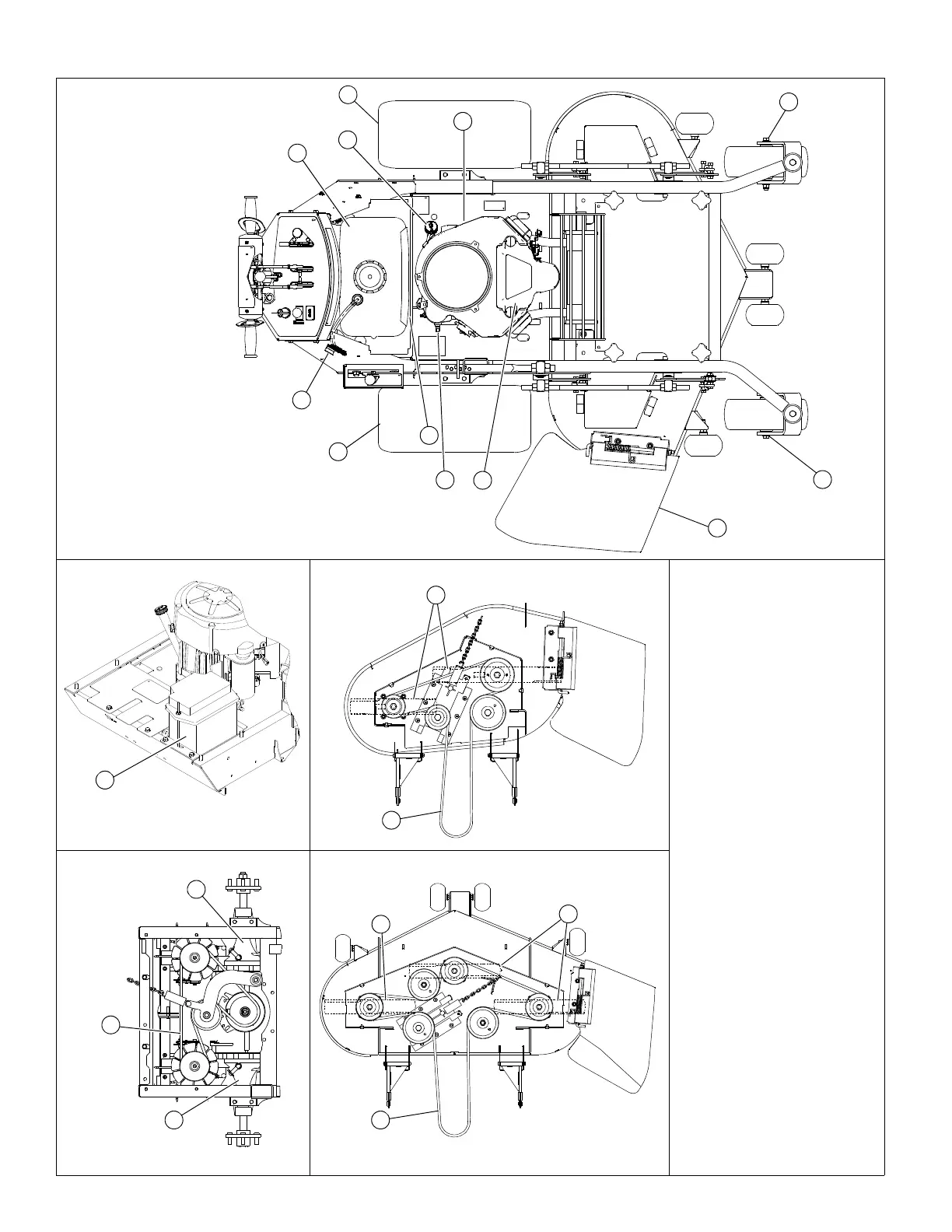

Maintenance Locator Chart
Figure 8-1
Figure 8-2 Figure 8-3 1. Engine oil fill & dipstick
2. Fuel filter
3. Engine air cleaner
4. Engine oil drain
5. Fuel tank
6. Engine oil filter
7. Drive tire
8. Gauge wheel bearings
9. Blades
10. Discharge chute
11. Deck drive belt
12. Pump belt
13. Transaxle oil filter
14. Evaporative emission
system filter
15. Battery
Figure 8-4 Figure 8-5
8
10
7
7
8
5
4
3
2
1
14
6
15
11
9
36” Side Discharge Deck
12
13
13
9
9
11
48”/54” Side Discharge Deck
