Huvitz CCP-7000 - 2-4 PCB Layout and Functionality

6

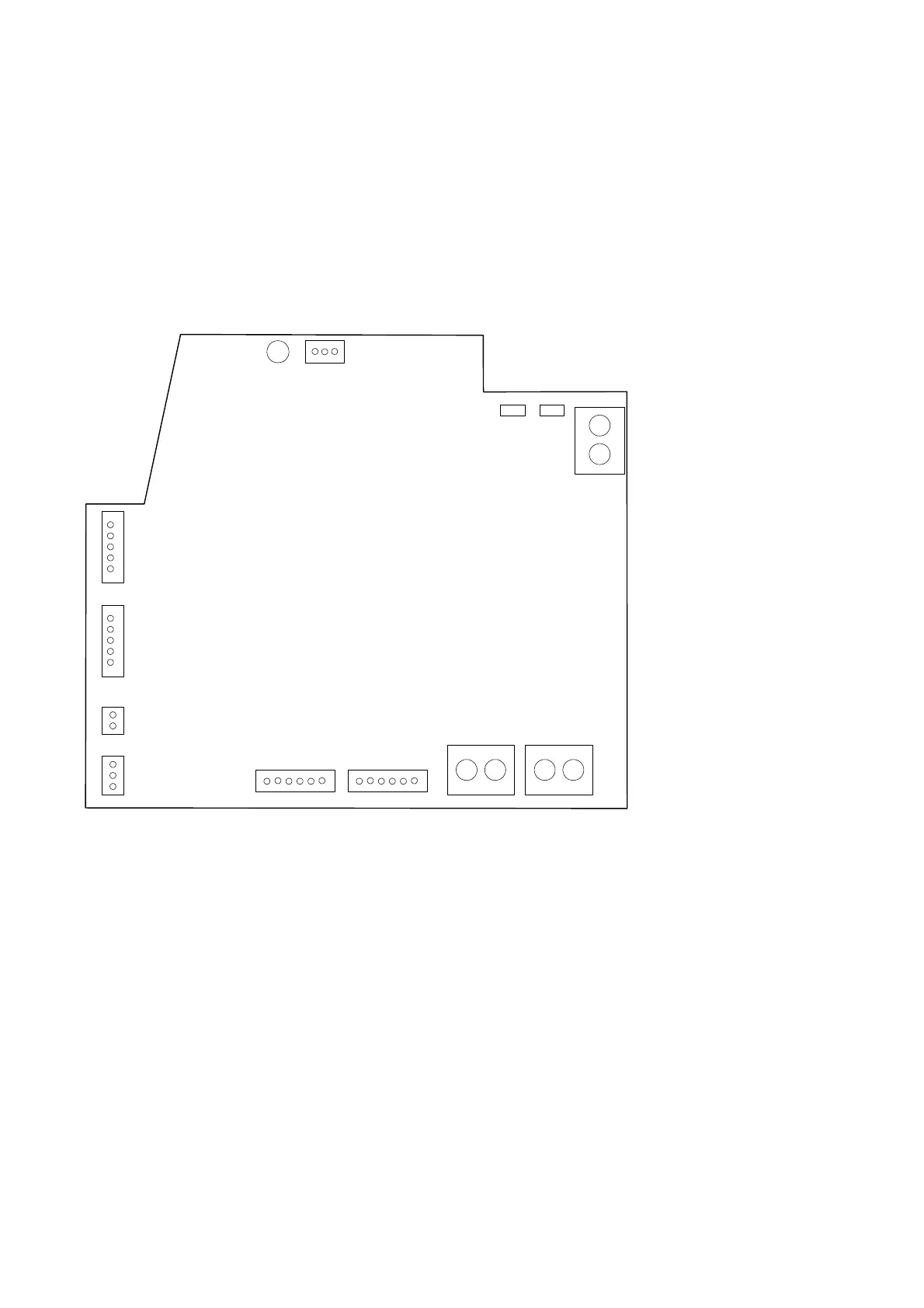

2-4 PCB layout drawing
2-4-1 CONTROL PCB
J5
J7
J3
J2
J10 J9
J12 J11
J1
U1
PILOT
LAMP
D5
D4
< Fig E3 >
J1: To connect TRANSFORMER(18V/AC) ASSY(2pins)
J2: To communicate RS-232(3pins)
J3: To communicate CAN(2pins)
J5: To connect CHART PI ASSY(5pins)
J7: To connect MASK PI ASSY(5pins)
J9: To connect MOTOR(CHART) ASSY(6pins)
J10: To connect MOTOR(MASK) ASSY(6pins)
J11: To connect TRANSFORMER(6V/AC 5A RED LINE)
J12: To connect LAMP(6V, 30W Halogen)
