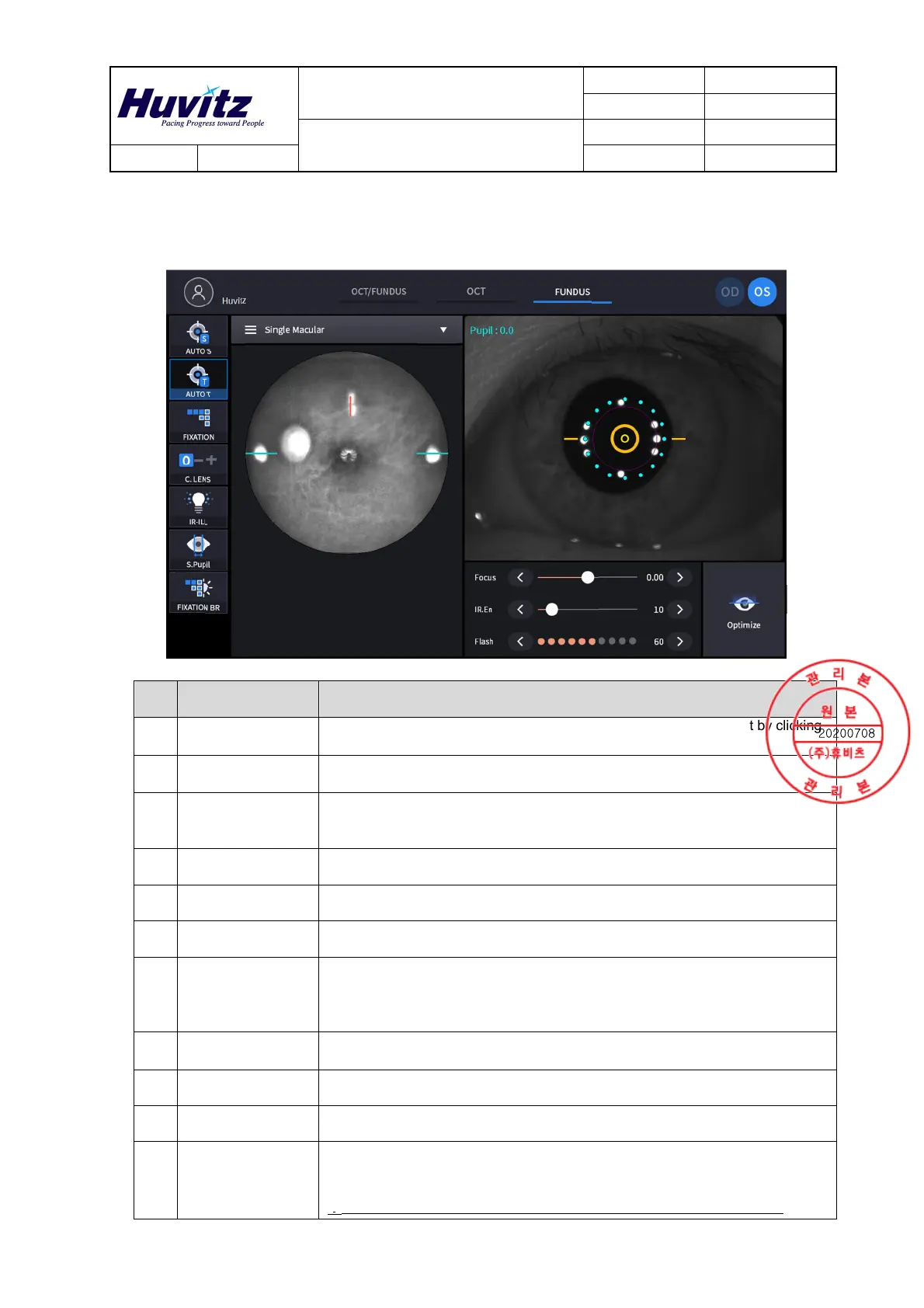

4. GUI Interface
1) Observation screen
No Name Function
1 Patient information
Shows the information of patient ID and name. Go back to patient list by clicking
the icon.
2 Observation mode
Show current observation mode.
Capture Fundus image.
3 OD/OS
Show current eye position.
- OD: right eye
- OS: left eye
4 AUTO S Show auto shooting selection status.
5 AUTO T Show auto tracking selection status.
6 FIXATION Select position of internal fixation target.
7 C LENS
Show compensation lens status.
0: No compensation lens is used.
-: Minus compensation lens is used.
+: Plus compensation lens is used.
8 IR-ILL
Select brightness level of IR light for fundus observation.
Normal / Bright mode is toggled by clicking.
9 S.Pupil Show small pupil mode selection status for fundus image.
10 FIXATION BR Control Fixation brightness.
11 Capture mode
Select capture mode.
- Single Macular: Capture one fundus image for Macular.
- Single Disc: Capture one fundus image for Optic Disc.
△
3
- Stereo Macular: Capture 2 fundus images for Macular stereo analysis.
❻
❽
⓫
❶
❷
❸
❺
❼
⓬
❿
❹
❾
⓭
⓮
⓯
