CVH8, HVH8, TVH8, VA9, HVA9, TVA9: APPLICATION GUIDELINE & SERVICE MANUAL
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
8
A200328

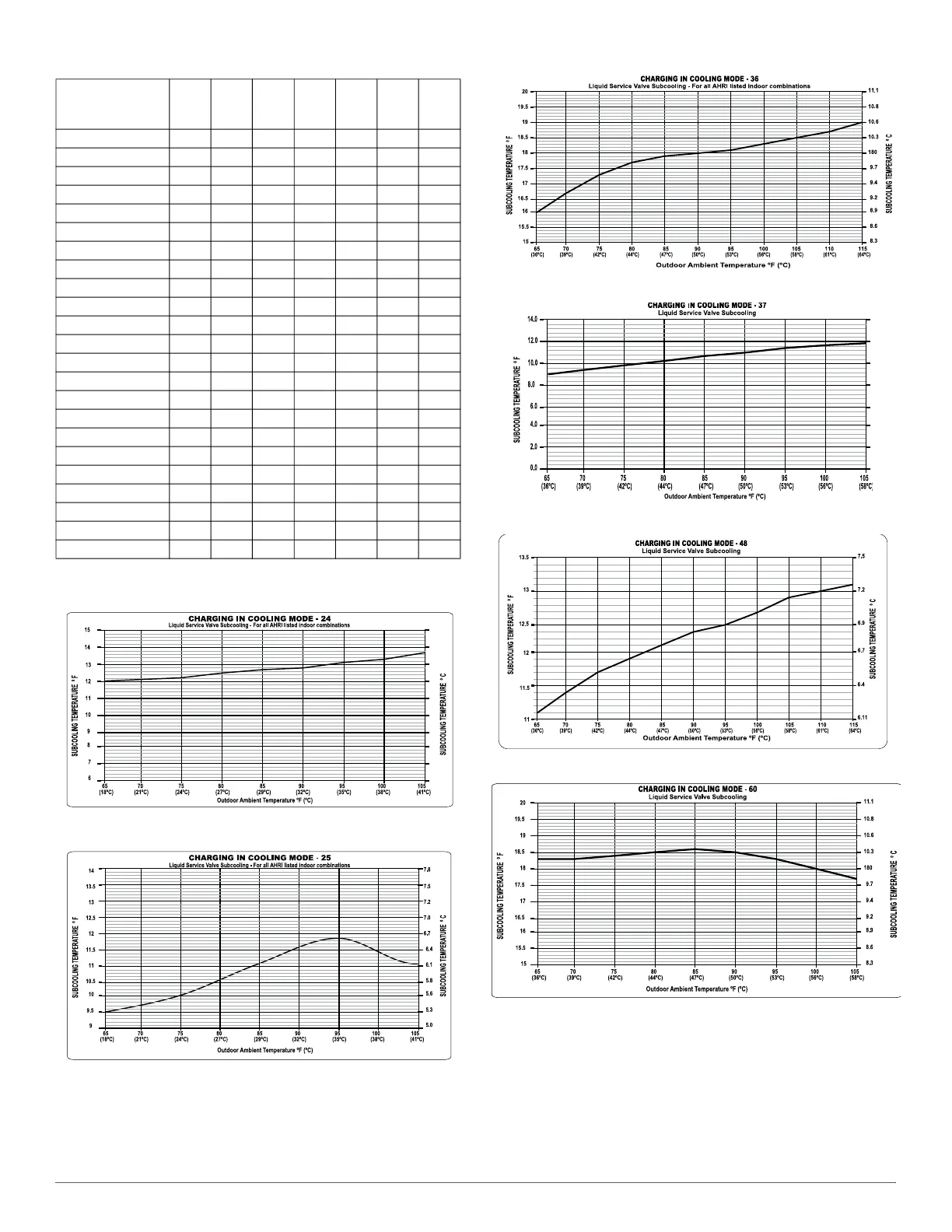

Fig. 9 – Charging in Cooling Mode CVH8, HVH8, TVH824
A200329
Fig. 10 – Charging in Cooling Mode CVH8, HVH8, TVH825
A200330
Fig. 11 – Charging in Cooling Mode CVH8, HVH8, TVH836
A200331
Fig. 12 – Charging in Cooling Mode CVH8, HVH8, TVH837
A200332
Fig. 13 – Charging in Cooling Mode CVH8, HVH8, TVH848
A200333
Fig. 14 – Charging in Cooling Mode CVH8, HVH8, TVH860
Table 5 – Required Charge Adjustment for Indoor Coil Model - AC
Furnace Coil
or Fan Coil
Model
24 25 36 37 48 49 60
EA*4X24 - - / / / / /
EHD4X24 - - / / / / /
EHD4X30 - - / / / / /
F(V,C)M4X24 / - - / / / /
EA*4X30 - - / / / / /
EN(A,D)4X30 - - / / / / /
ENH4X36 - - - - / / /
F(V,C)M4X36 / - - - / / /
EA*4X36 - +.50 - - / / /
END4X42 +.50 +.50 - +.75 / / /
EA*4X42 +.50 +.50 - +.75 / / /
EHD4X36 +.50 +.50 - +.75 / / /
EHD4X42 +.50 +.50 +.75 +.75 / / /
EN(A,D)4X31 +.50 +1.25 +.75 +.75 / / /
EN*4X48 +.50 +1.25 +.75 +.75 - - /
EHD4X48 +.63 +1.25 +.75 +1.00 - - /
EN(A,D)4X37 +.63 +1.25 +.75 +1.00 - - /
EN(A,D)4X43 +.63 +1.25 +.75 +1.00 - - /
EA*4X48 / / +.75 +1.00 - - /
EN*4X60 / / / +1.00 - +.13 -
EHD4X60 / / / +1.00 - +.13 -
F(V,C)M4X48 .63 +1.25 +.75 +1.00 - +.13 /
F(V,C)M4X60 / / +.75 +1.00 +1.50 +.63 +1.00
/ = Comb. not allowed
- = No charge adjust for ID
