For your safety, please read the important precautions before installing and operating your
Speaker. The Hybrid L6A is based on the same advanced circuit topologies that have made
Hybrid products the choice of professionals for the past 30 years. The Hybrid L6A has been
designed for high operating efficiency and accurate sonic performance across the full audio
bandwidth, even under stressful conditions. The internal components are of the finest
available, and sub-assemblies are pre-tested before the final assembly. Each speaker is
“burned in” and thoroughly tested using precision audio testing equipment before shipping.
Finally, the Hybrid L6A incorporates extensive protective features to safeguard both the
internal circuitry and transducers. This proven combination of advanced design, quality
construction and comprehensive circuit protection is your guarantee for fail-safe reliability,
meaning you can depend on consistent, stable performance.
Mains 220–240Vac Input connector
Only use the cable supplied with this speaker to power up the unit (Powercon–South African
mains 3-pin plug)
DO NOT modify the cable in any way.
Inspect the cable before use and should any sign of damage be visible, replace the faulty
cable with another of the exact same type, available from your nearest authorised retailer.
INTRODUCTION
UNPACKING
INSTALLATION AND MOUNTING
Congratulations on your purchase of the new Hybrid L6A Powered Line Array Speaker, and
thank you for your confidence in the Hybrid brand. You are amongst the growing number
of audio professionals who have made Hybrid one of Southern Africa’s leading brands of
professional and commercial audio systems.
Please inspect the Speaker carefully immediately after unpacking. If you find any visible
damage, notify your supplier/retailer immediately. Be sure to save the carton and all packing
materials should you need to ship the unit back to your authorised service centre.
The Hybrid L6A speakers can be ground-stacked or hung/suspended together with the
associated 350mm pole accessory and fly frame.
The Hybrid L6A also includes integrated flying/ground-stack hardware, allowing for multiple
L6A/L6P cabinets to be coupled in a vertical line with the option of various individual splay
angles between 0° and 16° when flown.
The Hybrid L6A offers a 12-month “No-Quibble” carry-in guarantee, and should your
Speaker,in the unlikely event, be damaged upon receipt and inspection, we offer an exchange
immediately, provided that all packaging and cabling are returned in their original condition.
INPUT
LINK
2
3
4
5
6
9
8
7
1
4
1: Powercon IN connector
* 1 X 220 Vac Powered Link Cable 2m
* 1 X L6A Powered Line Array Speaker * 1 X XLR(Male) - XLR(Female) 2m
* 1 X User Manual
4: Speakon output connector 7: Preset selection button
2: Power ON-OFF- switch
5: Limit LED 8: INPUT connector
3: Powercon OUT connector
6: Level potentiometer 9: INPUT loop-through
What’s in the box:
1: POWERCON IN CONNECTOR
2: POWER ONOFF SWITCH
The main power switch, which switches the speaker ON or OFF. Once the speaker is switched
ON, one of the 5 preset LEDs will illuminate.
3: POWERCON OUT CONNECTOR
Mains 220–240Vac loop-through Output connector, allowing multiple Hybrid L6A speakers to
be powered by the same mains outlet.
Do not power (daisy-chain) more than 4 cabinets from the same mains outlet. Overloading
the power source may cause the line circuit breaker to activate and, in extreme cases, could
be a fire hazard.
Only use Powercon Output–Powercon Input cables to connect multiple speaker cabinets.
PAGE 5PAGE 4

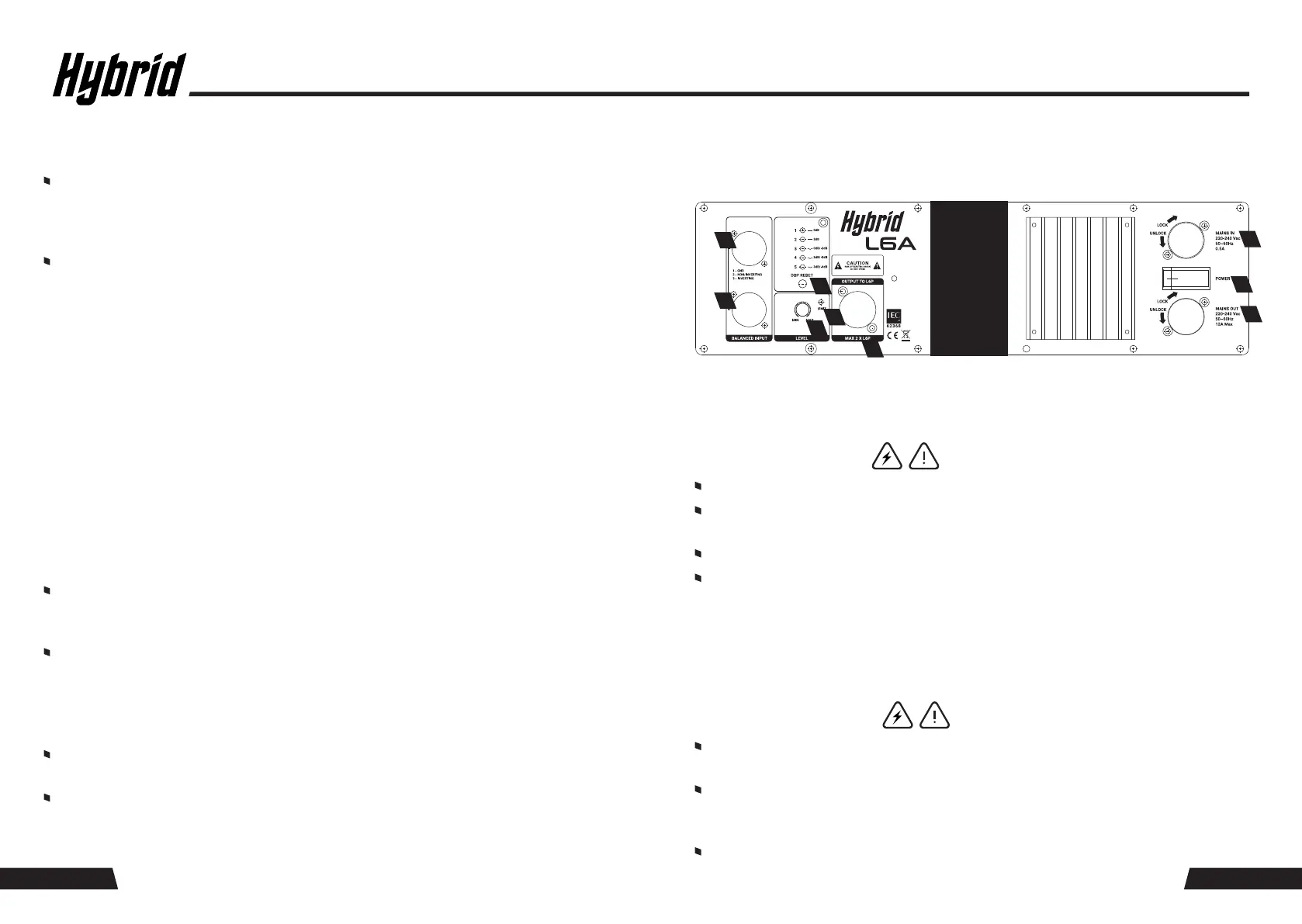

USER INTERFACE ELEMENTS
Rear Panel: L6A
