USER MANUAL - L6A, L6P, LS18A & LS218A POWERED LINE ARRAY
PAGE 9PAGE 8
DO NOT replace the blown fuse with a fuse of the incorrect value. Only replace the fuse with
another of the exact fuse rating as printed on the back panel.

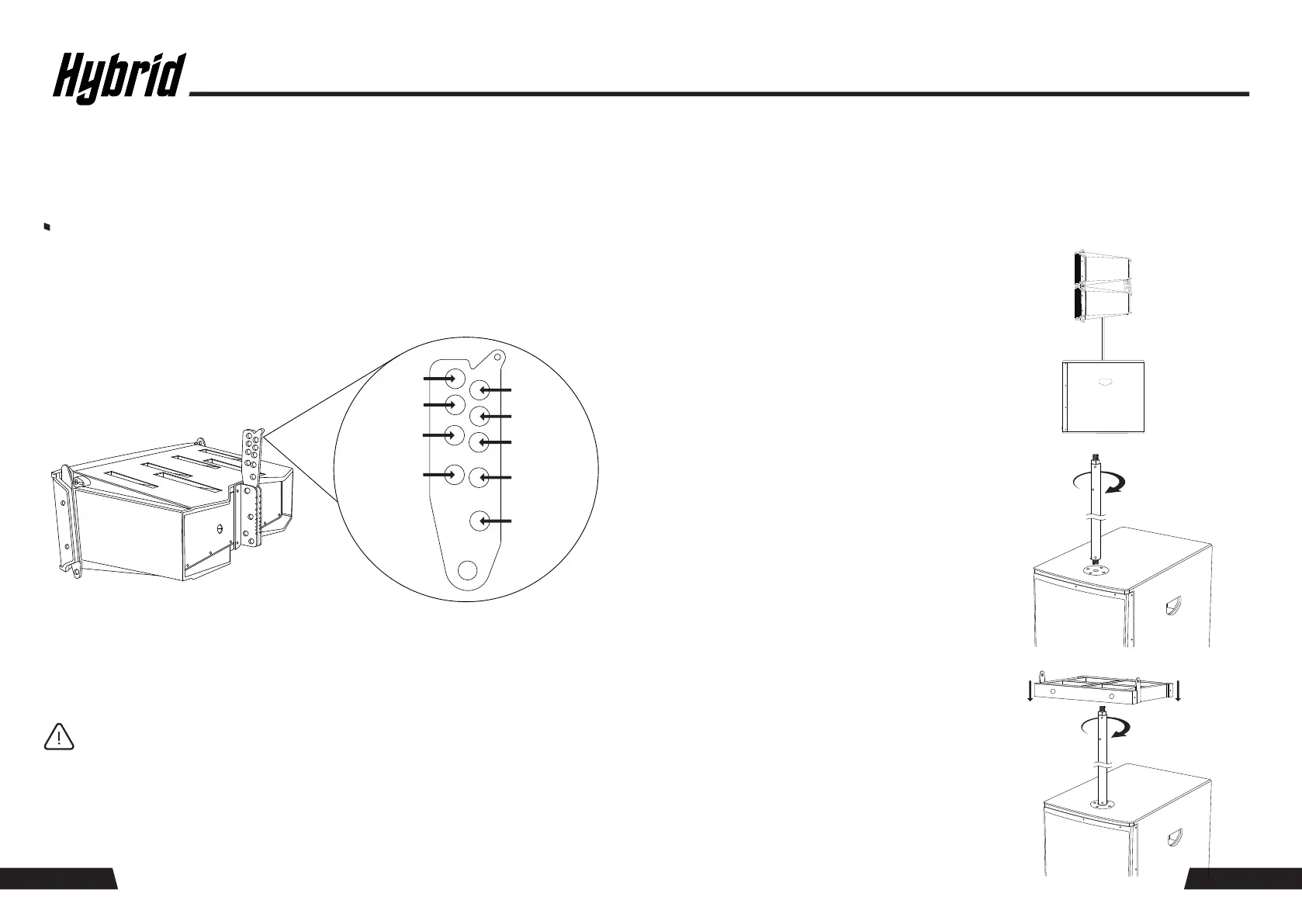

REAR RIGGING BAR
GETTING STARTED
The rigging bar is used for both ground-stacking and flown applications.
The rigging bar has multiple vertical splay angles between 0° and 16° as demonstrated
below, making various vertical curvature arrays possible, thus, suiting most venues.
Through careful project planning and the correct curvature integration, a smooth and
consistent SPL is achievable throughout the target audience.
1.5
º
13
º
16
º
10
º
6
º
3
º
0
º
4.5
º
8
º
USING THE L6A AS A GROUNDSTACKED APPLICATION
The Hybrid L6A line array cabinet is suited for most small to medium indoor or outdoor
applications. Its applications span being used as a stand-alone cabinet or a coupled array for
speech only to arrays with sub-bass cabinets for live events and DJ performances.
The Hybrid L6A can be used as a ground-stacked setup coupled together with the Hybrid
LS18A (single 18” powered sub-bass) for small indoor functions (up to 500 people) or coupled
with the Hybrid LS218A (dual 18” powered sub-bass) for larger indoor or outdoor functions
(up to 1000 people).
TIP: Connecting more than two L6P cabinets to one L6A cabinet will reduce the system
impedance to dangerous levels and may cause the system to malfunction, potentially
destroying the power amplifier within the L6A.
GROUND-STACK WITH AN LS18A
2:
L6P
M20 THREAD + LOCKNUT
M20 THREAD
M20 TOP PLATE
LS18A
L18P 900MM
L6A
LS18A
Attach the Hybrid L18P (900mm)pole to the
LS18A sub-bass cabinet by screwing tightly the
end with the shorter M20 thread clockwise onto
the integrated M20 top plate on the cabinet.
1: Place the Hybrid LS18A powered sub-bass speaker.
3:
M20 THREAD + LOCKNUT
LS18A
L6F
L18P 900MM
Attach the Hybrid L6F fly frame to the opposite
end of the Hybrid L18P pole by screwing the
longer M20 thread onto the integrated M20
threaded hole on the frame. Once the frame is
completely screwed in, place the frame in the
desired horizontal position and tighten the lock
nut provided on the L18P.
