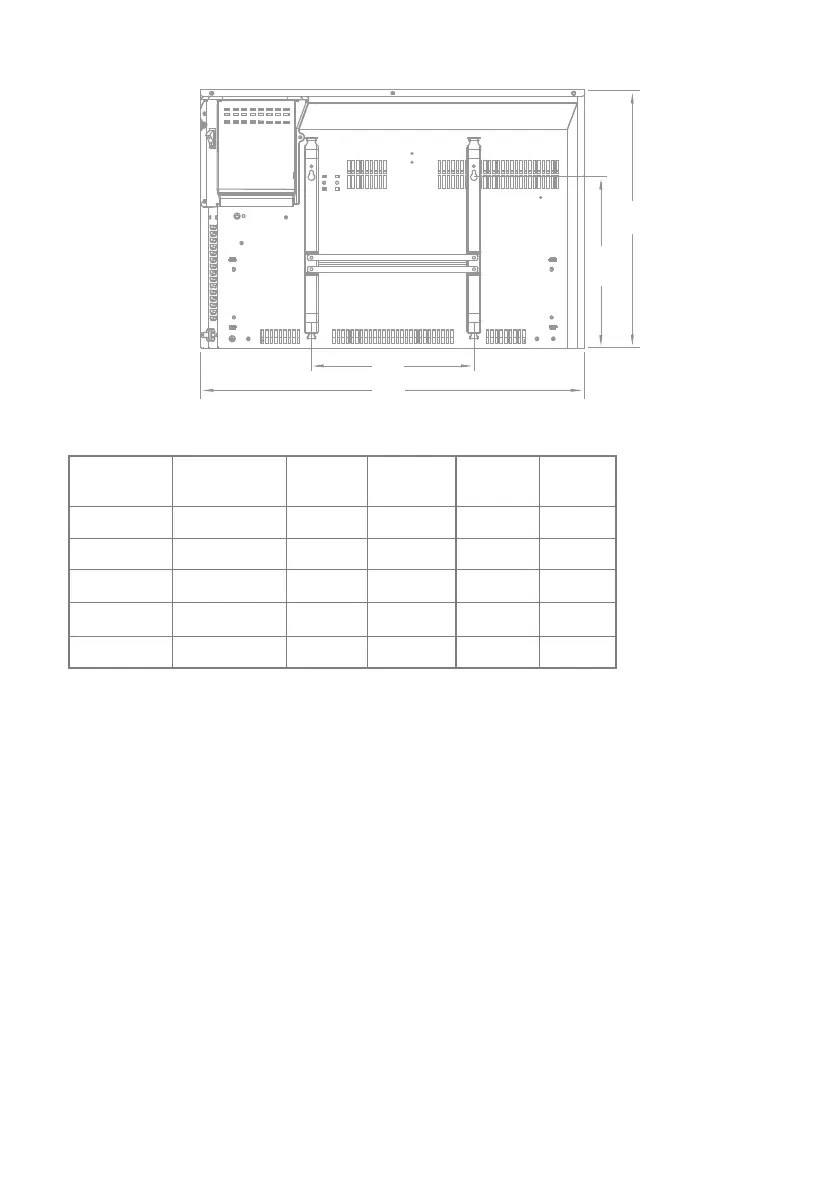

Model Power L H L1 H1
(W) mm mm mm mm
AC500T 500/250 460 400 155 254
AC1000T 1000/500 460 400 155 254
AC1500T 1500/750 595 400 250 254
AC2000T 2000/1000 830 400 250 254
AC2400T 2400/1200 950 400 254
•
Remove the bracket from the reverse of the heater by pinching the two tabs at the
top to release it from the unit, and then unhooking the lower two tabs by tilting
the bracket away from the heater.
•
Ensuring a horizontal level, offer the bracket to the wall and mark the four holes
located at each corner of the bracket.
•
Drill the four holes in the mounting surface and insert the wall plugs supplied.
•
Offer the bracket up to the holes before inserting the four screws supplied. Ensure
the screws are fully tightened and that the bracket holds firm to the wall.
•
Offer the heater to the bracket and locate the lower bracket lugs into the
corresponding slots in the back of the heater by tilting the heater forward.
