6 Aqua Sensor AS 1000
Edition: 2017-07-17 HYDAC ELECTRONIC GMBH Part No.: 669705
E
4.1.1 Working range for AS 1008 (for mineral oil based fluids)

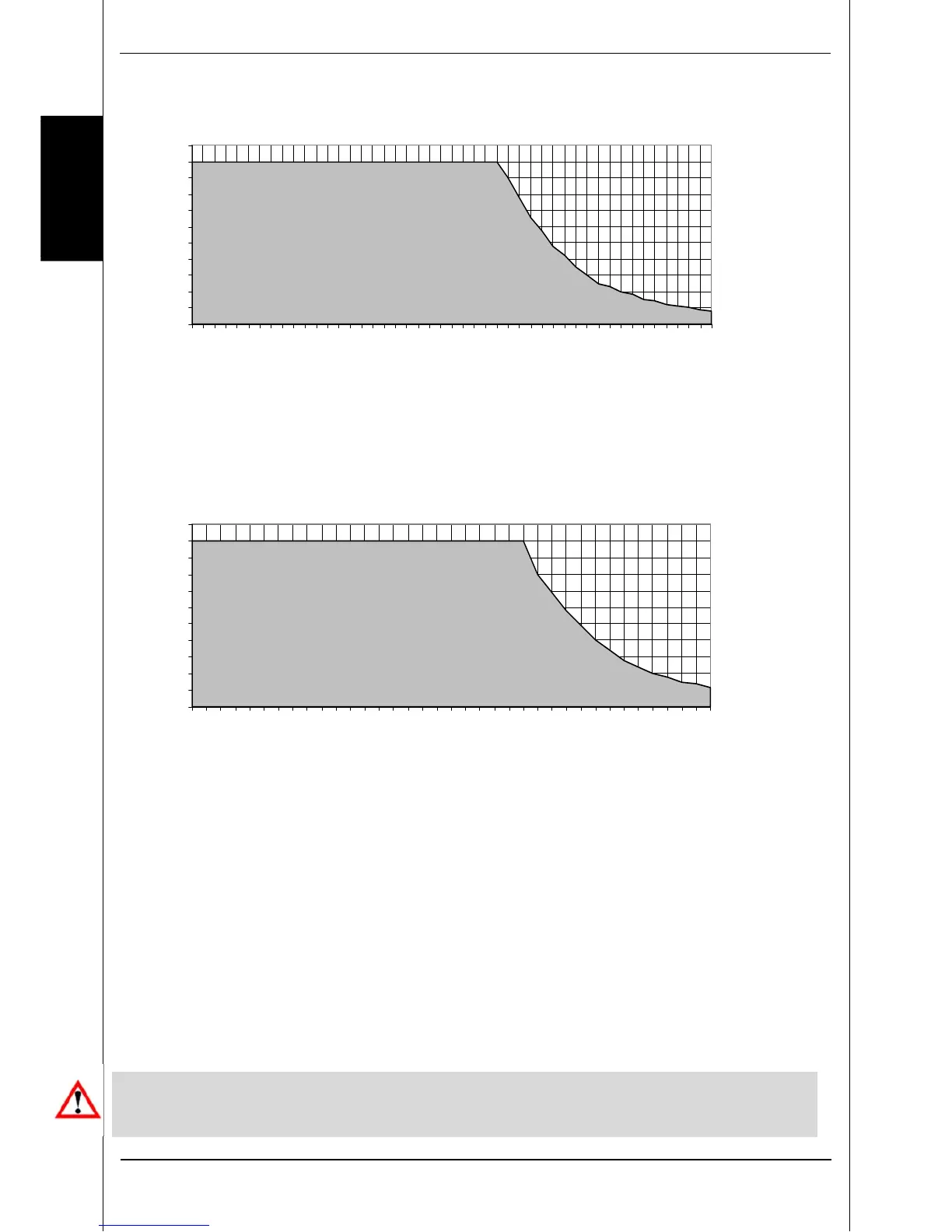

The graph shows the permitted working range for AquaSensor AS 1008. If the sensor is
operated permanently outside the range indicated in grey, lasting damage can occur to the
sensor element.
4.1.2 Working range for AS 1108 (for synthetic and natural esters)
The graph shows the permitted working range for AquaSensor AS 1108. If the sensor is
operated permanently outside the range indicated in grey, lasting damage can occur to the
sensor element.
5 Functions
5.1 Model with analogue outputs
The analogue outputs 1 or 2 can be used to display the following measured values within
their range:
Saturation level: 0 % ... 100 %
Temperature: -25 … 100°C
The outputs are pre-set (default) as current outputs (4 ...20 mA source).
Caution!
If the display shows 100%, this means either free water or defective sensor.

0
10
20
30
40
50
60
70
80
90
100
110
-40 -25 -10 5 20 35 50 65 80 95 110 125 140 155 170 185
Temperature [°C]
Saturation level [%
]

0
10
20
30
40
50
60
70
80
90
100
110
-30 -20 -10 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140
Temperature [°C]
Saturation level [%]
