K500 Auto Hydroheater – 3.5 Rev: 8-2016
© Hydro-Thermal Corp., 2014. All rights reserved
Hydroheater, Solaris, Jetcooker, EZ Heater and K5 Autopilot are trademarks of Hydro-Thermal Corp, and are protected under
U.S. and Canadian patents.
8.0 Illustrated Parts List
8.1 Exploded View – K500
Note - Mounting bracket shown (Item 27) is only used on K513 and larger
heaters.

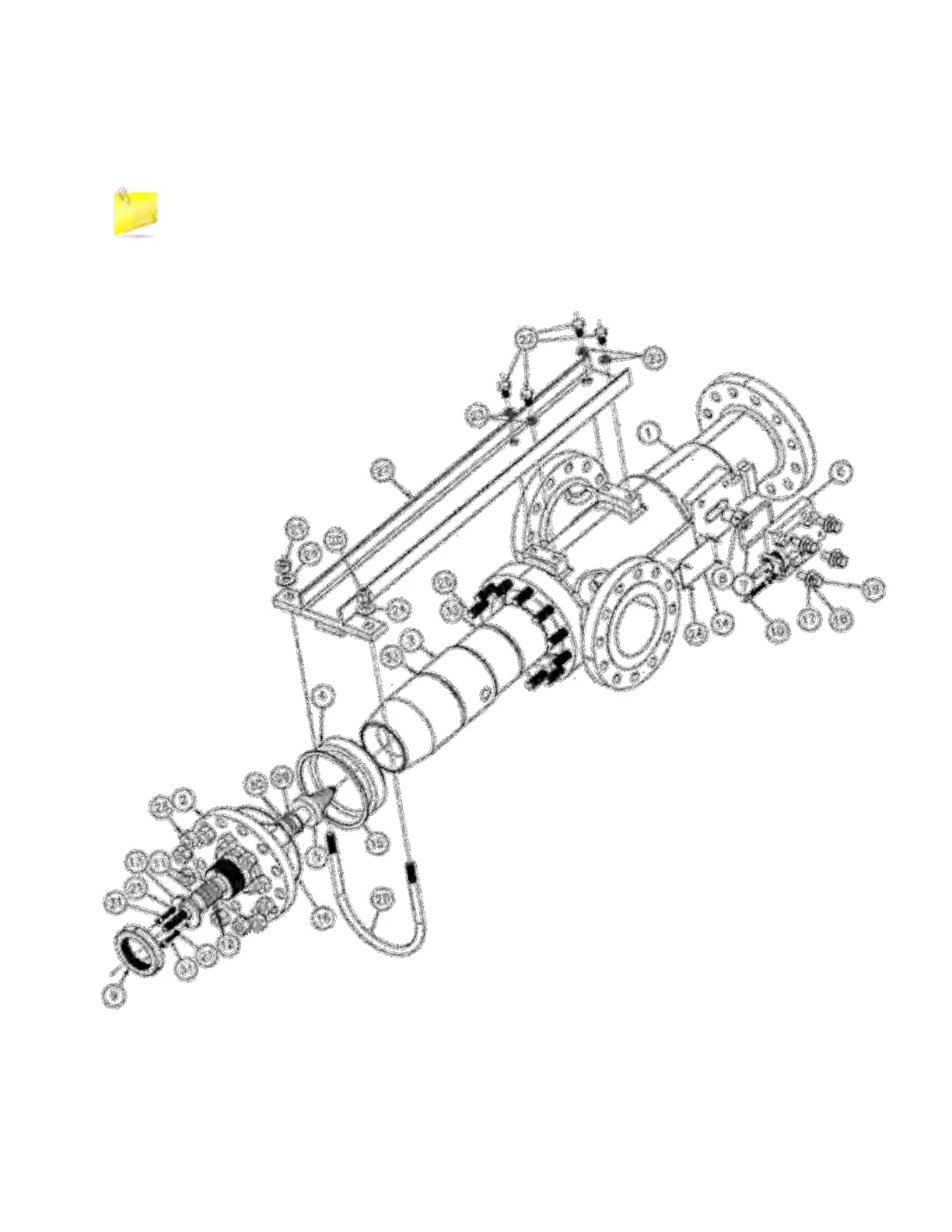

Figure 29: Exploded View of K500
