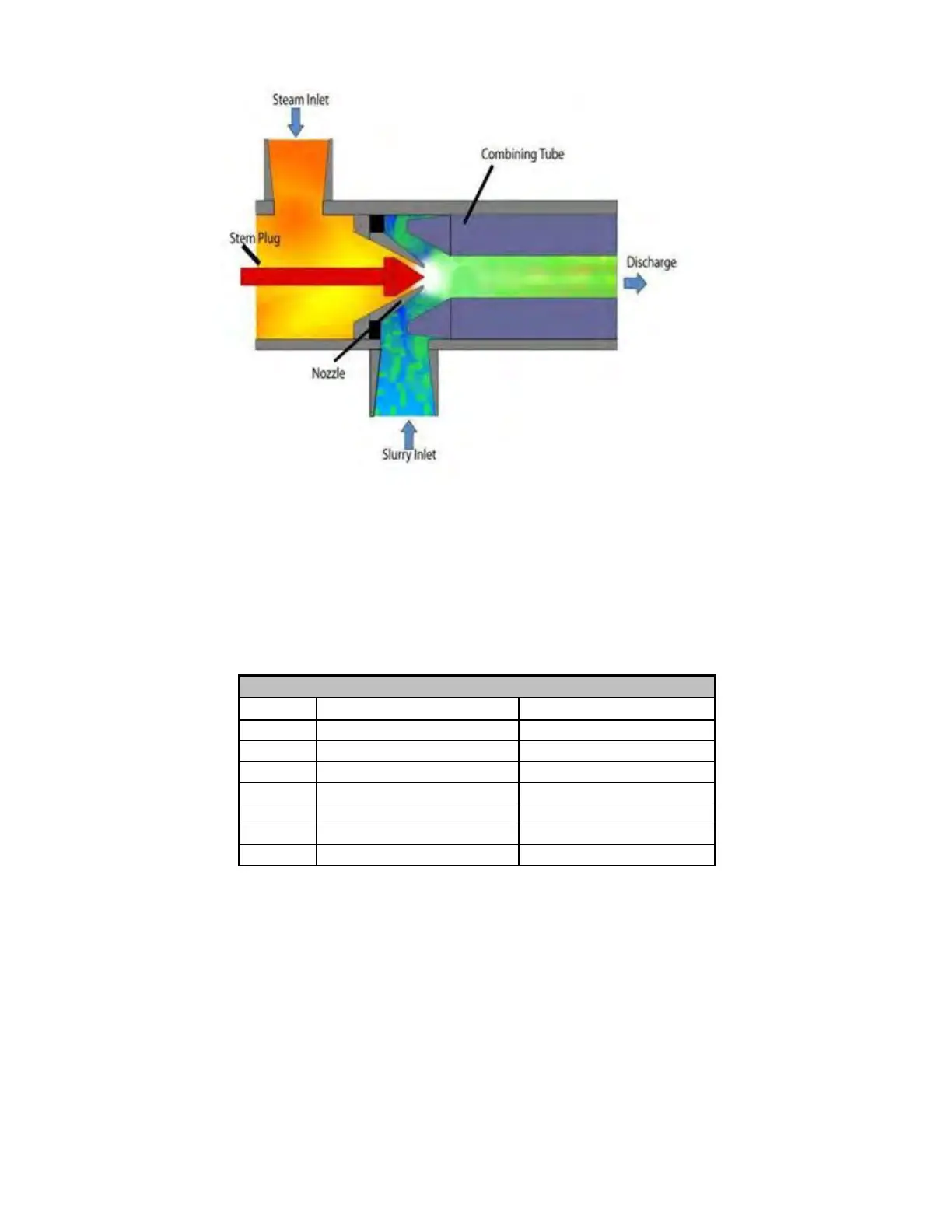

Figure 1: How the K500 Hydroheater Works
1.5 Model Number Designation, Dimensions and Capacities
1.5.1 Explanation of Model Numbers
The last two digits of the model number indicate the size of the Hydroheater.
Table 1: Explanation of Model Numbers
Model
Connection in inches [mm]
Discharge in inches [mm]
K510
2.5 inches [64 mm]
2.0 inches [51 mm]
K511
3.0 inches [76 mm]
2.0 inches [51 mm]
K512
3.0 inches [76 mm]
2.5 inches [64 mm]
K513
4.0 inches [102 mm]
4.0 inches [102 mm]
K514
6.0 inches [152 mm]
6.0 inches [152 mm]
K515
8.0 inches [203 mm]
8.0 inches [203 mm]
K516
10.0 inches [254 mm]
10.0 inches [254 mm]
1.5.2 Location of Markings on Body
Figure 2 shows the location on the body of the serial number and Figure 3 shows the
model number. The serial number is stamped on the steam inlet. The serial number
and model are also stamped on the nameplate.
