28. Move valve now to set pressure range, hi – lo yes, enter/1.
29. Calibration Complete OK, OK.
30. Select – in service to put it back in service.
31. Shut off HART Communicator.
32. Increase and decrease mA generator signal and verify indicator follows
generator values. Should start opening at 4.2 mA and should start closing at
19.9 mA.
33. If it doesn’t start opening at 4.2 mA, redo the setup again. If that still doesn’t
work use the bench set procedure and recalibrate again.
34. Remount linkage cover.
On DVC 6010HC Positioner – plug the output B hole and crank the little
adjustment wheel in the proper direction. This will make it compatible with a
single acting actuator. This type of positioner can be set up for double acting
actuators.

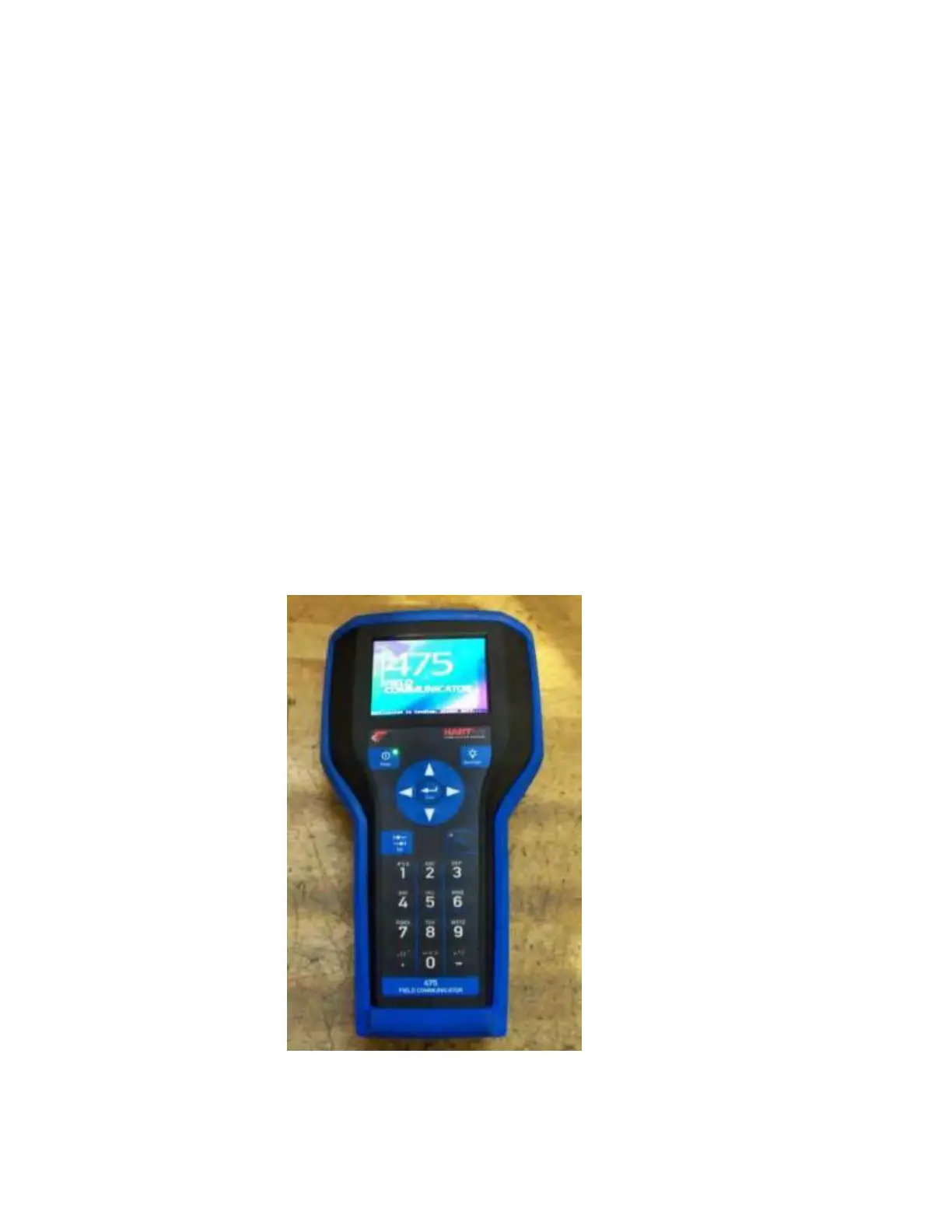

Figure 33: 475 HART Communicator
