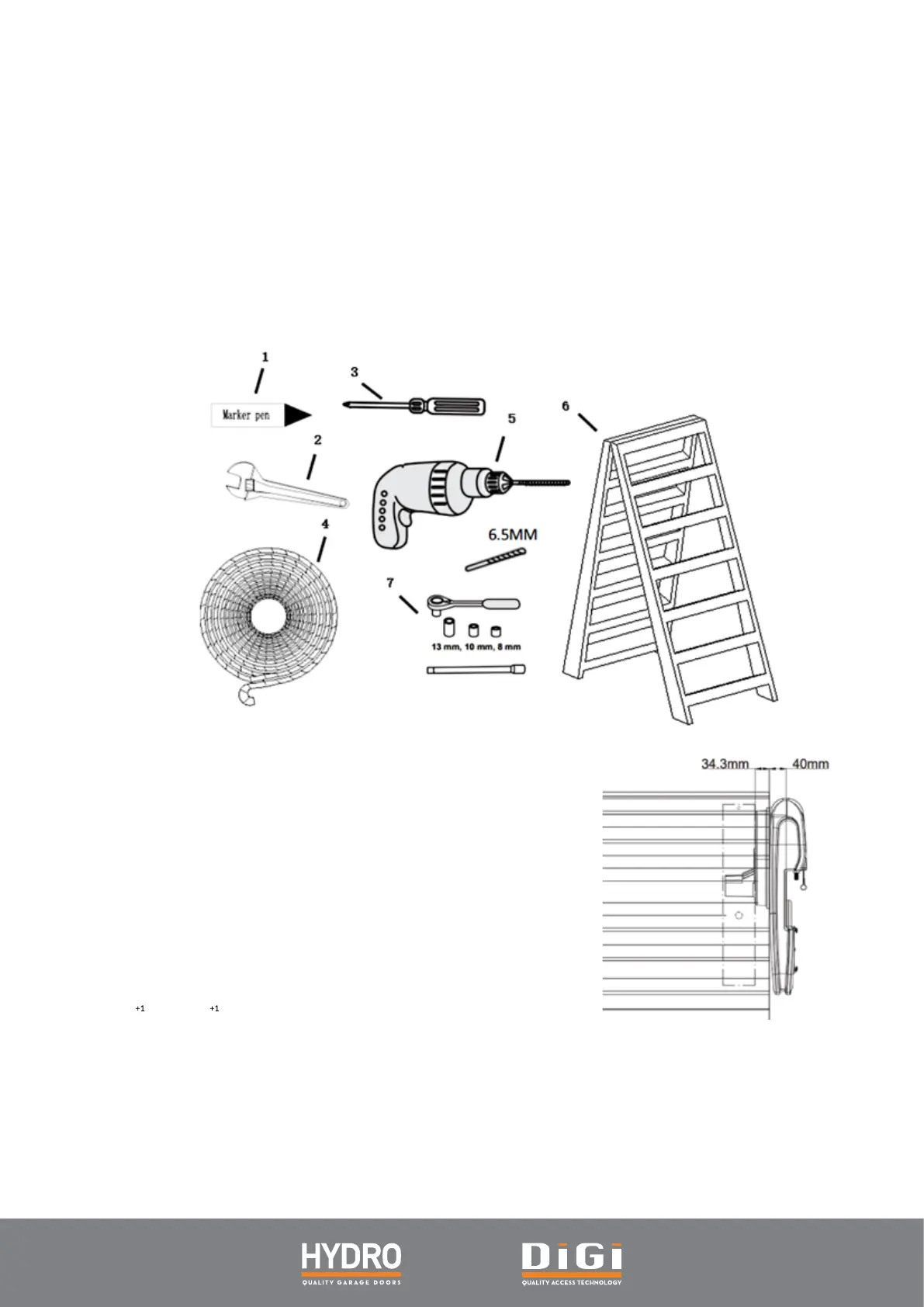

2. TOOLS
1. Marker pen
2. Adjustable wrench for U-bolts already installed on the door (2)
3. Philips-head screwdriver
4. Rope
5. Drill and 6.5mm drill bit
6. Ladder
7. 8mm, 10mm, 13mm sleeve, 300mm extension sleeve (for narrow side mounting)
and socket wrench
Note: Main opener body thickness: 88mm (not including wheel drum). Motor opener body
thickness after lithium battery installed: 93mm (not including wheel drum).
06
3. DOOR REQUIREMENTS
1. Maximum door weight: 130 kg.
2. Maximum door height: 5 m.
3. Maximum curtain area: 20 m2.
4. Protector System (Safety Beams) must be installed if the
force at the edge of closing door exceeds 400N (40 kg).
5. Applicable to door shaft diameter range is
34
-0.5
mm / 32
-1
mm (Optional)
6. Ensure there is a distance of at least 40mm from the edge of the curtain to the edge
of the bracket. If the clearance is small, the rolling door opener cannot be installed.
Please increase the clearance before installation.
