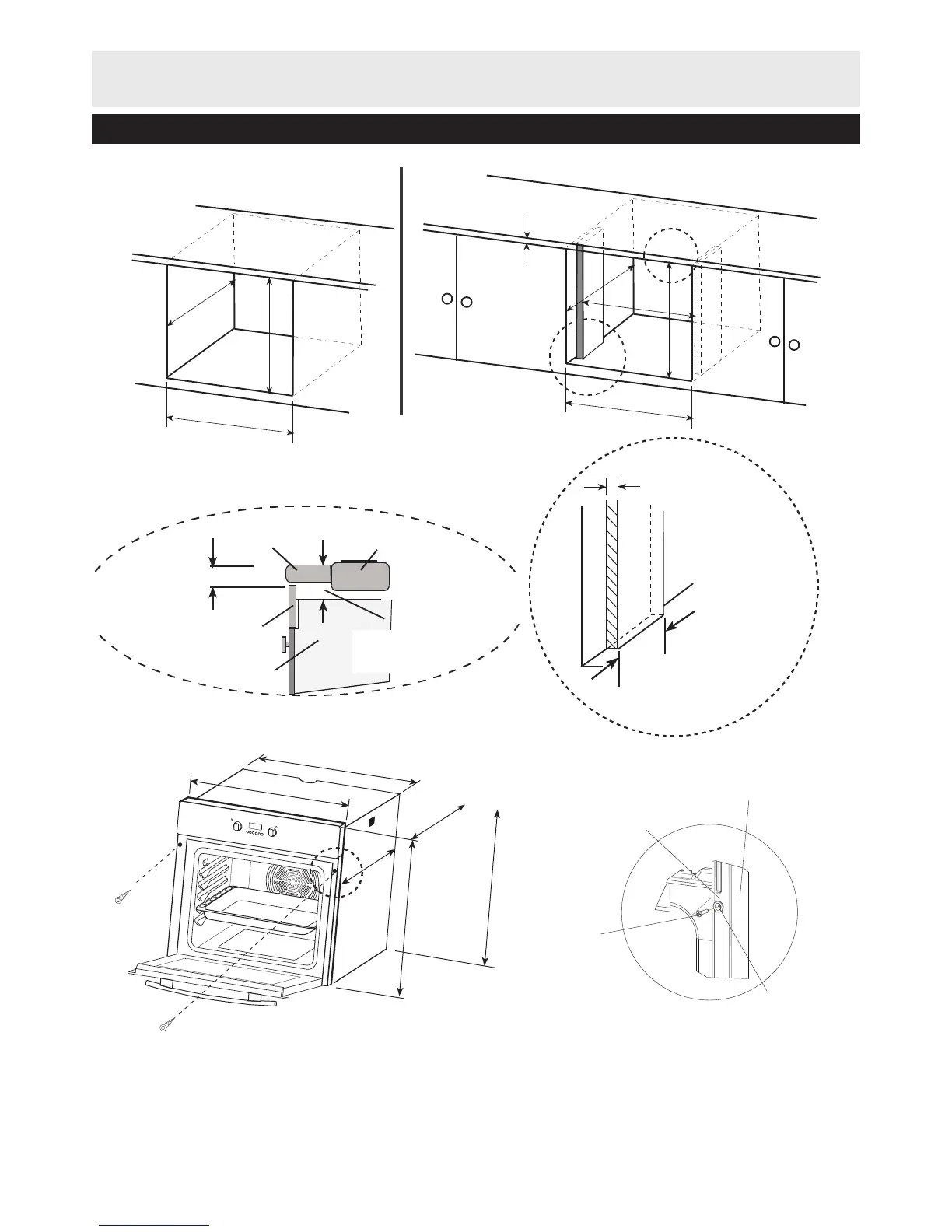

You can use either cabinet 1
or cabinet 2 cut-out sizes
A
B
600mm
Min 25mm
580mm
560mm
600mm
555mm
600mm
560mm
A DETAIL
20mm
Minimum 40mm(The wooden
part can be extended up
to cut-out depth)
Product sizes
B DETAIL
Countertop
Built-in oven
Min.25mm
Control
panel
Distance between
countertop and
control panel
Min. 50mm
Built-in hob
Distance between
countertop snd
top panel of built-in
oven
C DETAIL
Front
frame
Spacer
Mounting
screw
Wooden
part
Insert the oven into cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes
located on the oven frame. While the product frame touches the wooden surface of cabinet, tighten the
screws.
Cabinet cut-out sizes
6
OPTION 1: Regular Installation
OPTION 2: Flush Installation
C
555mm
555mm
570mm
570mm
595mm
595mm
Installation
Customer Helpline 0845 600 4632
