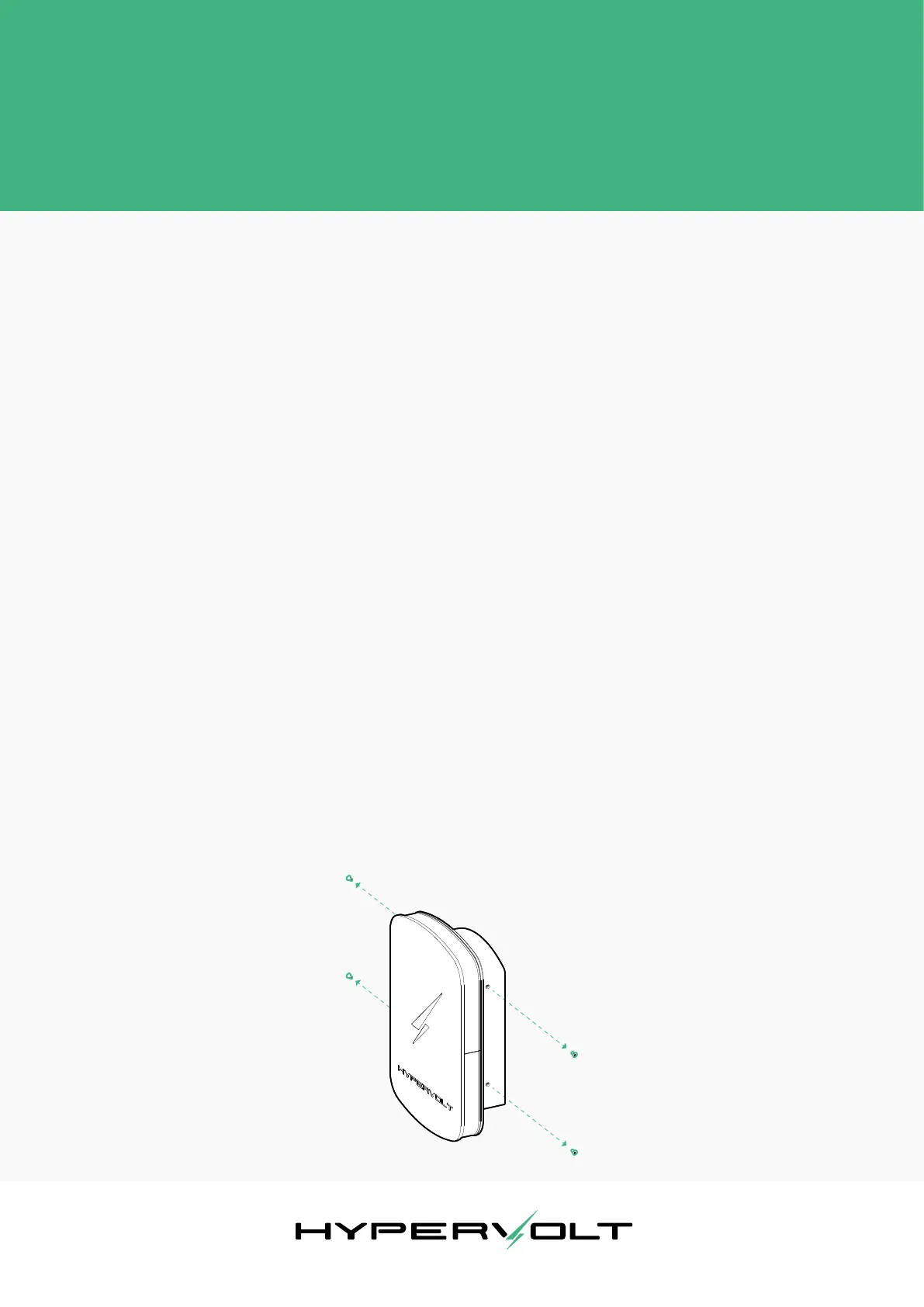

Diagram 1
: The front cover is
secured by 4 x M4 T20 Torx
1. Positioning the Hypervolt Home
2. Preparing the Hypervolt Unit
Hypervolt Limited, Unit 17, Innovation Business Centre, Rainham, RM13 8HZ, UK 4
Revision 1. Issue date: Feb. 2020
Before the Installation
We advise that this should be the rst action to be completed
on site. The installer should consult the customer and
establish their preferred installation location. This should
take into consideration the cable length (distance to vehicle
being charged), risk of vehicle impact and obstruction
of access.
Keep inn mind that the customer may change their mind
with regards to the charger location once into place and it
is desirable this happens prior to routing any of the cables.
The Hypervolt Home 2.0 can be tted indoors or outdoors.
In order to install the Hypervolt unit you will need access to
the main wiring terminal inside the device. Place the unit on
a secure surface and using a T20 Security Torx screwdriver,
remove the 4 off screws (2 on each side) which secure the
front cover in place.
500-1200mm (according to BS7671:2018
and BS8300:2018)
Recommended Installation Height
