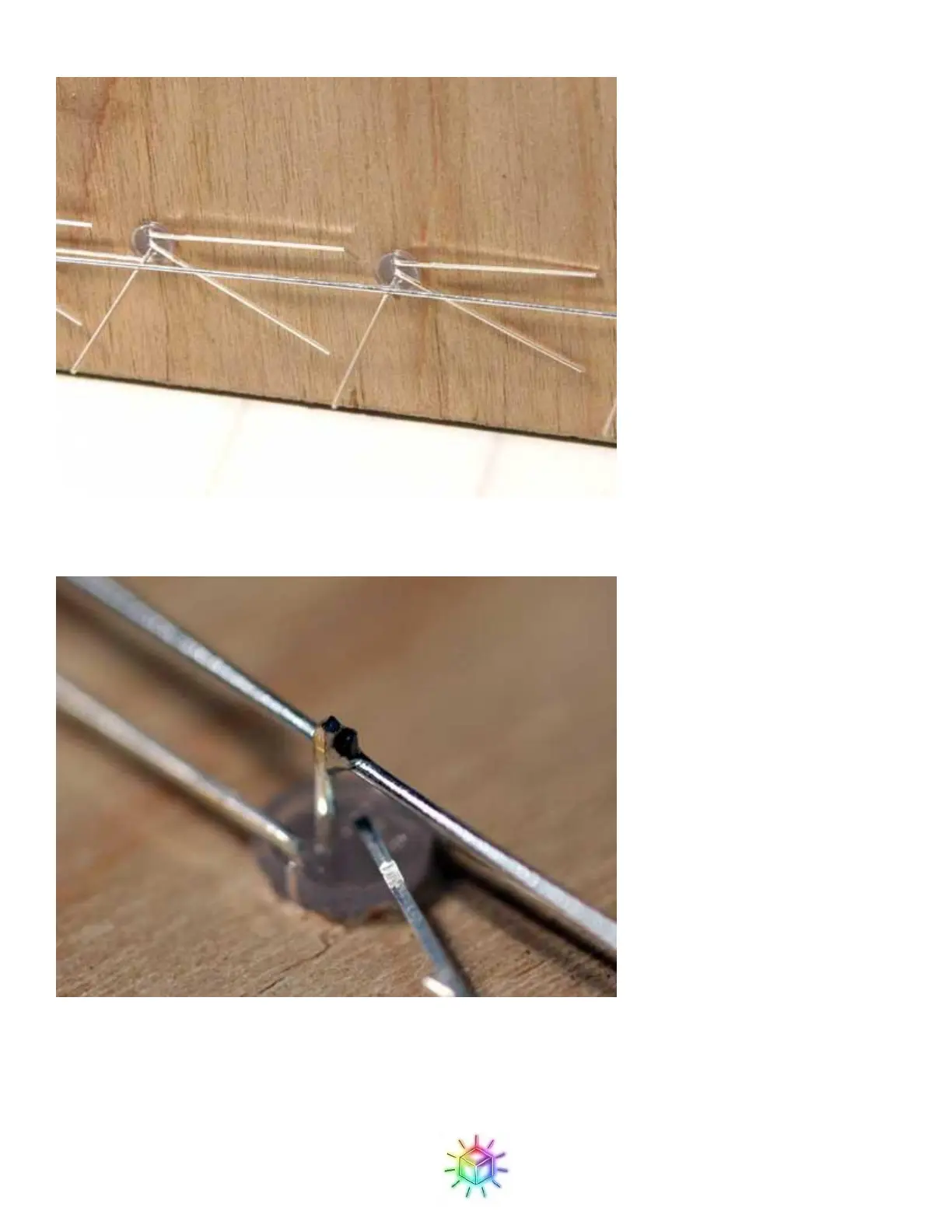

Figure 36: The cross wire atop the LED ground wires.
Figure 37: Close-up of cross wire soldered onto an LED.
To hold the cardboard jig stable while soldering, two books work well, as shown Figure 38. Do not let the cross
wires touch any leads besides the ground leads from the LEDs.
