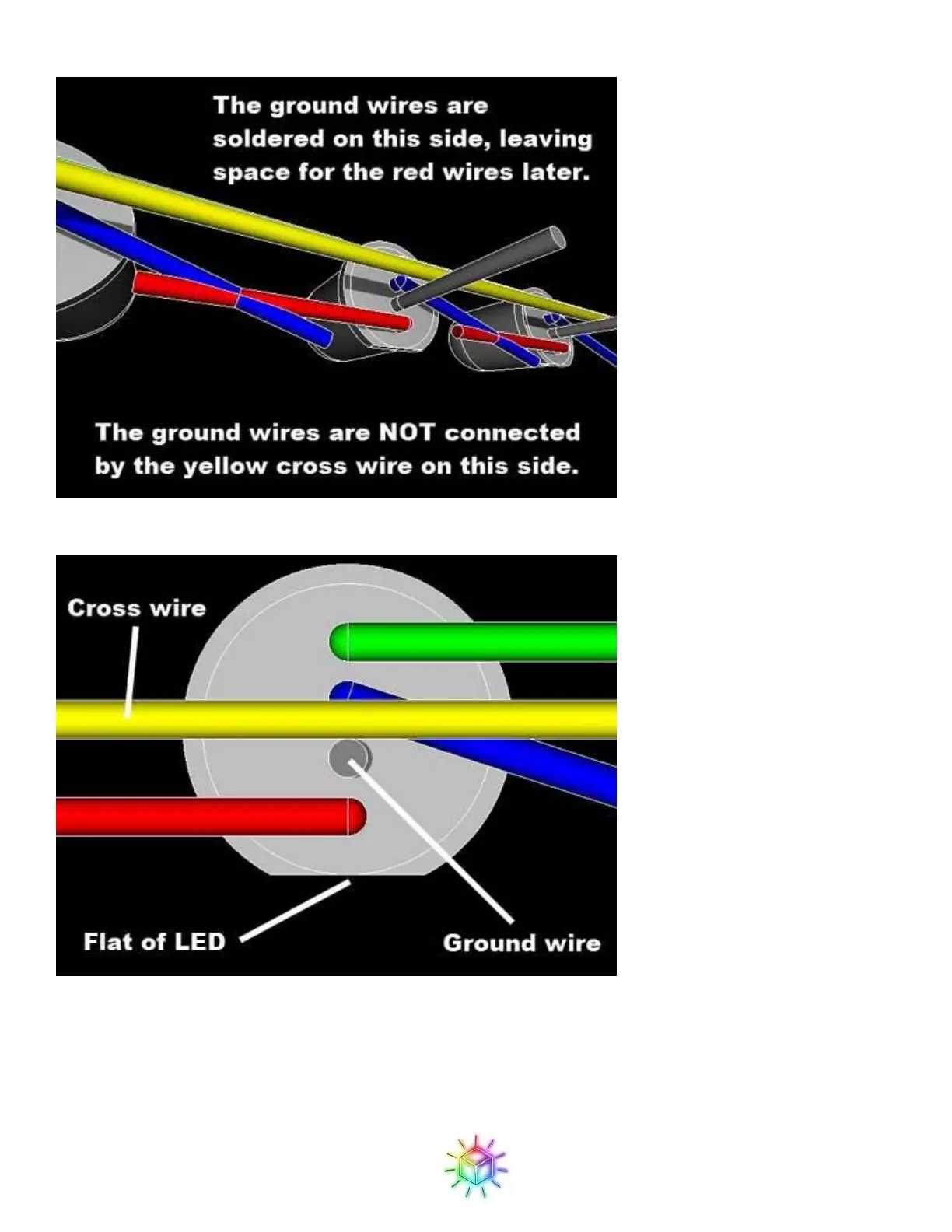

Figure 34: The cross wire (yellow) position.
Figure 35: The cross wire (yellow) position.
Now you can solder a wire down as in Figure 34, with the cross wire on the correct side and centered, with
equal amounts hanging off either ends. You want to solder fairly close to the LED, at the same distance all the
way across, and at the same height on ALL eight strips you will make. The small flat spot on the LED lead is a
good reference point, but the exact distance isn't critical – the point is to be consistent.
