Hypnocube 4Cube Instructions v 6.5, December 2013
- 25 -

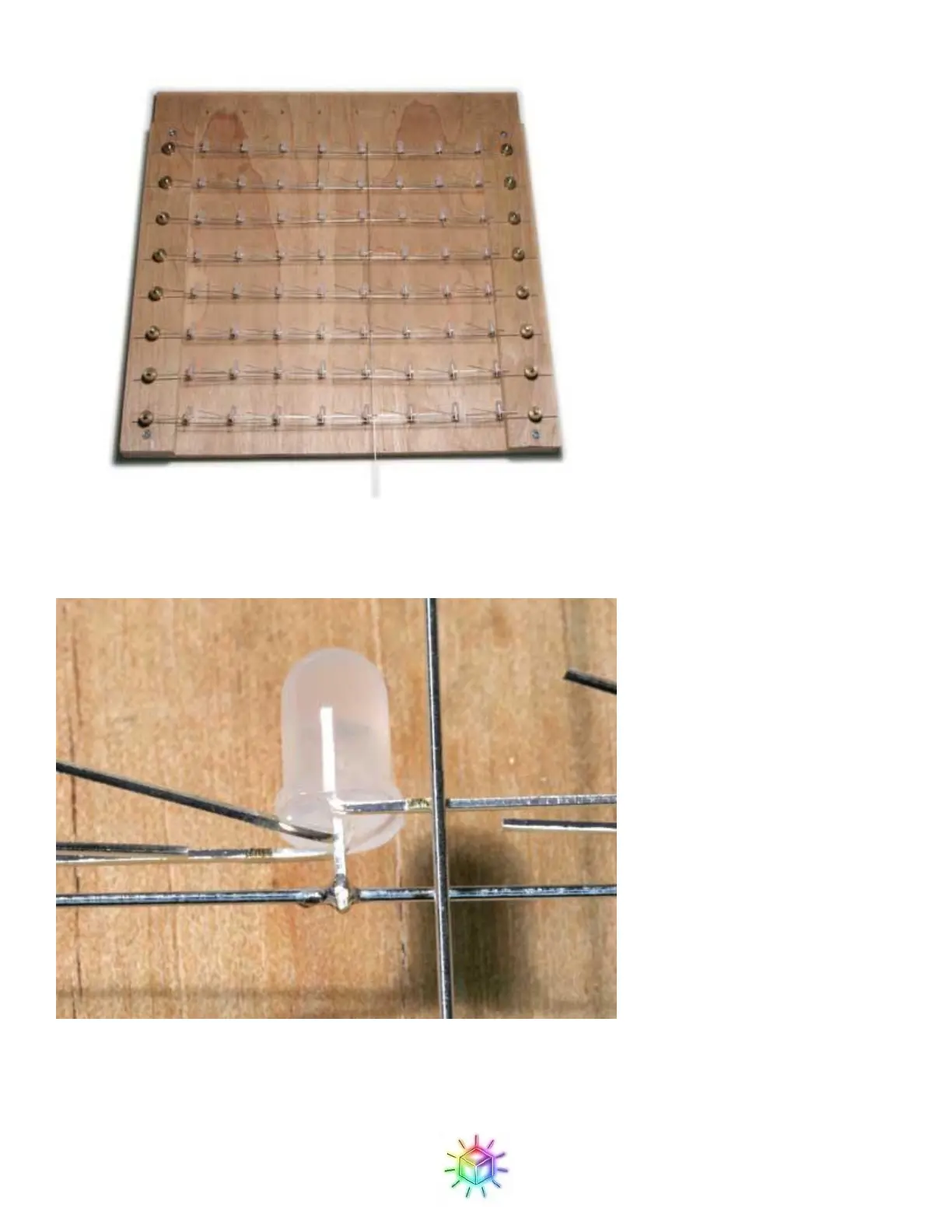

Figure 44: Placing the first wire. Note that the extra length is entirely at the bottom.
Solder the drop wire at about the flat spot on the red lead – Figure 46 shows the correct spacing.
Figure 45: Close-up of spacing for drop wire.
Like when soldering the strips, you can start at one end and work to the other, or start in the middle and work to
the ends, whichever you find easier.
