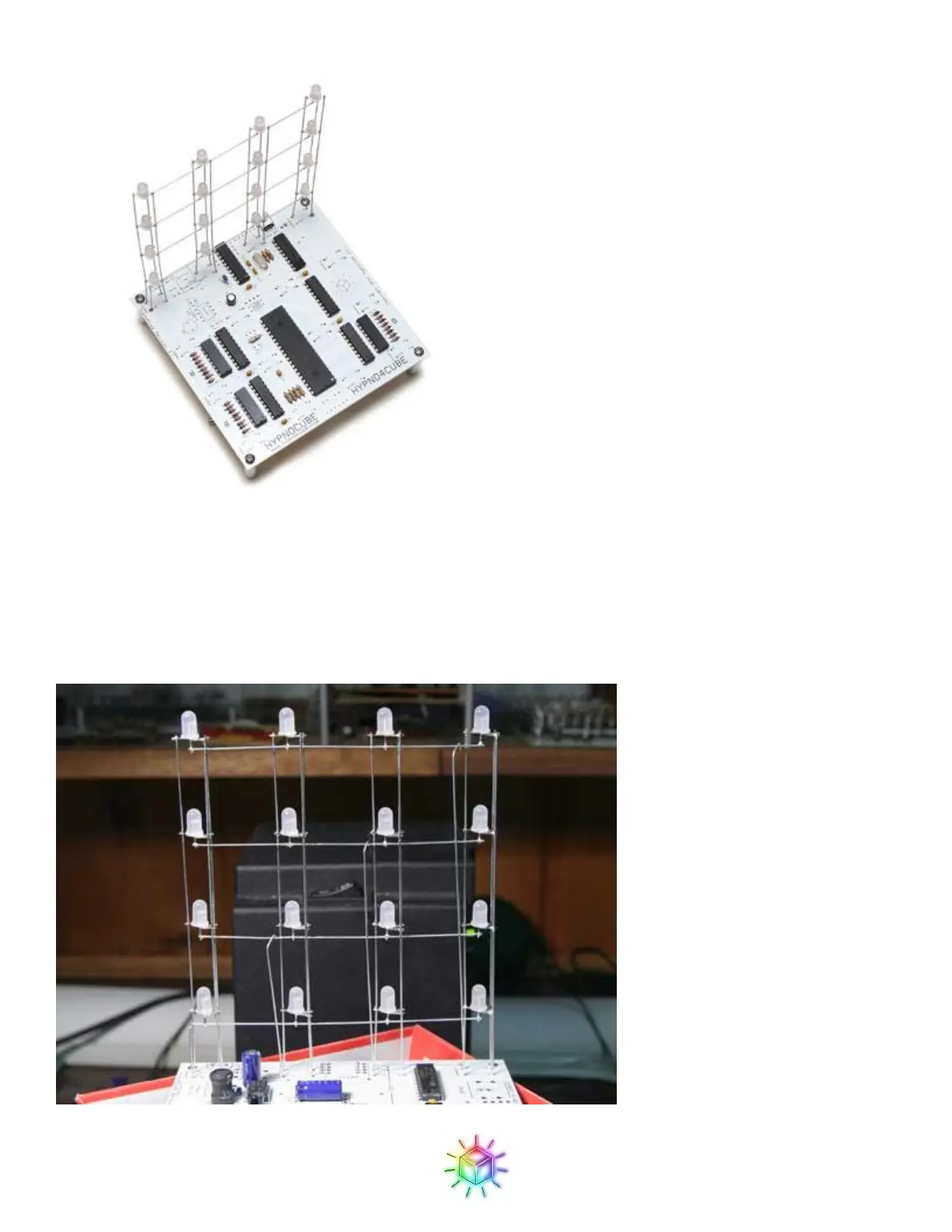

Figure 68: First grid attached.
Now we will attach the ground drop wires. Take one drop wire of each length that we made in Step 1, and insert
them into the GND holes in the PCB, hooking them on to the horizontal ground wires as shown below. The
wires go from the shortest on the left to the tallest on the right (there are also labels “lowest” and “highest”
written on the PCB at the two extremes.)
Figure 69: Hanging ground drop wires.
