1. CAPSCREW
2. DRIVE AXLE SHAFT
3. LOCKNUT
4. BEARING LOCKWASHER
5. WASHER
6. HUB/BRAKE ASSEMBLY
7. HUB BOLT
8. ROLLER BEARING
9. OUTER SEAL
10. INNER BEARING
11. INNER OIL SEAL
12. WEAR SLEEVE
13. BRAKE ASSEMBLY
14. LEFT BRAKE LINE
15. DRIVE AXLE MOUNTING CAPSCREW
16. DRIVE AXLE MOUNTING NUT
17. DIFFERENTIAL COVER
18. RIGHT BRAKE LINE
19. DRIVE AXLE CENTER SECTION UNIVERSAL
JOINT
20. UNIVERSAL JOINT
21. DUST COVER
22. INPUT SHAFT (YOKE)
23. BRAKE MANIFOLD
24. HANGER ASSEMBLY

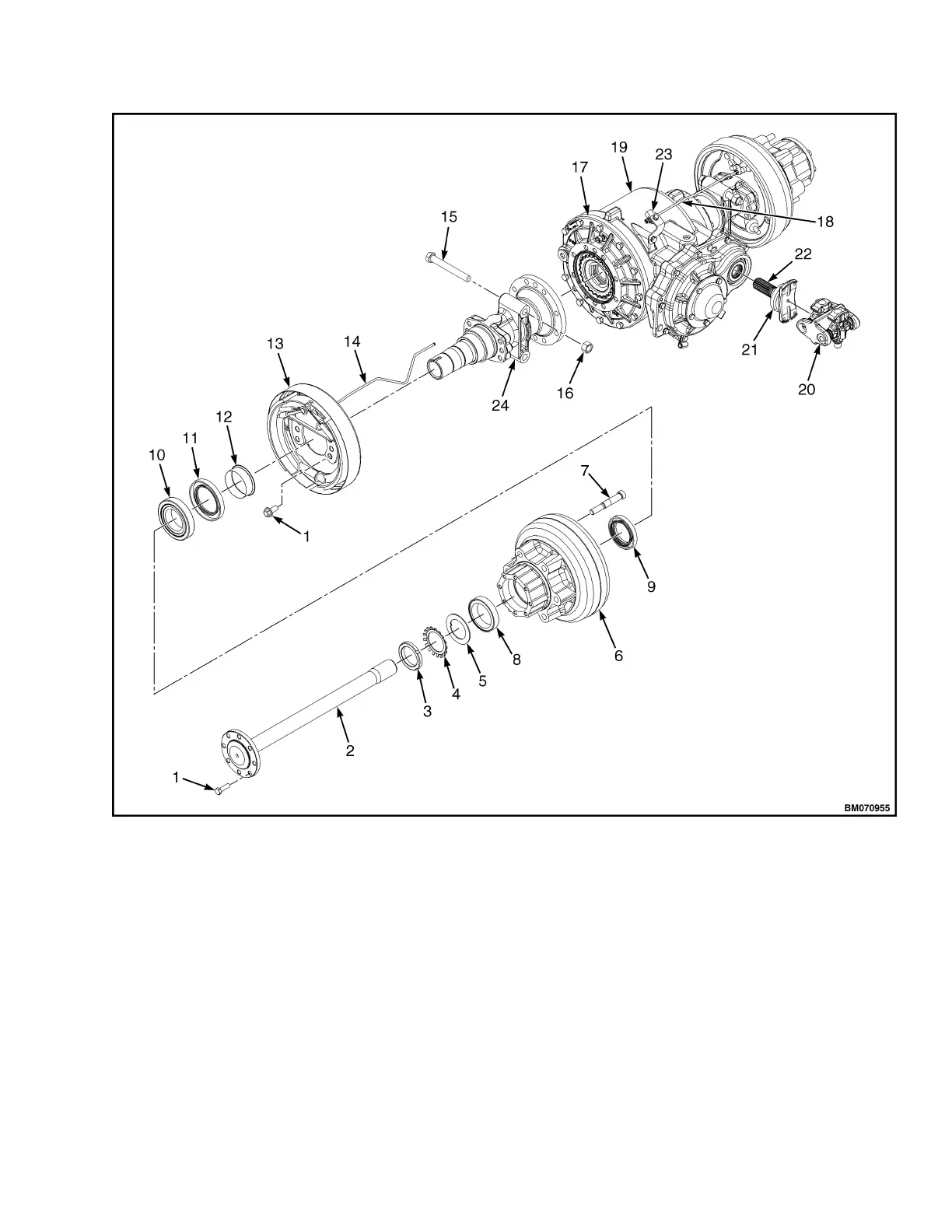

Figure 3. Drive Axle Components, Lift Truck Models S50CT (B267) and H2.0-2.5CT (H50CT) (B274)
1800 SRM 1743 Service Brakes Repair (Dry Brake)
3
