Hyundai 15LC-7M User Manual

8-2

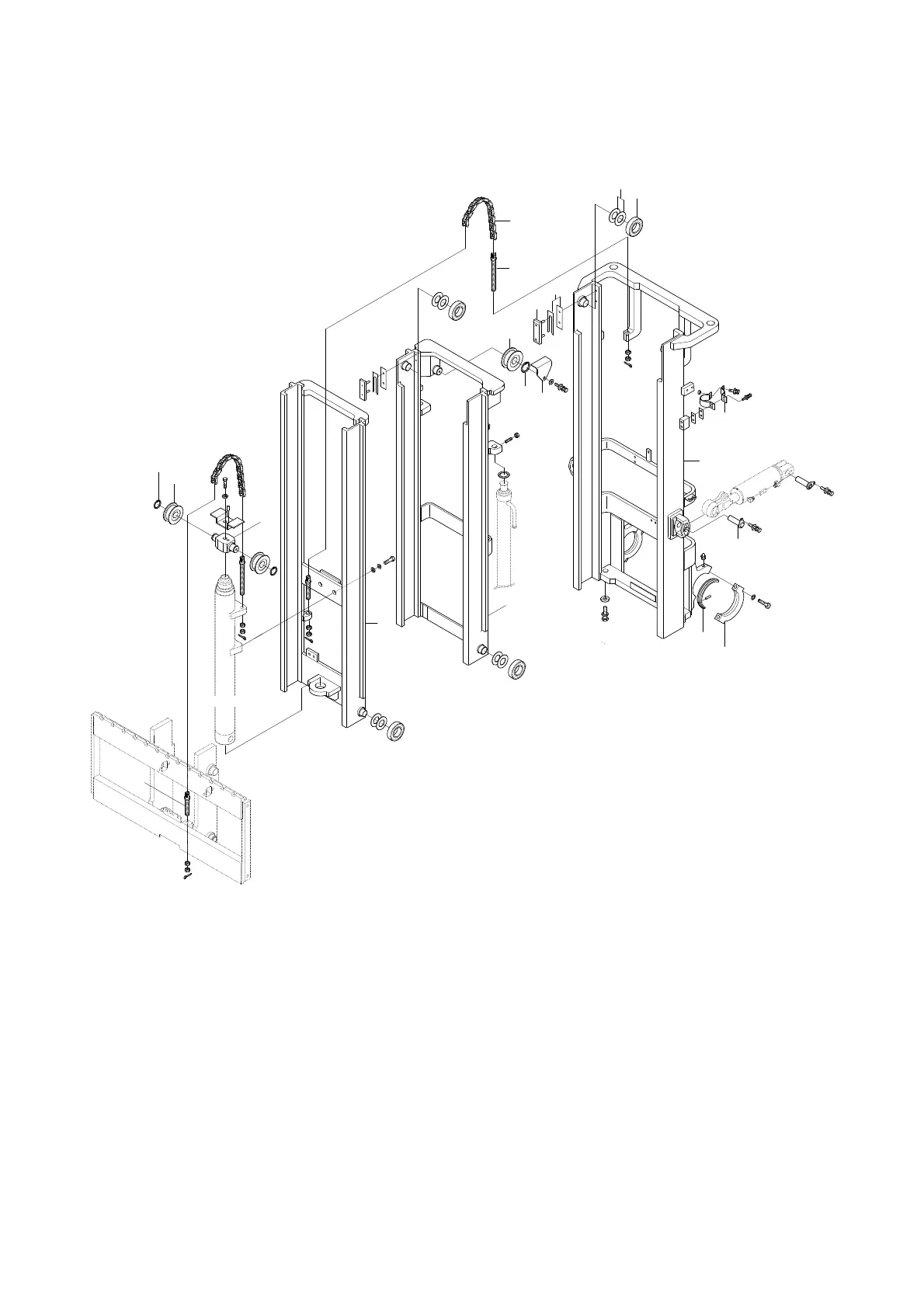

2. 3 STAGE MAST(TF MAST)
2
13
3
4
16
9
10
7
6
1
5
14
15
8
12
11
8
11
17
TILT CYLINDER
LIFT CYLINDER
FREE LIFT CYLINDER
CARRIAGE
10
15L7MS02
1 Outer mast
2 Middle mast
3 Inner mast
4 Roller
5 Tilt cylinder pin
6 Mast support cap
7 Bushing
8 Chain sheave
9 Chain
10 Anchor bolt
11 Retaining ring
12 Chain guard
13 Clamp
14 Back up liner
15 Shim(0.5, 0.1
To n )
16 Shim(0.5, 0.1
To n )
17 Sheave bracket
