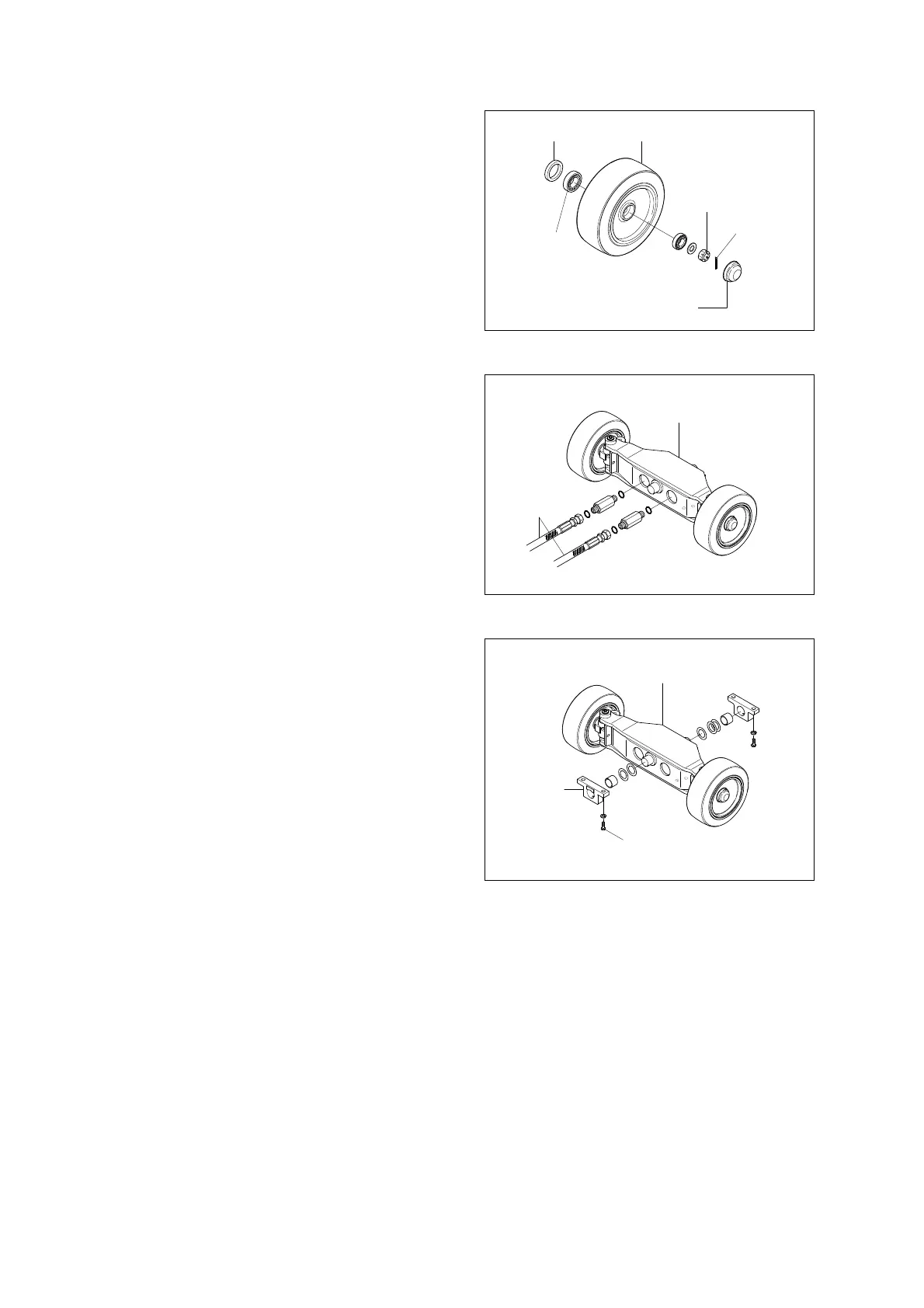

Rear wheel
Remove cap, split pin and castle nut and
then carefully take out the tire assembly.
(2)
15LC7MRE28
Hose
Drain hydraulic oil in the hoses and
cylinder before removing them.
Loosen connector and then disconnect
the hoses.
(3)
15LC7MRE29
Mounting bolt
Put a block under the steering axle,
support on a truck, and raise the frame
with a crane. Remove the mounting bolts
installing to the frame, and pull out to the
rear.
There are shims between the support and
steering axle to prevent play.
