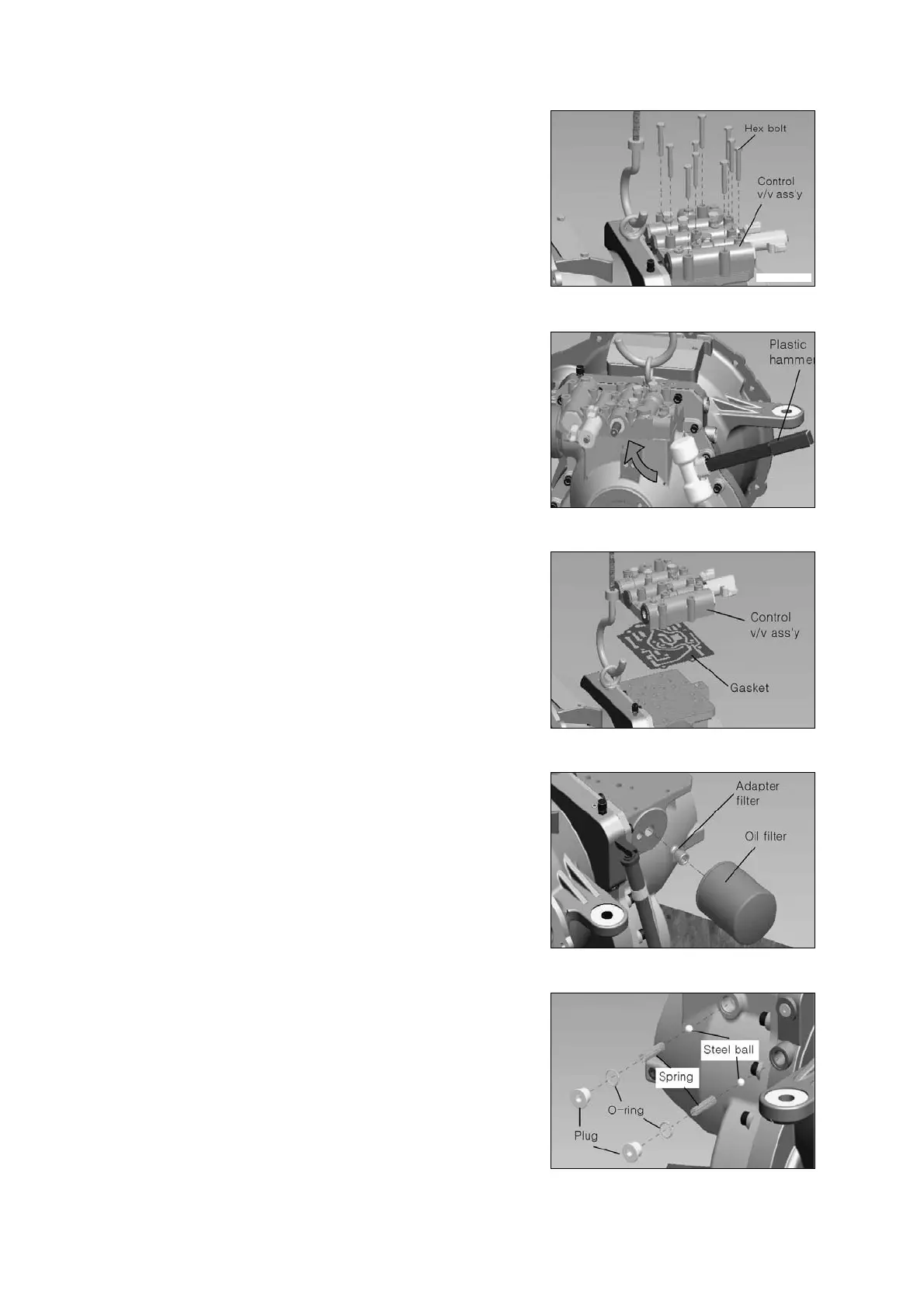

Remove the part slowly with hit the end side softly.
Using a plastic hammer .
Do not hit steel parts with a steel hammer.
Pieces of a part can break off and cause serious
personal injury.
②
※
Remove the control valve assy, and then remove
the gasket.
③
Remove the oil filter, and then remove the filter
adapter.
15L7ATM014
Remove the (T/C in relief, cooler relief) plug, and
then remove the spring, steel ball.
Next remove the O-ring at relief plug.
Removal the control valve sub assy.
Remove the hexagon bolt (M8×1.25P×60L).
(7)
①
(8)
(9)
