5-2

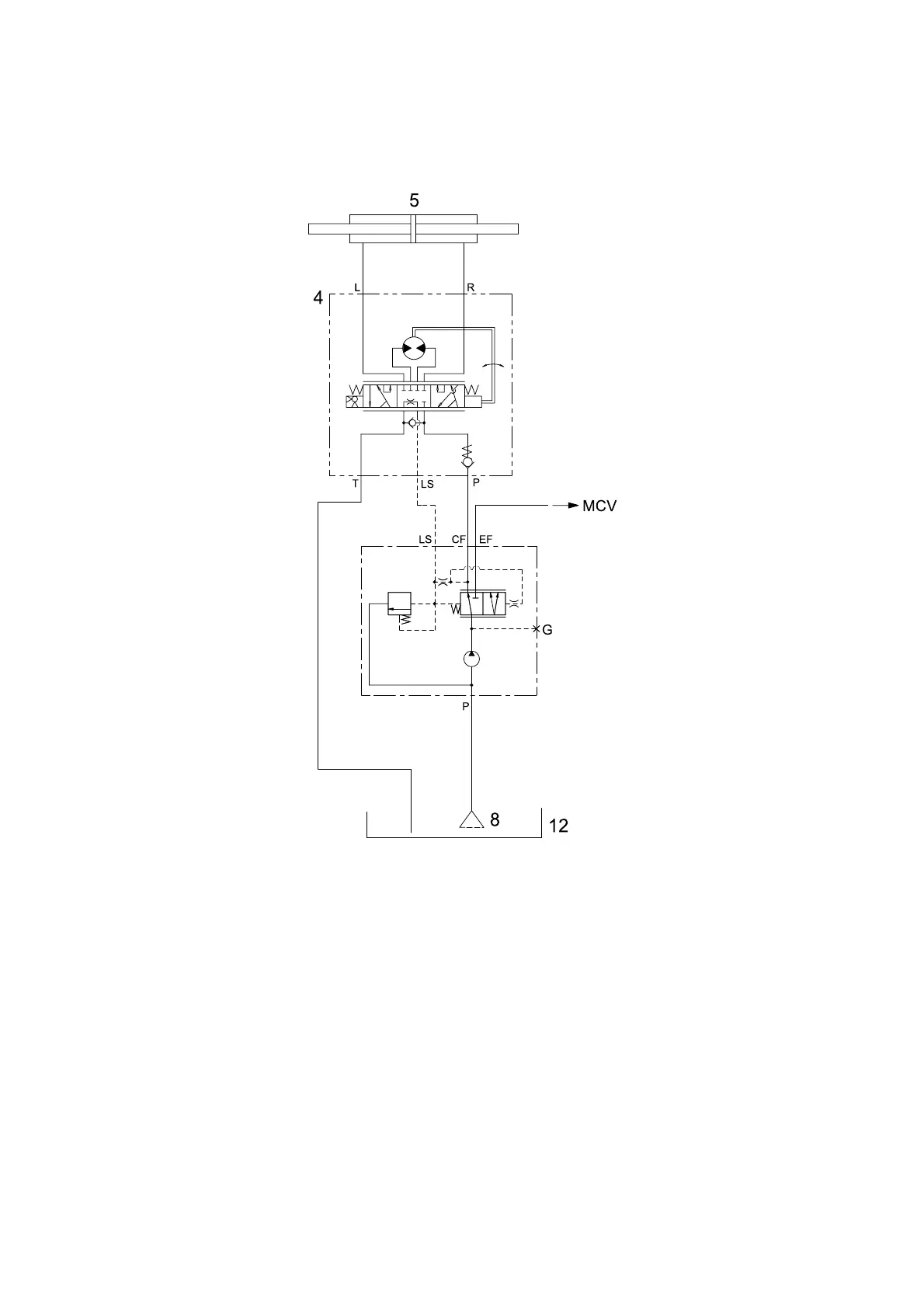

2. HYDRAULIC CIRCUIT
1
15L7MSS02
1 Hydraulic gear pump with priority valve
4 Steering unit
5 Steering cylinder
8 Suction strainer
12 Hydraulic tank
