6-27
PUMP105
PUMP106

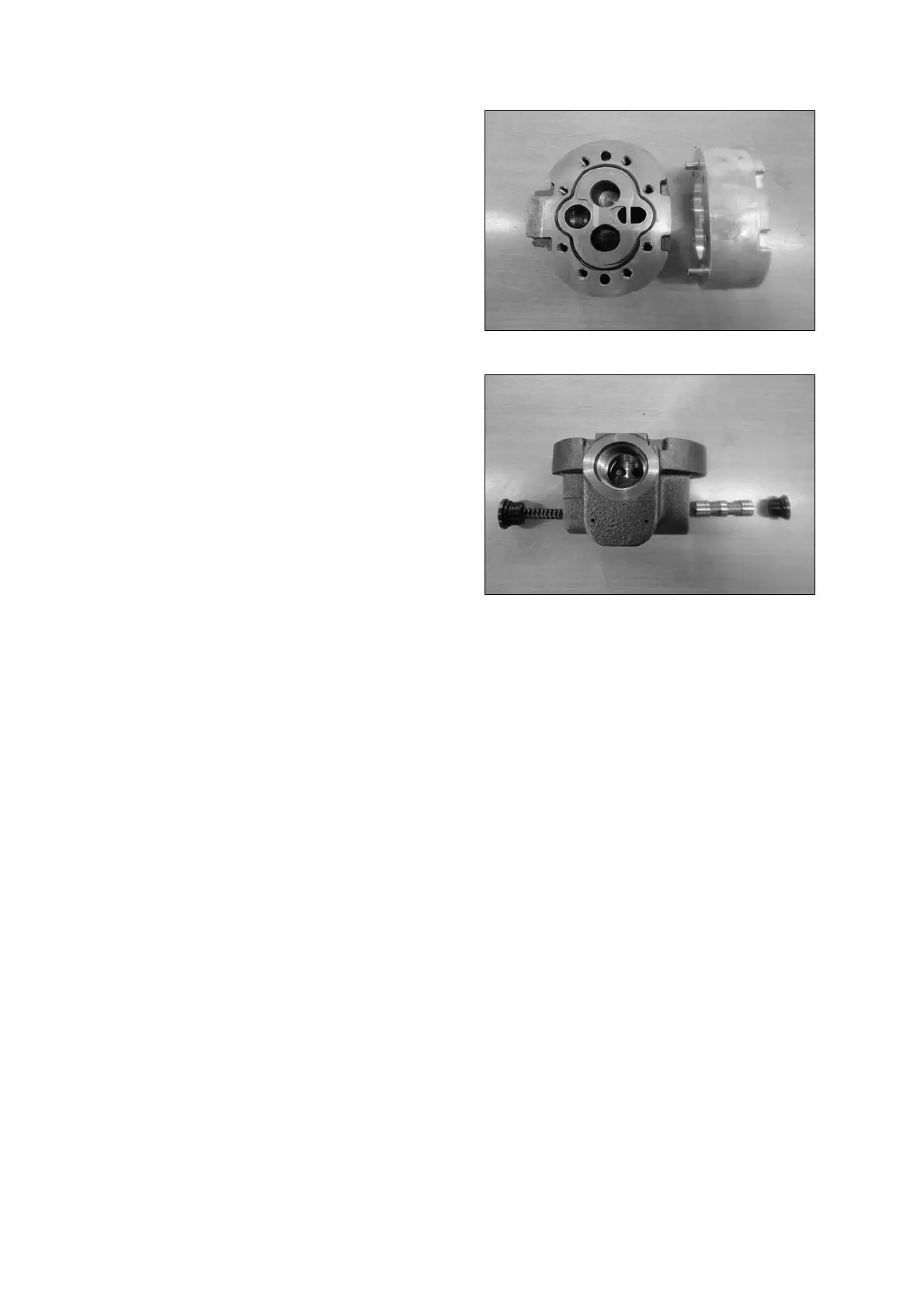

BODY AND REAR COVER
Loosen the vice and remove body and
bronze side plate from rear cover.
Remove O-ring from rear cover.
Disassemble pin from body.
(1)
(2)
(3)
4)
PRIORITY VALVE
Loosen the plug at the side of drive gear,
be careful not to bounce out spring.
Take out spring.
Loosen plug opposite side and draw out
spool carefully.
(1)
(2)
(3)
5)
RELIEF VALVE
Do not disassemble relief valve when
pressure setting and caulking is not
possible.
Loosen adjust screw, be careful not to
bounce out spring.
Take out spring and draw out poppet.
Loosen plug for port of gage mounting.
Remove O-ring from plug and adjust
screw.
ö
(1)
(2)
(3)
(4)
6)
