Maintenance
62
7

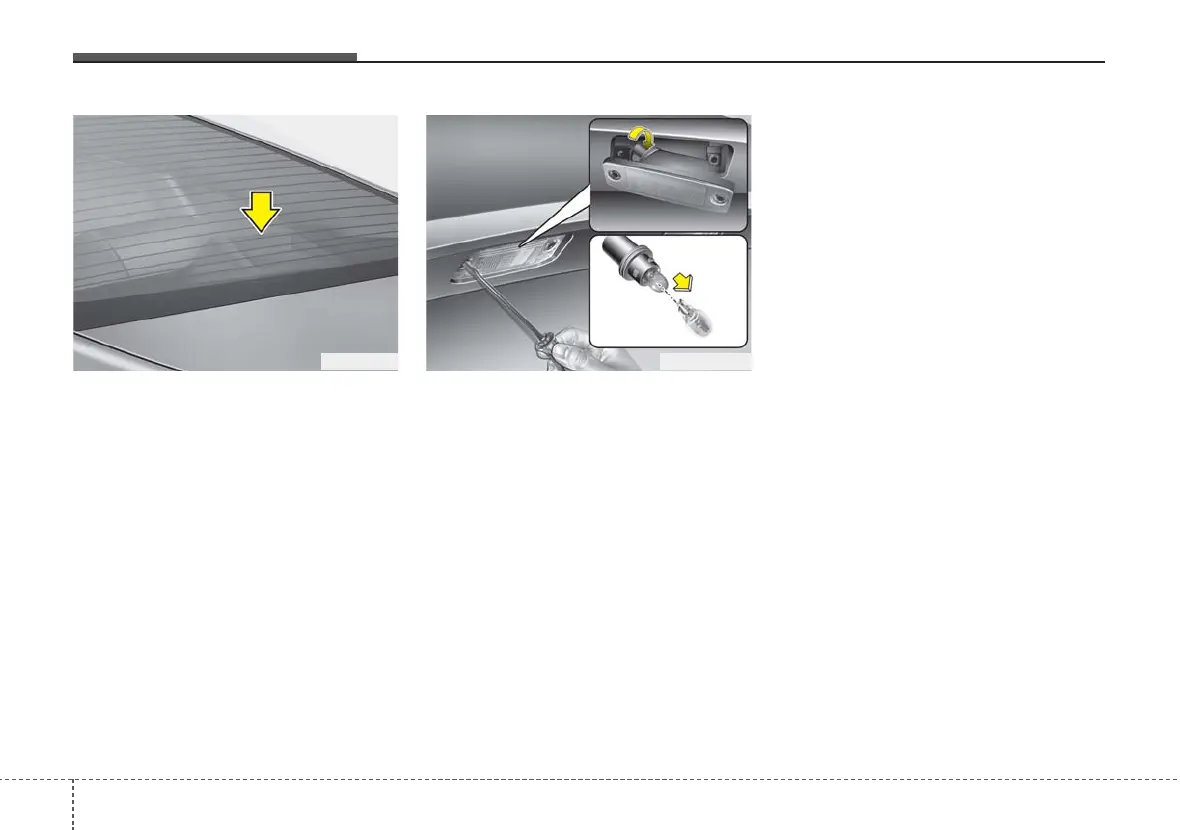

High mounted stop light
replacement
If the light is not operating, ha
ve the v
ehi-
cle check
ed by an authorized HYUND
AI
dealer
.
License plate light bulb replace-
ment
1.
Loosen the retaining screws with a
philips head screwdriv
er
.
2.
Remov
e the soket by turning it
connterclockwise
.
3.
Remov
e the bulb b
y pulling it straight
out.
4.
Install a new bulb
.
5.
Reinstall the bulb assemb
ly securely
with the retaining screws
.
O
YF079037L
O
YF079036
YF HMA 7.QXP 11/25/2009 1:53 PM Page 62
