Hyundai 20L-7 User Manual

4-11

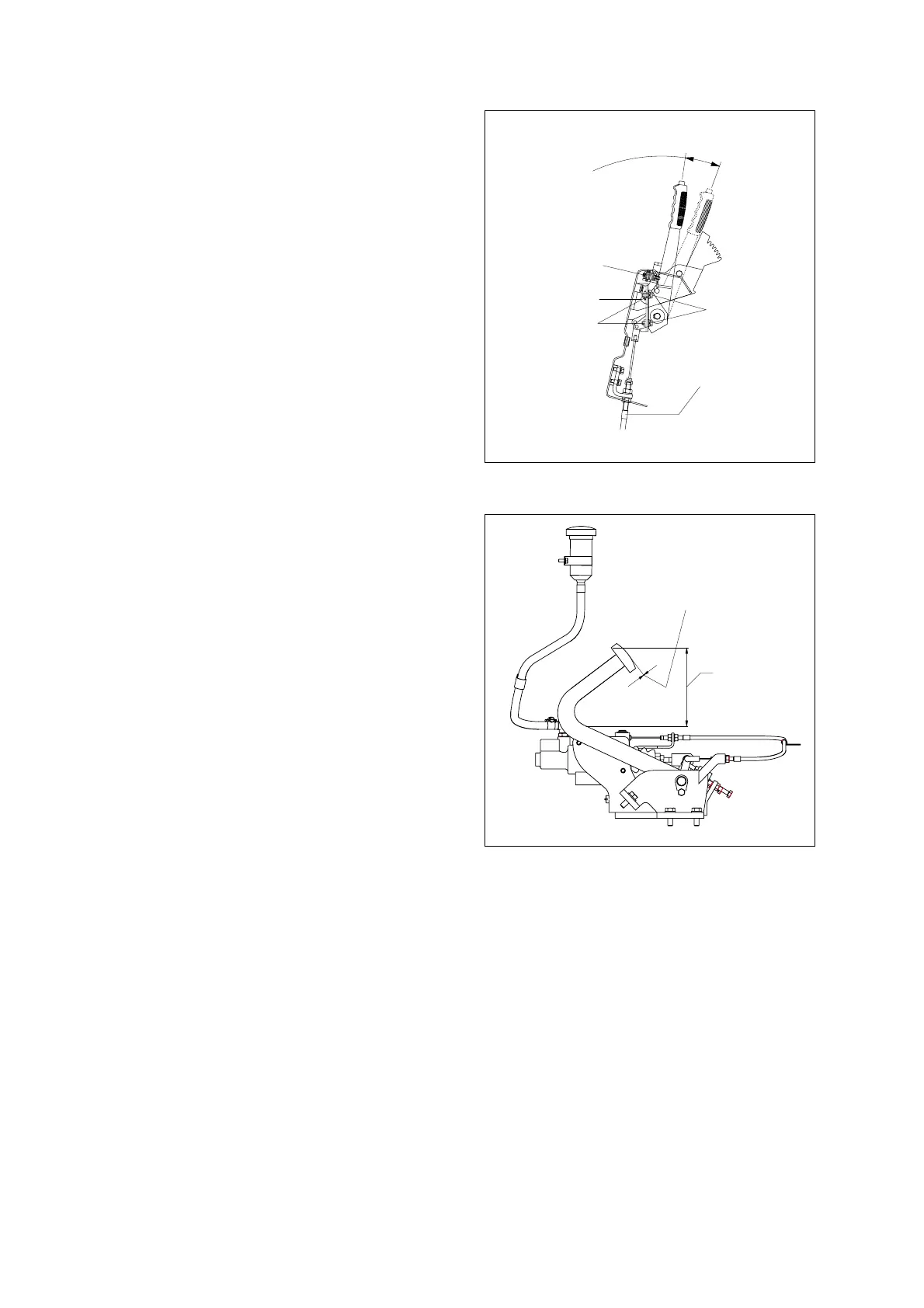

INCHING PEDAL
Pedal height from floor plate
Adjust with stopper bolt.
· Pedal height : 160 mm (6.3 in )
Adjust bolt so that brake pedal interconn-
ects with inching pedal at inching pedal
stroke 0 mm .
22)
(1)
(2)
Pedal height
160mm
Floor plate
Inching stroke
0mm
20L7BS11
Lever stroke 12.1
o
Rachet
Parking cable
Micro switch
Nut
20D7BS08
Micro switch for parking brake (if equipped)
After assembling parking brake and
parking cable, put the parking brake lever
released.
Loosen the nut for parking brake plate to
play up and down.
Move up the plate so that the stopper can
be contacted with the pin and then
reassemble nut.
· Micro switch stroke when parking
brake is applied : 2~3 mm (0.08 ~ 0.1 in )
((3)




Hyundai 20L-7 Specifications

General

Model	20L-7
Load Capacity	2000 kg
Rated Load	2000 kg
Load Center Distance	500 mm
Transmission	Automatic
Tire Type	Pneumatic
Overall Width	1150 mm
Lift Speed (laden / unladen)	0.5 / 0.6 m/s
